Large Commercial Waterproof Carbon Steel T Solar Carport Structure

Product Overview

As a premier manufacturer and global supplier of renewable energy infrastructure, we present the Large Commercial Waterproof Carbon Steel T Solar Carport Structure. Engineered specifically for expansive commercial parking facilities, this system seamlessly merges heavy-duty structural engineering with advanced photovoltaic integration.

• High-yield commercial energy generation capabilities
• Premium hot-dip galvanized steel framework for ultimate longevity
• Integrated seamless waterproof drainage architecture
• Engineered for maximum spatial efficiency and vehicle maneuverability

Product Description

Transforming expansive parking facilities into high-yielding energy assets requires infrastructure that is as resilient as it is visually commanding. This large-scale solar carport structure is forged from premium high-strength carbon steel, delivering a reassuringly solid metallic resonance that speaks to its uncompromising structural integrity. The surface features a meticulously applied hot-dip galvanized or zinc-aluminum-magnesium coating, offering a smooth, industrial-grade finish that actively repels corrosive elements, salt spray, and relentless UV exposure. When standing beneath the canopy, the sheer scale of the T-shape single-column design creates an immediate sense of open, unobstructed space, completely eliminating the claustrophobic feel of traditional multi-leg carports.

Beyond its imposing physical presence, the architecture is engineered to solve critical operational challenges for large-scale facilities. The seamless integration of photovoltaic panels with a sophisticated concealed drainage network ensures that rain flows away silently and efficiently, keeping vehicles and pedestrians perfectly dry. The robust framework confidently shoulders heavy snow accumulations and withstands severe wind gusts, ensuring uninterrupted protection and energy generation. By integrating this advanced structural solution, commercial property developers and energy project operators can effortlessly upgrade their infrastructure, achieving a harmonious balance between architectural elegance, environmental responsibility, and long-term financial performance.

Product Specifications

Key Features & Highlights

Deploying a massive solar canopy system demands more than just basic structural support; it requires intelligent engineering that actively enhances the operational flow of your facility. This carport framework is meticulously designed to deliver exceptional value through innovative mechanical design and superior material science. The architecture not only supports heavy photovoltaic arrays but also elevates the user experience for every visitor parking beneath it.

• Unobstructed Maneuverability: The single-column foundation dramatically reduces ground-level obstacles, allowing large commercial vehicles, SUVs, and standard cars to navigate, park, and open doors without the risk of collision.
• All-Weather Sanctuary: Integrated BIPV technology forms an impenetrable shield against torrential rain and blistering sun, protecting vehicle paintwork and ensuring a premium experience for facility patrons.
• Accelerated Deployment: Pre-engineered modular components slide and lock into place with precision, utilizing high-tensile bolting systems that eliminate the need for hazardous and time-consuming field welding.
• Aesthetic Excellence: The sleek, industrial profile of the treated carbon steel blends seamlessly with modern corporate campuses, retail centers, and municipal architectures, projecting a forward-thinking, eco-conscious corporate image.

Comprehensive System Advantages

Structural Strength & Material Durability

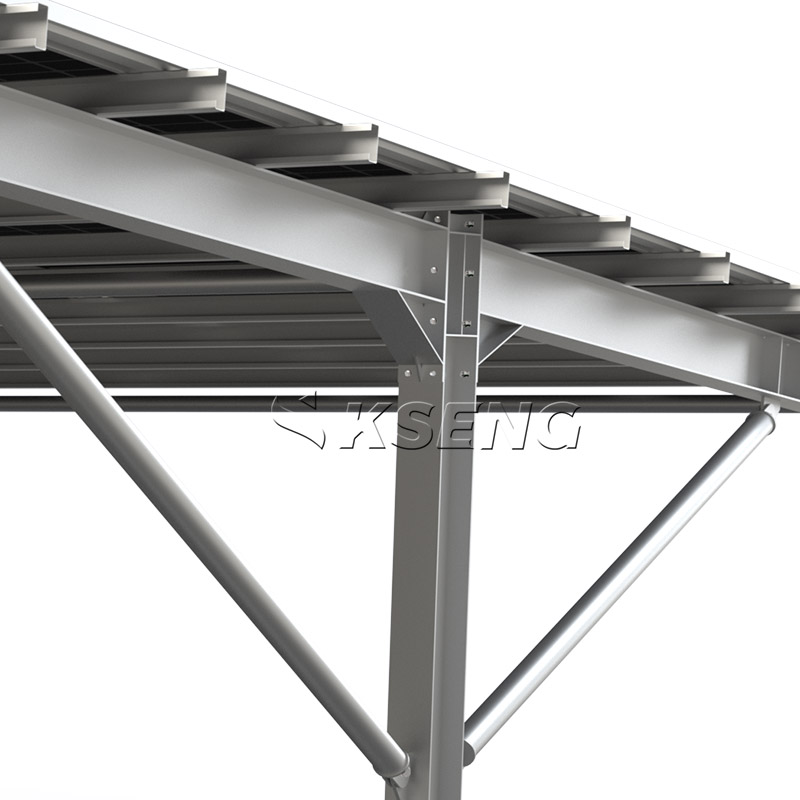

Constructing a reliable energy canopy requires a foundation built on uncompromising material strength. By utilizing premium high-strength carbon steel, specifically Q355B, this framework delivers extraordinary load-bearing capabilities. The tactile, heavy-duty finish of the Hot-Dip Galvanized (HDG) or Zinc-Aluminum-Magnesium (ZAM) coating provides an impenetrable barrier against oxidation.

• Engineered to withstand hurricane-force winds up to 60 m/s, ensuring absolute stability in coastal or extreme weather regions.
• Capable of supporting massive snow loads up to 3.6 KN/m², preventing structural deformation during harsh, freezing winters.
• Advanced anti-corrosive coatings extend the operational lifespan to well over 25 years, minimizing maintenance interventions.
• Provides a rock-solid foundation that protects high-value photovoltaic assets from structural fatigue and micro-cracking.

Advanced Waterproof & Drainage System

A premium commercial canopy must do more than generate power; it must offer absolute protection from the elements. This structure incorporates a sophisticated Building Integrated Photovoltaics (BIPV) waterproof standard, transforming the solar array into a seamless, watertight roof.

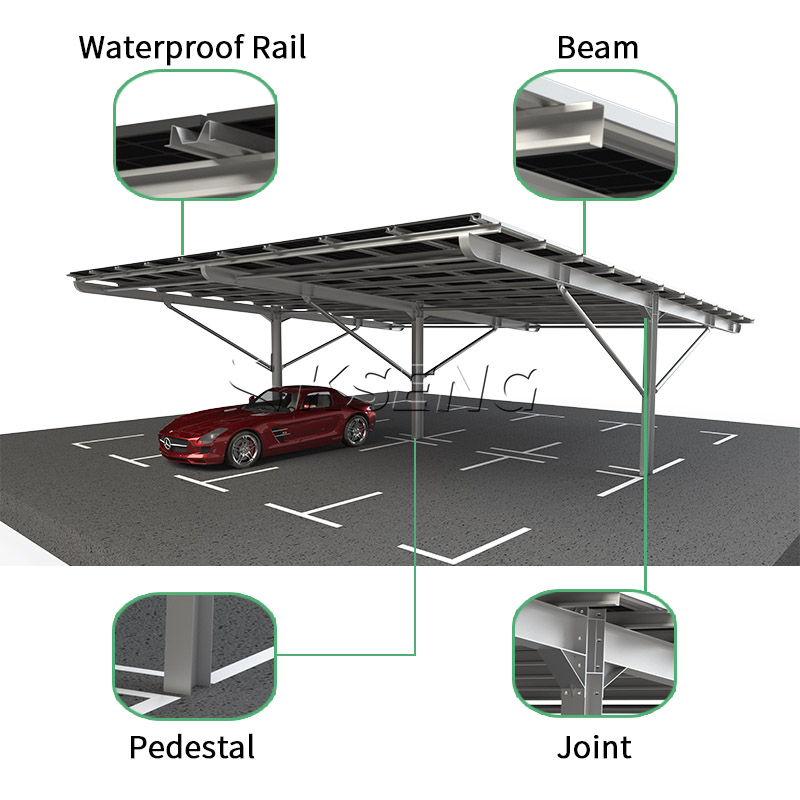

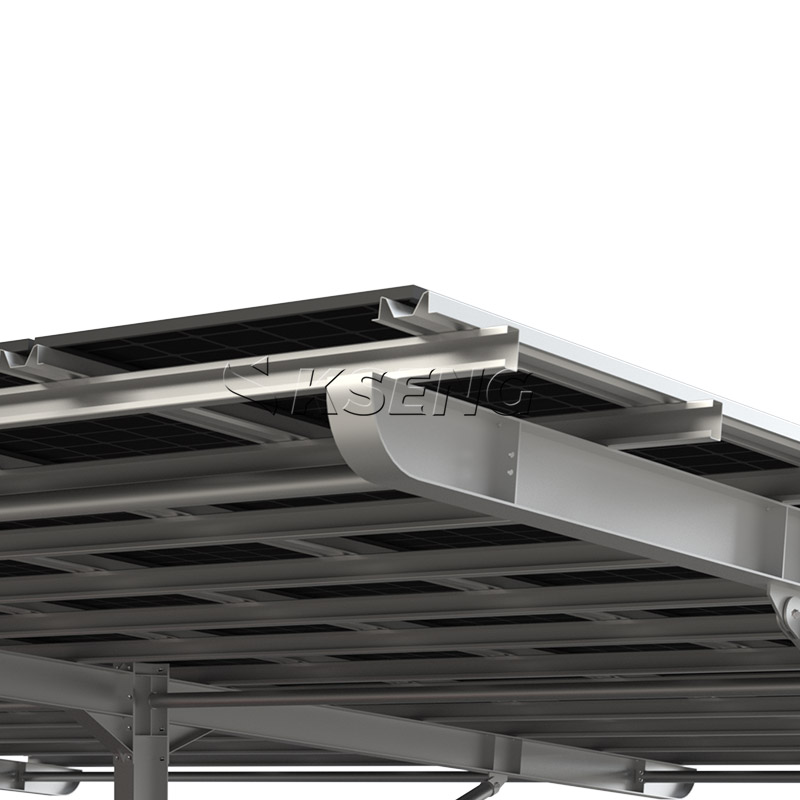

• Features precision-engineered M-type and U-type water guide channels that capture precipitation instantly upon contact.
• Concealed downspouts route water silently through the internal structure, eliminating unsightly exterior pipes and ground-level splashing.
• Delivers a 100% leak-proof barrier, ensuring the parking area below remains completely dry even during severe torrential downpours.
• Protects commuters and vehicles from harsh weather, significantly upgrading the service quality and safety of your facility.

T-Shape Design & Space Optimization

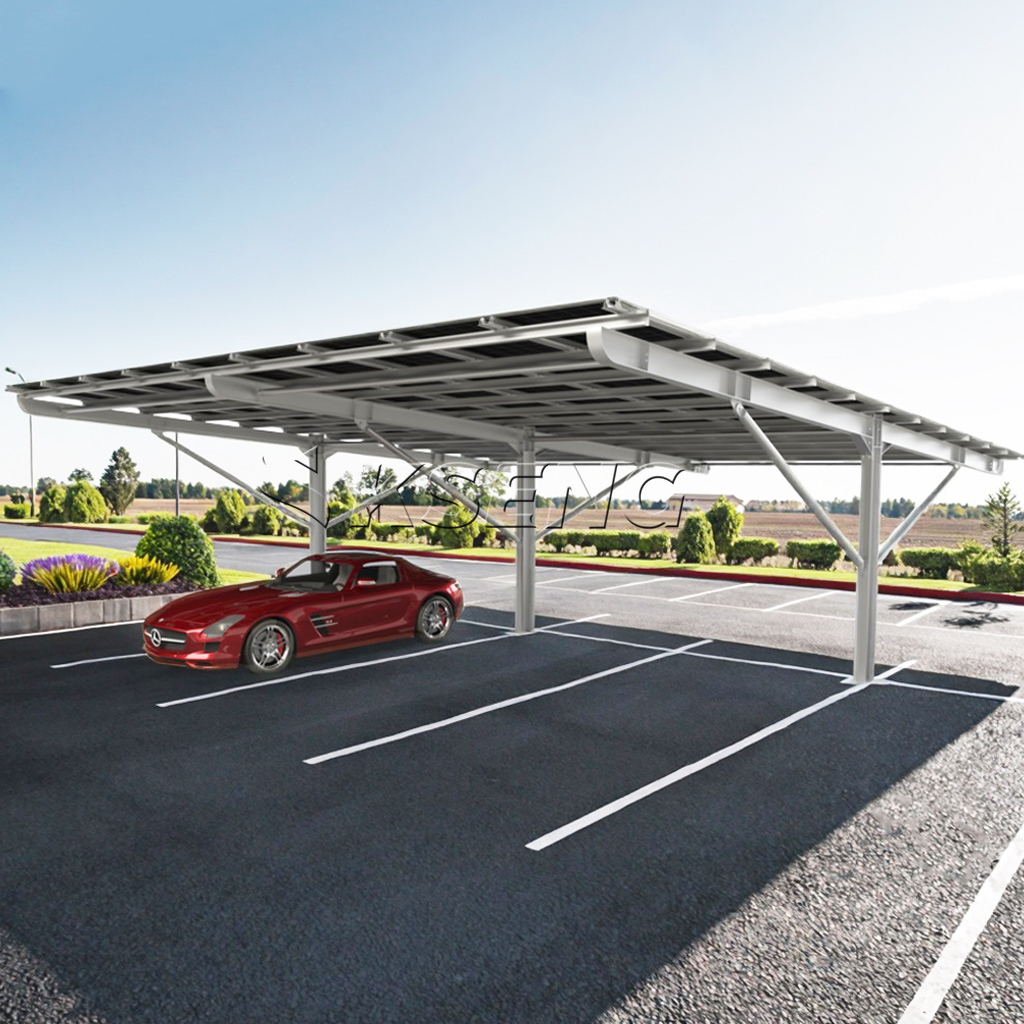

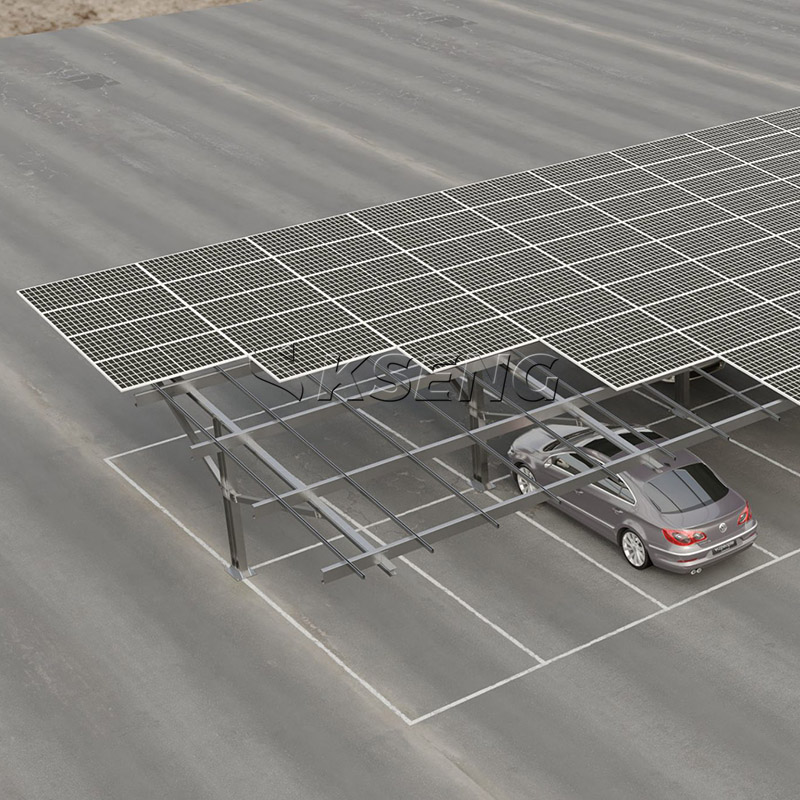

Spatial efficiency is paramount in high-traffic commercial environments. The innovative T-shape, single-column double-cantilever architecture revolutionizes traditional parking layouts by drastically reducing the physical footprint of the support structure.

• Supports massive span lengths ranging from 8 to 12 meters, covering multiple parking bays with a single central column.
• Eliminates edge columns entirely, removing the risk of doors scratching against steel posts during vehicle entry and exit.
• Maximizes the maneuverability for oversized vehicles, making it exceptionally friendly for commercial delivery trucks and luxury SUVs.
• Optimizes the total number of parking spots available, ensuring no valuable real estate is wasted on excessive structural supports.

Commercial ROI & Versatility

Transforming dormant asphalt into a high-performance energy asset is a strategic financial maneuver. This solar carport framework acts as the critical backbone for large-scale energy generation, directly offsetting grid power consumption and driving substantial financial returns.

• Drastically reduces operational electricity costs by facilitating massive solar energy harvesting directly on-site.
• Flawlessly integrates with Electric Vehicle (EV) charging stations and intelligent LED lighting networks for a modernized facility.
• Accelerates corporate Environmental, Social, and Governance (ESG) initiatives, projecting a powerful commitment to sustainability.
• Turns a standard, cost-draining parking lot into a multi-functional, revenue-generating hub with a rapid return on investment.

Modular & Efficient Installation

Time is a critical resource in large-scale infrastructure projects. To mitigate prolonged site disruptions, this system is engineered around a highly refined modular concept, where components are precision-cut and pre-assembled in our manufacturing facility before shipping.

• Utilizes a 100% bolted connection system, completely eliminating the need for hot works, sparks, or complex on-site welding.
• Reduces overall installation time by up to 40%, allowing commercial facilities to resume normal parking operations rapidly.
• Significantly lowers intensive labor costs and minimizes the requirement for highly specialized heavy lifting machinery.
• Ensures consistent assembly quality, as the modular design leaves no room for manual fabrication errors during field deployment.

High Customization & Compatibility

No two commercial sites are identical, which is why absolute adaptability is engineered into the core of this structure. From challenging topographies to specific solar yield requirements, the framework can be tailored to meet exact project specifications.

• Accommodates both single-row and double-row parking configurations to match existing lot layouts flawlessly without redesigning traffic flow.
• Features an adjustable tilt angle from 5° to 35°, allowing engineers to perfectly calibrate the array for maximum solar irradiance.
• Employs a versatile clamping system that securely grips almost all standard framed or frameless photovoltaic modules currently on the market.
• Offers deep engineering customization based on localized geotechnical reports and specific regional wind or snow load mandates.

Quality Control & International Certifications

Procuring infrastructure for large-scale developments requires uncompromising proof of reliability. Every structural component undergoes rigorous metallurgical and mechanical testing to ensure absolute compliance with global safety and architectural standards.

• Fully certified under stringent international frameworks including ISO9001, CE, AS/NZS1170, and DIN 1055.
• Backed by comprehensive structural calculation reports and detailed engineering blueprints to expedite municipal permit approvals.
• Supported by a solid 10-year warranty, providing absolute peace of mind for project stakeholders, developers, and investors.
• Manufactured under strict quality assurance protocols, ensuring every steel beam and aluminum clamp meets exact microscopic tolerances.

Why Choose Us

Selecting the right manufacturing partner for your renewable infrastructure is as critical as the technology itself. We operate at the intersection of heavy-duty metallurgy and advanced solar engineering, providing our partners with solutions that are built to outlast expectations. Our commitment extends far beyond the production line; we deliver comprehensive support designed to ensure your project's total success from conception to final commissioning.

• Direct-from-Source Economics: As a primary manufacturer and global supplier, we eliminate intermediary markups, delivering premium structural assets at highly competitive procurement rates.
• Dedicated Engineering Support: Our in-house team of structural engineers provides bespoke CAD designs, load calculations, and technical guidance tailored to your specific site topography.
• Global Logistics Mastery: We possess the capacity and expertise to manage massive volume shipments, ensuring your modular components arrive on schedule, regardless of your geographic location.
• Unwavering Quality Assurance: Every batch of carbon steel and aluminum alloy is subjected to rigorous stress and corrosion testing before leaving our facility, guaranteeing zero defects upon arrival.

Frequently Asked Questions (FAQ)

To assist in your project planning and procurement process, we have compiled answers to the most critical technical inquiries regarding our solar carport structures.

• Q: How does the Zinc-Aluminum-Magnesium (ZAM) coating compare to traditional hot-dip galvanizing?
  A: ZAM coating offers significantly superior corrosion resistance, often outperforming traditional hot-dip galvanizing by up to three times in highly corrosive environments. It features a unique self-healing property where the coating naturally migrates to cover cut edges or minor scratches, ensuring the underlying carbon steel remains entirely protected against rust and structural degradation.
• Q: Can the T-shape structure accommodate bifacial solar panels effectively?
  A: Absolutely. The structural framework is optimized to minimize rear-side shading. The elevated clearance and strategically placed purlins allow maximum light albedo (reflected light) from the pavement to reach the underside of bifacial modules, thereby boosting the overall energy yield of your commercial installation.
• Q: What kind of foundation is required for the single-column double cantilever design?
  A: The system typically utilizes reinforced concrete foundations, such as cast-in-place concrete piers or precast concrete bases. The exact depth and dimensions of the foundation are determined based on a thorough geotechnical analysis of your site's soil conditions and the specific wind and snow load requirements of your region.
• Q: Is the integrated BIPV waterproof system difficult to maintain over its lifespan?
  A: Not at all. The waterproof system is designed with passive maintenance in mind. The M-type and U-type guide channels have smooth, unobstructed pathways that allow debris and leaves to be naturally washed away by rainwater. Occasional visual inspections and basic clearing of the concealed downspouts are generally all that is required to maintain 100% waterproof efficiency.
• Q: How do you handle the logistics and shipping of such large carbon steel components?
  A: Our modular design strategy plays a crucial role in logistics. The massive span lengths are engineered into standardized, transportable segments that pack highly efficiently into standard shipping containers. This minimizes wasted cargo space, significantly reduces international freight costs, and ensures the components arrive at your facility in pristine condition, ready for immediate assembly.
