Overview
Transform underutilized parking areas into valuable, energy-generating assets with the Kseng Carbon Steel Single Cantilever Waterproof Solar Carport. This professional-grade mounting system is designed from the ground up to offer unparalleled structural integrity, weather protection, and installation efficiency. By combining a heavy-duty carbon steel frame with a meticulously engineered waterproofing solution, we deliver a carport that not only supports your PV array but also provides guaranteed dry, shaded parking – a truly dual-purpose investment.
Features

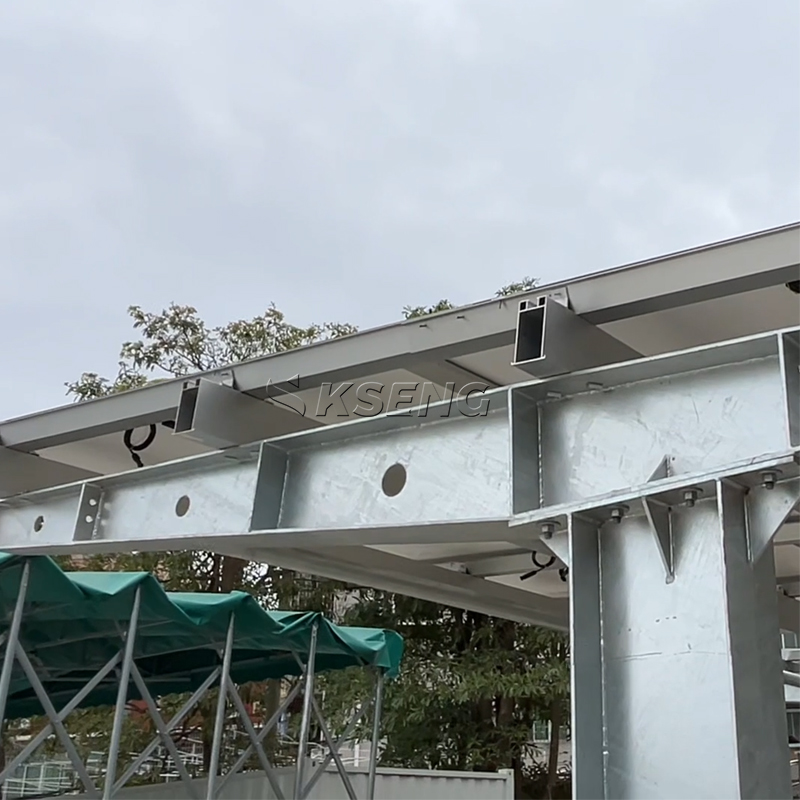

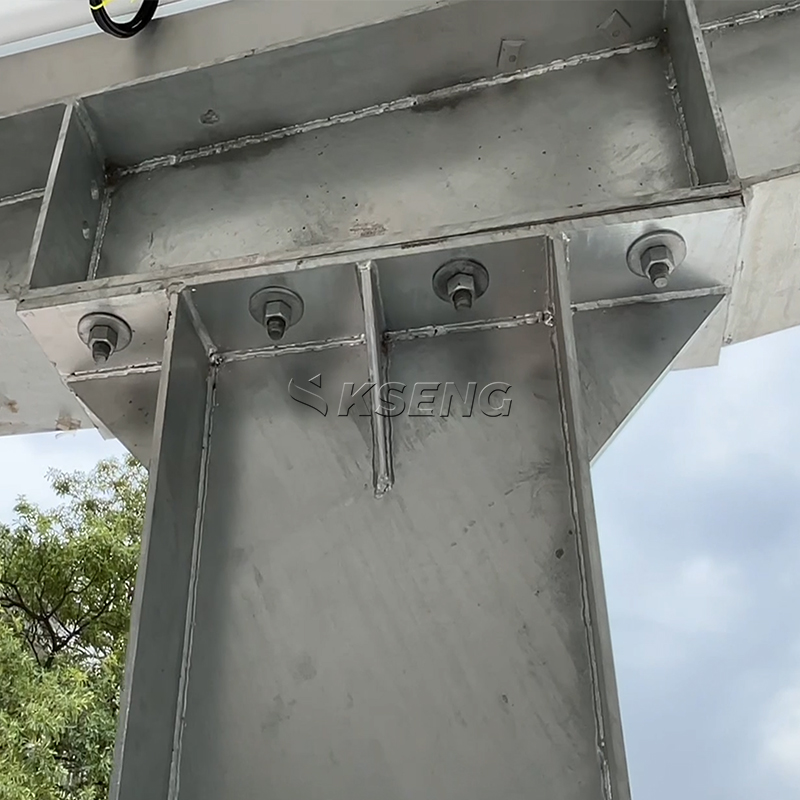

*Robust Carbon Steel Main Structure: Built with high-strength carbon steel and protected by a hot-dip galvanized coating, the primary framework offers exceptional load-bearing capacity and corrosion resistance, ensuring decades of reliable service in diverse climates.

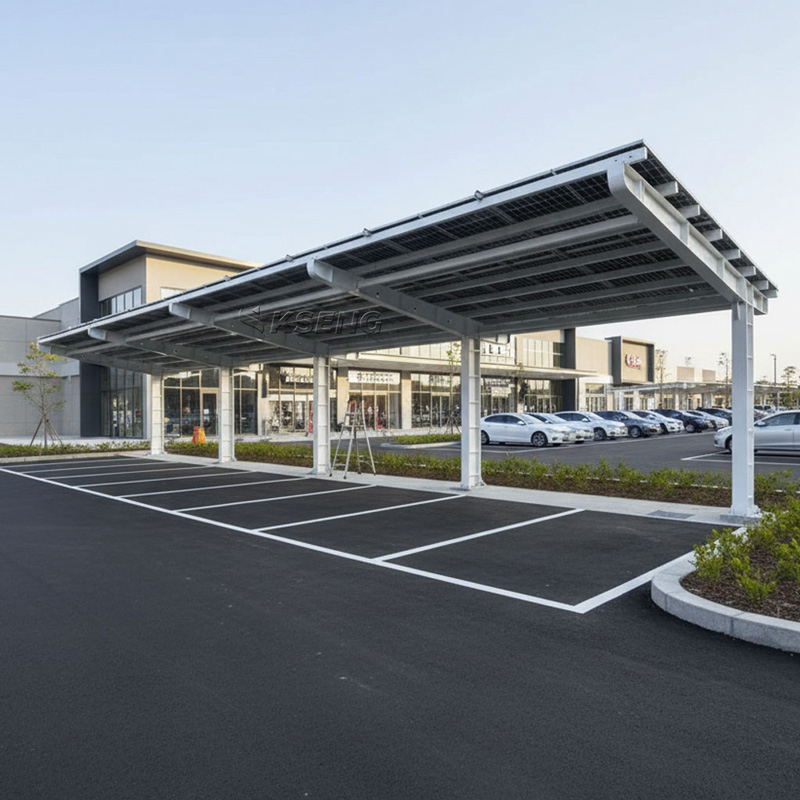

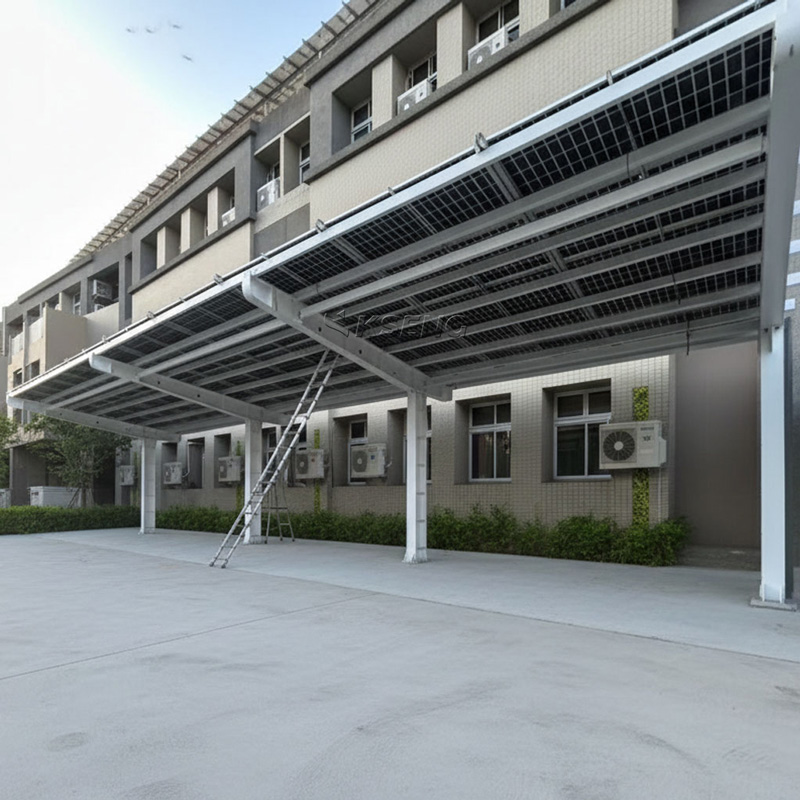

*Space-Efficient Single Cantilever Design: The innovative single-side support design creates vast, column-free space beneath the canopy. This maximizes parking capacity, allows for easy movement of all vehicle types, and simplifies site planning.

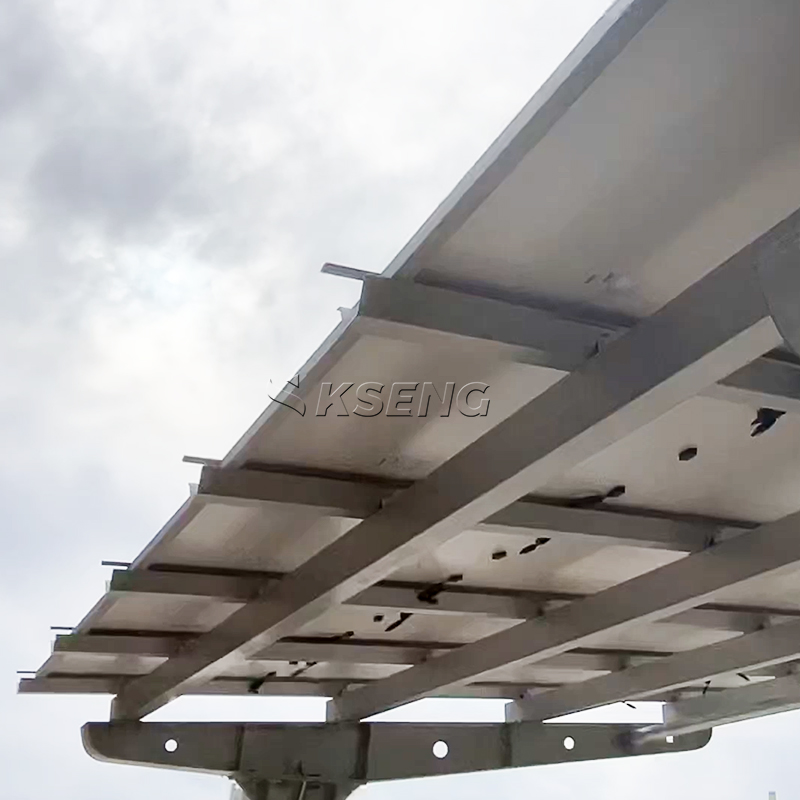

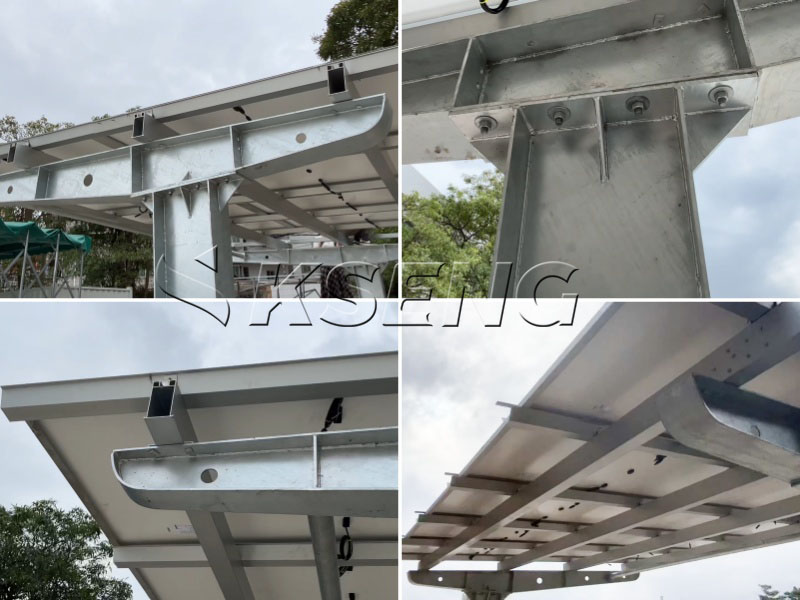

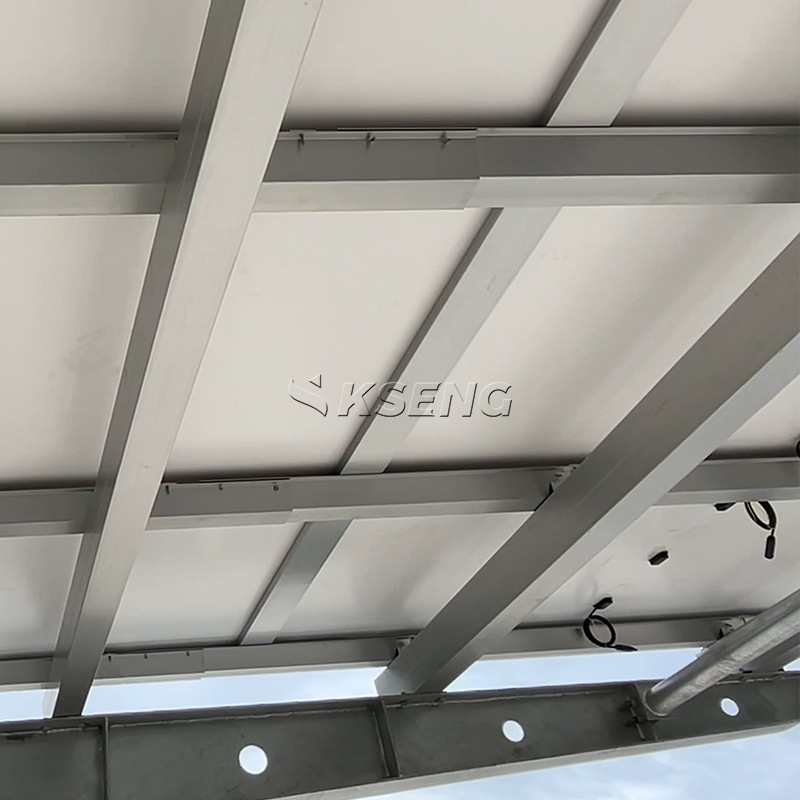

*Patented Waterproof & Drainage System: This is where Kseng redefines reliability. We employ a dedicated aluminum rail system installed directly beneath the solar panels. These rails are engineered with integrated channels that actively capture and redirect rainwater and condensation, preventing any drip-through onto the sheltered area below. This proactive approach eliminates the common leakage issues of standard carports.
*Pre-Engineered for Fast Installation: Major components are factory-pre-assembled and precision-drilled. The modular design and clear installation manuals significantly reduce on-site labor time and costs, allowing for faster project commissioning and ROI.
Key Benefits
*Guaranteed Dry Parking: The advanced aluminum drainage rail system ensures a 100% dry space underneath, protecting vehicles and assets, and enhancing user satisfaction.
*Maximized Durability & ROI: The hot-dip galvanized steel construction requires minimal maintenance and stands up to harsh environments, securing your long-term investment.
*Optimized Land Use: The cantilever design provides maximum shaded area with minimal ground obstruction, perfect for high-traffic commercial lots.
*Streamlined Project Timeline: Our pre-configured system accelerates the entire process from delivery to grid-connection.
Technical Specifications
| Main Frame | Hot-dip galvanized carbon steel (Q235) |
| Waterproofing System | Dedicated aluminum alloy drainage rails |
| Wind Load Resistance | Up to 60 M/S (customizable per site assessment) |
| Snow Load Capacity | Up to 1.5 kN/m² |
| Compatibility | Fits most standard 60-cell and 72-cell PV modules |
| Warranty | 10-year structural warranty |
Applications
Ideal for commercial parking lots, corporate campuses, shopping centers, hospitals, schools, and public service facilities seeking to generate clean energy while enhancing infrastructure.
Why Choose Kseng for Your Solar Carport?
As a global leader in solar mounting solutions, Kseng combines cutting-edge R&D with rigorous quality control. Our Single Cantilever Waterproof Carport is more than a product; it's a comprehensive, engineer-backed solution. We provide full technical support, from initial design and wind load calculations to installation guidance, ensuring your project's success from concept to completion.
