Up to 15 parallelKSENG offers a comprehensive range of reliable tile roof solar mounting systems designed to create secure, durable, and installation-friendly support structures for photovoltaic modules on pitched tile roofs. The product range combines roof hooks, aluminum mounting rails, rail connectors, mid clamps, end clamps, and stainless-steel fasteners to provide a complete mounting solution for residential and commercial rooftop solar projects.
Different tiled roofs can present different installation challenges. Tile profile, roof structure, batten thickness, module size, installation space, and local wind or snow conditions can all affect mounting-system selection. KSENG therefore provides multiple roof-hook and rail configurations rather than relying on a single fixed design. Depending on the selected system, installers can choose adjustable hooks, aluminum roof hooks, stainless-steel roof hooks, simplified rail connections, or quick-connect components to match different project requirements.
KSENG’s versatile tile roof solar mounting systems are developed for a variety of common tiled-roof applications. The category page identifies compatibility with roofing materials including pantiles, plain tiles, and slate tiles, while adjustable roof-hook options help accommodate different roof and batten conditions.

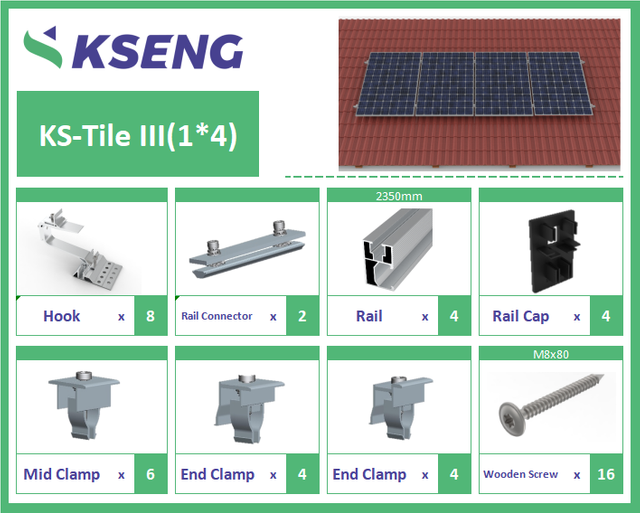

A typical system uses roof hooks as the connection between the building structure and the solar mounting rails. Once the hooks are securely fixed, aluminum rails create a stable mounting platform for the PV modules, while mid clamps and end clamps hold the modules in their required positions.
This modular approach gives installers flexibility when working with:
Residential pitched tile roofs
Commercial tiled-roof photovoltaic projects
Pantile roof structures
Plain tile roof structures
Slate tile applications
Framed or frameless photovoltaic modules on selected systems
Portrait or landscape module layouts on selected systems
For customers managing different rooftop projects, this flexibility can reduce the need to source completely different mounting concepts for every tile-roof installation.
Material selection is a major consideration when purchasing a rooftop mounting system because the structure remains exposed to rain, temperature changes, wind, moisture, and other outdoor conditions for many years.
KSENG’s corrosion-resistant tile roof solar mounting systems primarily combine high-strength aluminum alloy with stainless-steel fastening components. Several systems listed in this category use AL6005-T5 aluminum alloy and SUS304 stainless steel, while anodized aluminum surfaces are used on selected products to improve outdoor corrosion resistance.
These materials provide several practical benefits:
Aluminum mounting rails offer a favorable balance between structural strength and low weight.
SUS304 stainless-steel fasteners provide durable mechanical connections for outdoor applications.
Anodized aluminum components help improve resistance to environmental exposure.
Lightweight components can make transportation, rooftop handling, and installation more convenient.
Corrosion-resistant materials help support long-term system reliability with reduced maintenance requirements.
For installers and project owners, the result is a durable tile roof solar mounting system designed to provide a dependable structural base without adding unnecessary weight to the existing roof.
Tile roofs are not completely uniform. Differences in tile shape, batten thickness, rafter position, and roof geometry can make rigid mounting hardware difficult to install efficiently.
KSENG’s adjustable tile roof solar mounting systems address this issue with roof-hook configurations available in different heights and, depending on the product, adjustable designs that allow installers to adapt the mounting position to actual roof conditions. The category description specifically highlights height-adjustable hooks as a way to provide flexibility across different batten thicknesses.
This adaptability can help installers achieve more consistent rail alignment across uneven or varied tiled-roof surfaces. Instead of forcing the roof to suit the mounting hardware, the mounting components can be adjusted according to the roof.
For project contractors, this can mean:
Easier adaptation to different roof structures
More convenient rail leveling
Reduced need for improvised on-site modifications
Greater installation consistency across multiple mounting points
More flexibility when working with different tile profiles
Labor efficiency has a direct impact on rooftop PV installation costs. KSENG has developed several easy-installation tile roof solar mounting systems with component designs intended to simplify on-site assembly.
For example, the R095 system uses a hook-and-rail connection that can be secured with a single bolt from the top. Its hook and base connection also uses a simplified bolt arrangement, while the rail connector is designed without an additional bolt. The system uses a unified bolt type, helping installers reduce the number of tools and different accessories needed during installation.
The R121 system takes a different approach. It features a quick-connect rail design and dual-purpose mid/end clamps that reduce component variety and help simplify module installation.
Across selected products, installation-oriented features include:
| Installation Feature | Customer Benefit |
|---|---|
| Adjustable roof hooks | Easier adaptation to different tile and batten conditions |
| Top-access fastening | More convenient installation and tightening |
| Quick rail connectors | Faster connection of adjacent rail sections |
| Bolt-reduced rail splices | Fewer installation steps and accessories |
| Dual-purpose mid/end clamps | Reduced component complexity |
| Press-in clamp designs | Faster module fastening on compatible systems |
| Standardized hardware | Fewer tools required on the rooftop |
| Modular rails and hooks | Easier project planning and replacement of individual components |
These practical design details are particularly valuable for installers handling multiple residential roofs or larger commercial projects where repeated installation efficiency can significantly affect labor time.
A photovoltaic mounting system must transfer forces safely from the solar modules through the rails and roof attachments into the building structure.
KSENG’s secure tile roof solar mounting systems use dedicated hooks to create the roof attachment, aluminum rails to provide continuous module support, and clamps to secure the PV modules. Selected designs fasten the rail from both the bottom and side of the roof hook, helping provide a stable mechanical interface between the hook and rail.
The basic load path is straightforward:
Roof Structure → Tile Roof Hook → Solar Rail → Mid/End Clamp → PV Module
This component-based structure gives installers clear control over each mechanical connection and makes it easier to inspect fastening points during and after installation.
Wind and snow loads are critical factors when selecting rooftop solar mounting equipment. KSENG offers high-strength tile roof solar mounting systems with structural ratings that vary according to the individual product design.
Selected tile-roof mounting products are specified for wind speeds of up to 60 m/s and snow loads of up to 1.4 kN/m². The R095 system is listed at 40 m/s wind speed and 1.4 kN/m² snow load, while the R121 has a specified design wind speed of 30 m/s and snow load of 0.70 kN/m².
| Product / System | Wind Rating | Snow Load | Main Materials |
|---|---|---|---|
| R059 Tile Roof Mounting Brackets | Up to 60 m/s | Up to 1.4 kN/m² | AL6005-T5 + SUS304 |
| R095 Tile Roof PV Structure | 40 m/s | 1.4 kN/m² | AL6005-T5 + SUS304 |
| R121 Tile Roof Solar Mounting System | 30 m/s design wind speed | 0.70 kN/m² design snow load | AL6005-T5 + SUS304 |
| Selected Aluminum Tile Roof System | Up to 60 m/s | Up to 1.4 kN/m² | AL6005-T5 + SUS304 |
Because performance specifications differ by mounting system, customers should select a product according to the actual project location, roof structure, array layout, and applicable engineering requirements rather than assuming that one load rating applies to every product in the category.
Module dimensions and orientation can affect installation layout, so mounting-system compatibility is another important consideration for installers and EPC contractors.
Selected KSENG universal tile roof solar mounting systems support both framed and frameless photovoltaic modules and allow portrait or landscape installation. Other products, such as the R121, specify compatible module dimensions, including module thicknesses from 30–38 mm and widths up to 1134 mm.
This allows customers to choose the mounting solution according to the module being used instead of treating all PV panels as dimensionally identical.
When selecting a product, buyers can consider:
PV module frame thickness
Module width
Portrait or landscape orientation
Number of modules per array
Rail length and splice requirements
Roof-hook spacing
Roof structure
Required wind and snow design loads
KSENG’s professional tile roof solar mounting systems are suitable for both residential and commercial rooftop PV projects. The R121, for example, is specifically positioned for residential and commercial tiled-roof applications and has also been used in European solar projects.
For residential installers, lightweight components, adjustable roof hooks, and simplified clamp designs can make smaller rooftop installations easier to manage.
For commercial installers and distributors, standardized rails, repeatable attachment methods, and multiple roof-hook configurations can help simplify inventory planning when serving a broader range of tile-roof projects.
This makes the category relevant to:
Solar installation companies
EPC contractors
PV system distributors
Residential solar contractors
Commercial rooftop developers
Solar mounting wholesalers
Project designers and engineering teams
Selected KSENG certified tile roof solar mounting systems reference standards or certification documentation including AS/NZS 1170, ISO 9001, CE, and, for the R121, CE and ETN documentation. Certification applicability varies by individual product and target market, so customers should verify the documentation required for their specific project before final selection.
This model-specific approach is important because tile-roof PV installations vary considerably from one building and market to another. A suitable mounting solution should be selected according to the actual roof construction, module dimensions, environmental loads, and local technical requirements.
The practical advantage of KSENG’s optimized tile roof solar mounting systems comes from combining multiple installation approaches within one product category.
Rather than providing only one generic hook-and-rail configuration, the range includes adjustable stainless-steel roof-hook systems, aluminum roof-hook designs, quick-connect rails, press-in clamps, simplified fastening structures, and systems engineered for different wind and snow conditions.
For customers, these design choices can provide:
Greater flexibility for different tiled-roof structures
Durable aluminum and stainless-steel construction
Multiple roof-hook configurations
Simplified and faster installation on selected systems
Fewer components and tools on selected designs
Compatibility with multiple PV module layouts
Model-specific structural options for different project conditions
Complete mounting components from roof attachment to module clamp
Instead of choosing a mounting system only by price, installers can compare how each product handles roof compatibility, installation time, material durability, component count, module dimensions, and structural requirements.
From adjustable hooks for varied tile profiles to quick-connect rail systems designed to reduce installation steps, KSENG provides efficient tile roof solar mounting systems for a wide range of rooftop photovoltaic applications.
Customers can explore the individual products below to compare roof-hook designs, mounting rails, clamp structures, materials, module compatibility, wind and snow ratings, and installation features. Choosing the appropriate system for the actual roof and PV module configuration can help create a safer, more efficient, and more reliable rooftop solar installation.
Explore KSENG tile roof solar mounting systems and select the mounting solution that best matches your roof type, module dimensions, installation method, and project engineering requirements.
