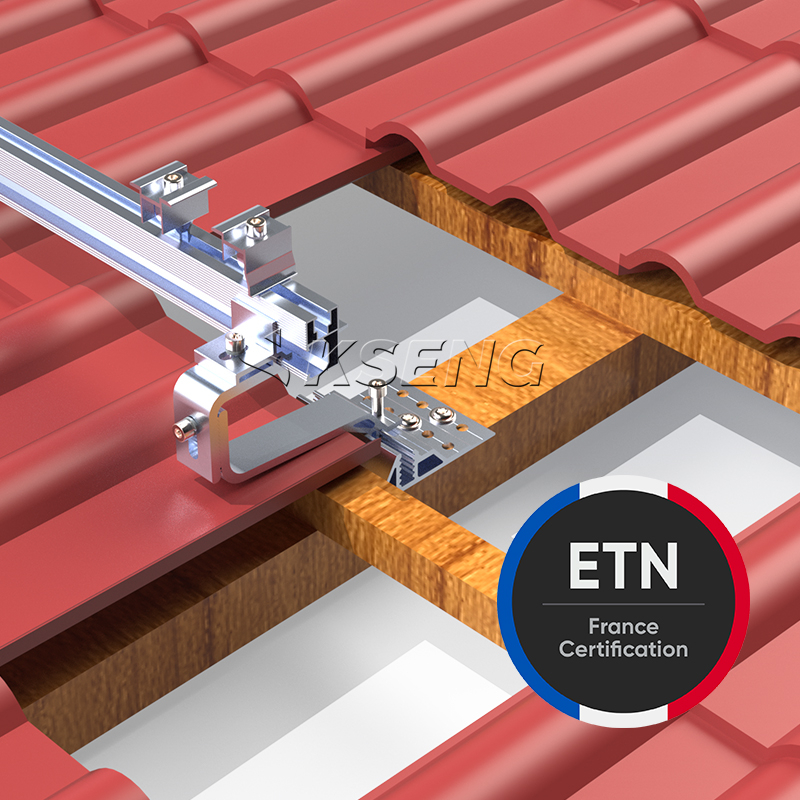

KS-Tile R061
Kseng
The Kseng R061 Tile Roof Solar Mounting System is an above-roof photovoltaic mounting solution designed for tiled pitched roofs with wooden beam structures. The system uses the HA-1101 tile roof hook to connect the R061 aluminum mounting rail to the roof structure and is designed for portrait-oriented solar panel installation.
The R061 system supports PV modules up to 2350 mm in length and 1350 mm in width, with a module thickness of 30–38 mm. It is suitable for tiled roofs with a roof slope of up to 75° and provides a practical mounting solution for residential and other rooftop solar PV projects.
The R061 is specifically designed for tile roof photovoltaic mounting. The HA-1101 roof hook provides the connection between the tiled roof structure and the solar mounting rail while allowing adjustment to suit the roof tile configuration.
The R061 system is designed for roofs supported by wooden beams. The HA-1101 roof hook is fixed to the supporting wooden beam using the specified FA-0985 wood screws.
The HA-1101 roof hook features adjustable connection positions that allow installers to adjust the hook according to the roof structure and tile position. Proper adjustment helps prevent interference between the mounting hook and roof tiles.
The R061 mounting system is designed for portrait-oriented PV module installation, providing a defined mounting configuration for rooftop solar panel arrays.
The R061 aluminum mounting rail can be connected using the SR-8001 rail splice when additional rail length is required. This allows multiple rail sections to form a continuous mounting structure.

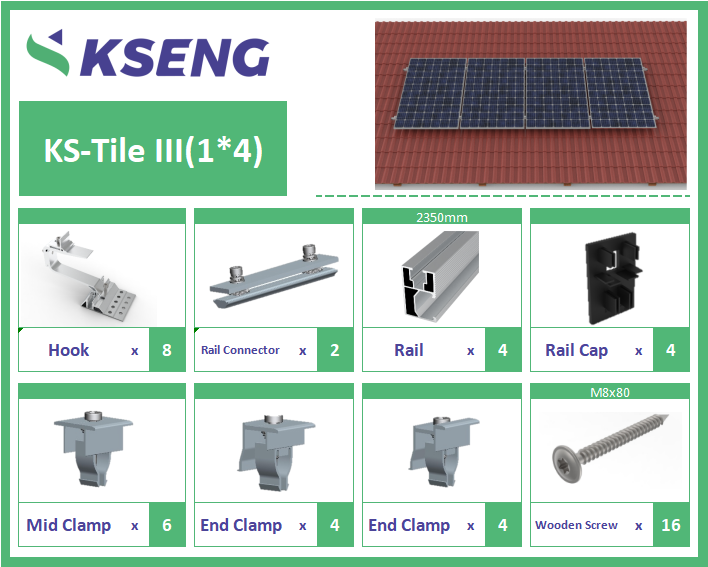

The R061 system includes the main components required for a tile roof PV installation, including the R061 rail, HA-1101 roof hook, SR-8001 rail splice, CM-0163 mid clamp, FA-0985 wood screw and DG-0042 rail cap.
| Specification | Details |
|---|---|
| Product Type | Tile Roof Solar Mounting System |
| Mounting Type | Above Roof |
| Roof Type | Tile Roof / Pitched Roof |
| Maximum Roof Slope | ≤ 75° |
| Roof Structure | Wooden Beam |
| PV Module Orientation | Portrait |
| Maximum Module Length | ≤ 2350 mm |
| Maximum Module Width | ≤ 1350 mm |
| Module Thickness | 30–38 mm |
| Reference Array | 1 × 4 |
| Mounting Rail | R061 |
| Roof Hook | HA-1101 |
| Rail Splice | SR-8001 |
| Mid Clamp | CM-0163 |
| Wood Screw | FA-0985 |
| Rail Cap | DG-0042 |
The Kseng R061 tile roof solar mounting system consists of the following main components:
 |  |  |
R061 Solar Mounting Rail | HA-1101 Tile Roof Hook | CM-0163 Mid End Clamp |

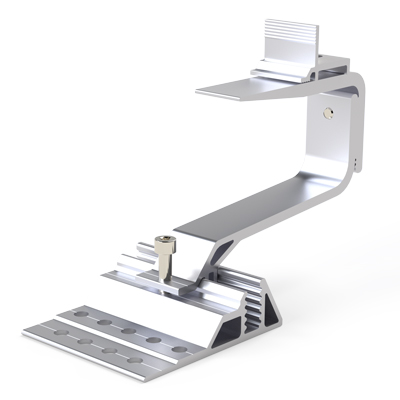

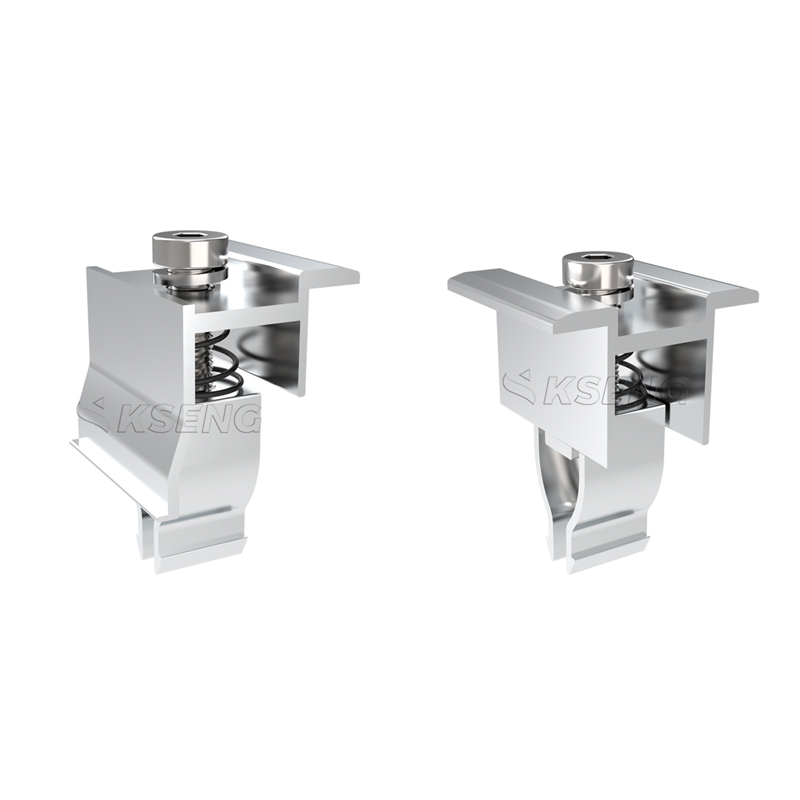

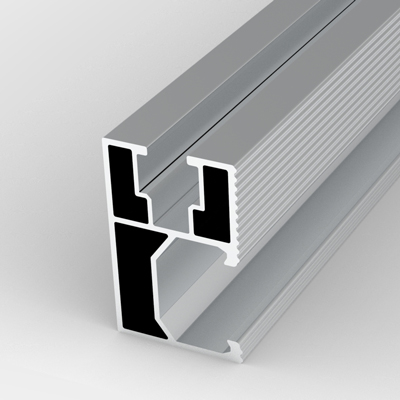

The R061 rail provides the main structural support for the PV modules and connects to the HA-1101 roof hooks. | The HA-1101 roof hook connects the R061 mounting rail to the wooden beam structure beneath the tiled roof. Its adjustable connection points help installers position the hook correctly according to the roof structure. | The CM-0163 mid clamp end clamp secures adjacent PV modules to the R061 mounting rail. |
 |  |  |
SR-8001 Rail Splice | FA-0985 Wood Screw | DG-0042 Rail Cap |

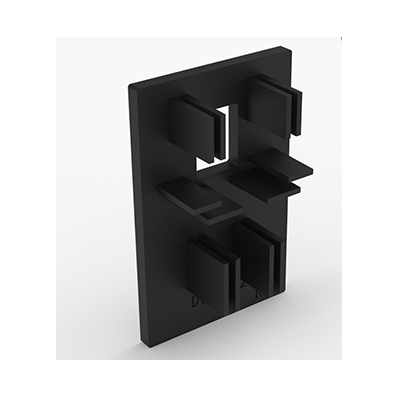

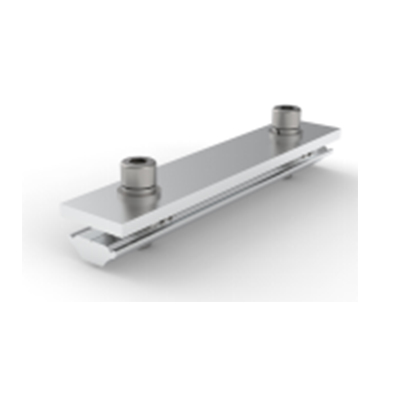

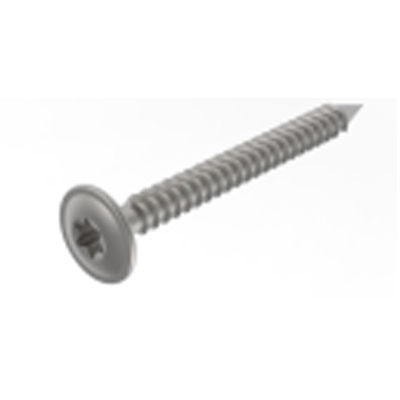

The SR-8001 rail splice is used to connect two R061 mounting rails when a longer continuous rail is required. | The FA-0985 wood screw is used to secure the HA-1101 roof hook to the supporting wooden beam. | The DG-0042 rail cap is installed at the end of the R061 mounting rail to complete the rail assembly. |
The R061 tile roof solar mounting system is designed for:
Tile roofs
Pitched roofs
Wooden beam roof structures
Above-roof PV installations
Portrait-oriented solar panel arrays
The system supports solar modules with:
Maximum length: 2350 mm
Maximum width: 1350 mm
Module thickness: 30–38 mm
The specified maximum roof slope is 75°.

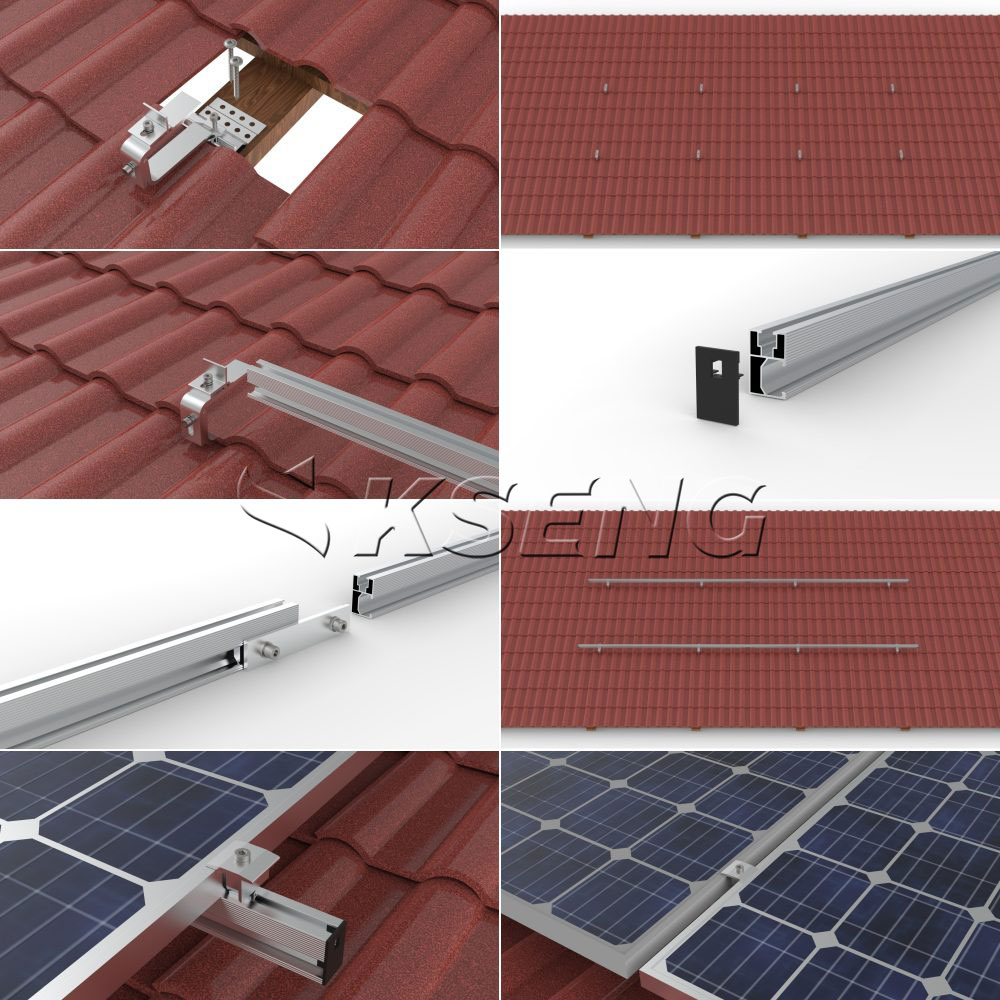

The R061 installation process is designed around the roof structure, tile position and PV module layout.
Before installation, determine the position and spacing of the wooden beams beneath the tile roof. The beam positions are used to determine the fixing locations of the HA-1101 roof hooks.
Remove the roof tile at the selected installation location and position the HA-1101 roof hook over the supporting wooden beam.
Adjust the hook position so that it provides sufficient clearance from the surrounding roof tiles.
Secure the HA-1101 roof hook to the wooden beam using the specified FA-0985 wood screws.
Check the hook position and alignment before fully tightening the fixing screws.
Place the R061 mounting rail onto the installed HA-1101 roof hooks.
Position the rail according to the PV module layout and secure it through the rail fixing connection.
If additional rail length is required, use the SR-8001 rail splice to connect adjacent R061 rails.
Make sure the splice is correctly engaged with the rail before securing the connection.
Install the DG-0042 rail cap at the end of the mounting rail after completing the rail assembly.
Place the PV modules onto the R061 mounting rails in the specified portrait orientation.
Position the modules according to the project layout.
Use the CM-0163 mid clamps and the applicable end fixing components to secure the solar modules to the mounting rails.
Check the module alignment and all mechanical connections after installation.
Before installing the R061 tile roof solar mounting system, installers should inspect the condition of the roof tiles and supporting structure.
The installation should take into account:
Roof structure and wooden beam position
Roof tile type and condition
Roof slope
PV module dimensions
PV module thickness
Local wind and snow conditions
Required mounting spacing
Applicable local building and electrical requirements
The final hook spacing, rail layout, fixing method and structural configuration should be determined according to the actual project conditions and engineering requirements.
The Kseng R061 tile roof solar mounting system can be used for a range of rooftop photovoltaic applications, including:
Residential tile roof solar installations
Pitched roof PV systems
Wooden beam rooftop structures
Residential solar panel projects
Small and medium-sized rooftop PV systems
New solar installations on existing tiled roofs
The R061 is developed specifically for tiled pitched roofs and uses a dedicated HA-1101 roof hook for the roof connection.
The HA-1101 provides adjustable positioning to help accommodate different tile roof configurations and maintain clearance from roof tiles.
The system supports PV modules up to 2350 × 1350 mm with a module thickness of 30–38 mm.
The R061 system combines the mounting rail, roof hook, rail splice, module clamps, wood screws and rail caps into an integrated rooftop PV mounting solution.
The system provides a defined installation sequence from wooden beam measurement and roof hook installation to rail assembly and PV module fixing.
Product: R061 Tile Roof Solar Mounting System
Roof Type: Tile Roof / Pitched Roof
Mounting Type: Above Roof
Roof Structure: Wooden Beam
Roof Slope: ≤75°
Module Orientation: Portrait
Maximum Module Size: 2350 × 1350 mm
Module Thickness: 30–38 mm
Reference Array: 1 × 4
Roof Hook: HA-1101
Rail: R061
Rail Splice: SR-8001
Mid Clamp: CM-0163
Wood Screw: FA-0985
Rail Cap: DG-0042
The Kseng R061 is an above-roof solar mounting system designed for installing photovoltaic modules on tiled pitched roofs. It uses the HA-1101 roof hook to connect the R061 mounting rail to a wooden beam roof structure.
The R061 is designed for tile roofs and pitched roofs. The specified maximum roof slope is 75°.
The R061 system is designed for wooden beam roof structures. The HA-1101 roof hook is fixed to the supporting wooden beam using FA-0985 wood screws.
The system supports PV modules up to 2350 mm in length and 1350 mm in width, with a module thickness of 30–38 mm.
Yes. The R061 system is specified for portrait-oriented PV module installation.
The main components include the R061 mounting rail, HA-1101 roof hook, SR-8001 rail splice, CM-0163 mid clamp, FA-0985 wood screw and DG-0042 rail cap.
The HA-1101 roof hook is positioned over the supporting wooden beam beneath the tile roof and secured using FA-0985 wood screws. The hook position should be adjusted to avoid interference with the roof tiles.
When additional rail length is required, two R061 rails can be connected using the SR-8001 rail splice.
The specified maximum roof slope for the R061 system is 75°.
Yes. The R061 is designed for tiled pitched roofs and can be used for residential rooftop photovoltaic installations where the roof structure and project conditions meet the system requirements.
