R121
Kseng
The Kseng R121 Tile Roof Solar Mounting System is a photovoltaic mounting solution designed for installing solar panels on tiled roofs. It combines a high-strength aluminum mounting rail, premium aluminum roof hooks and stainless steel fasteners to provide a secure and durable foundation for rooftop PV systems.
The R121 is suitable for residential and commercial tiled-roof solar projects and is designed for fast, efficient installation.

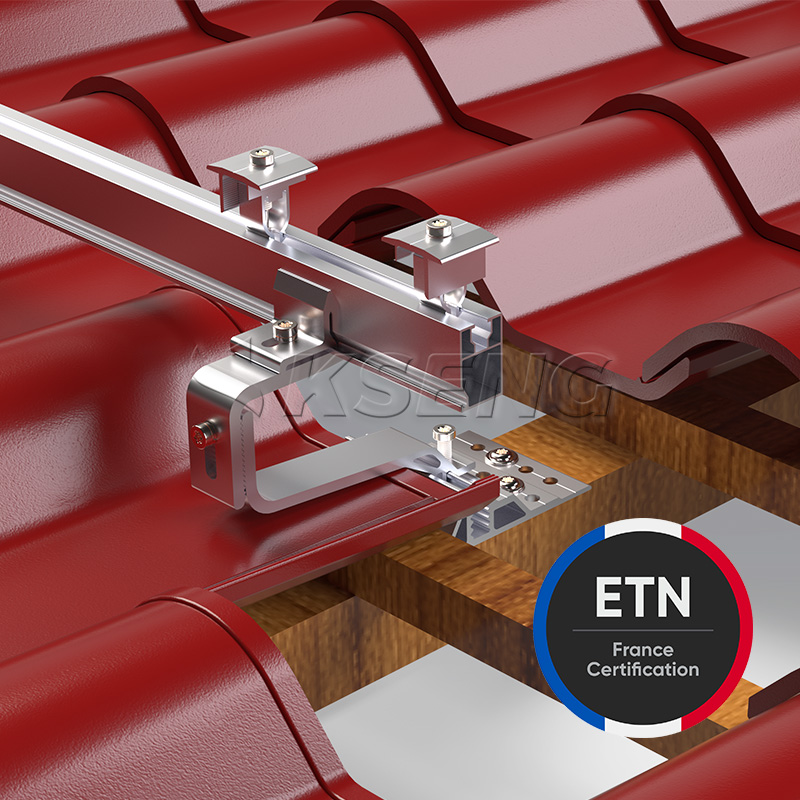

The R121 uses a dedicated tile roof hook structure to connect the solar mounting rail securely to the roof structure. The hook design is suitable for tiled roof applications and helps provide a stable mounting interface for PV modules.
The system uses dual-purpose mid and end clamps to simplify solar panel installation. The clamp design helps secure PV modules while reducing the number of different components required during installation.
The R121 features a quick connector that enables the mounting rail to be connected efficiently during installation. This helps simplify assembly and can improve installation efficiency on the job site.
The roof hook is made from AL6005-T5 aluminum, providing a lightweight and corrosion-resistant mounting component for rooftop solar applications.
The system uses SUS304 stainless steel components for reliable fastening and corrosion resistance in outdoor rooftop environments.
The R121 has been applied in solar projects in Europe and is supplied with relevant certification documentation shown in the product materials, including CE and ETN certification.
| Specification | R121 |
|---|---|
| Product Type | Tile Roof Solar Mounting System |
| Application | Tile Roof PV Installation |
| Design Wind Speed | 30 m/s |
| Design Snow Load | 0.70 kN/m² |
| Module Width | ≤ 1134 mm |
| Module Thickness | 30–38 mm |
| Unit Array | 1 × 4 pcs |
| Main Materials | AL6005-T5, SUS304 |
| Mounting Type | Rooftop Solar Mounting |
| Roof Type | Tile Roof |
| Certification | CE, ETN |

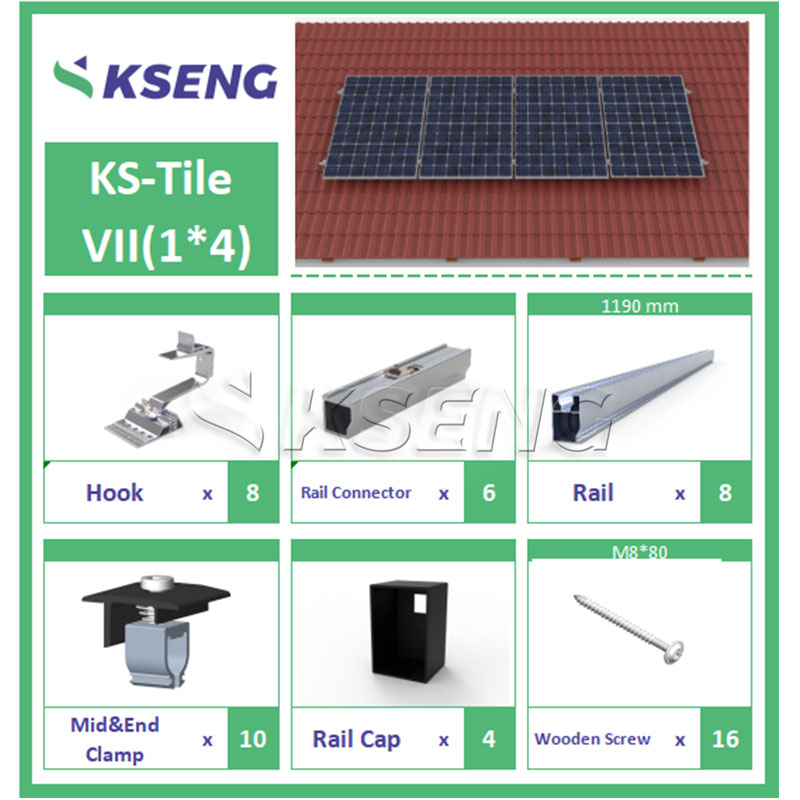

The R121 tile roof solar mounting system consists of the main components required for a secure rooftop PV installation.

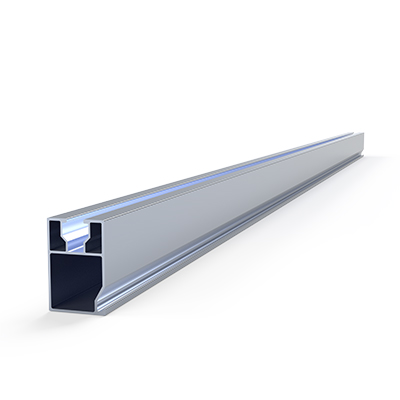

Solar mounting rail – provides the structural support for PV modules.
Tile roof hook – connects the mounting rail to the tiled roof structure.

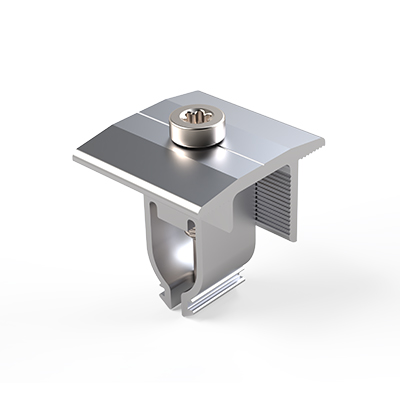

Mid clamp – secures adjacent solar modules to the mounting rail.
End clamp – secures the outer edge of the solar module array.

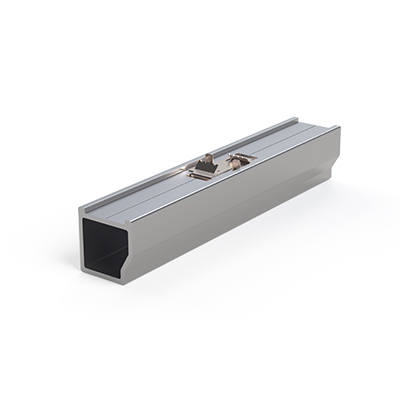

Rail connector – connects mounting rails efficiently.
Stainless steel fasteners – provide secure and durable connections.
Other mounting accessories – support efficient installation and system assembly.

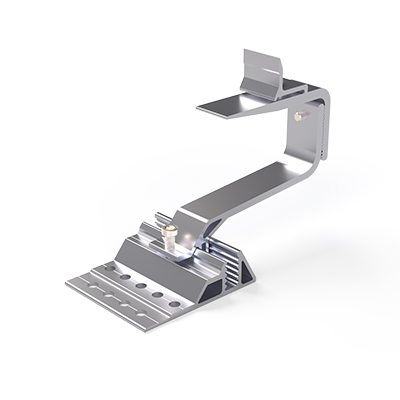

Hook（HA-1103）
Rail（R121）
Mid/End Clamp（CM-0163）
R121 Rail Connector

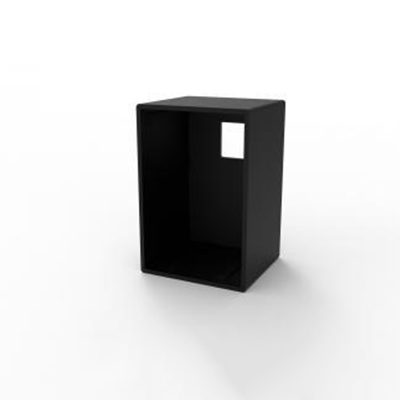

Rail Cap(L/R)
Name3

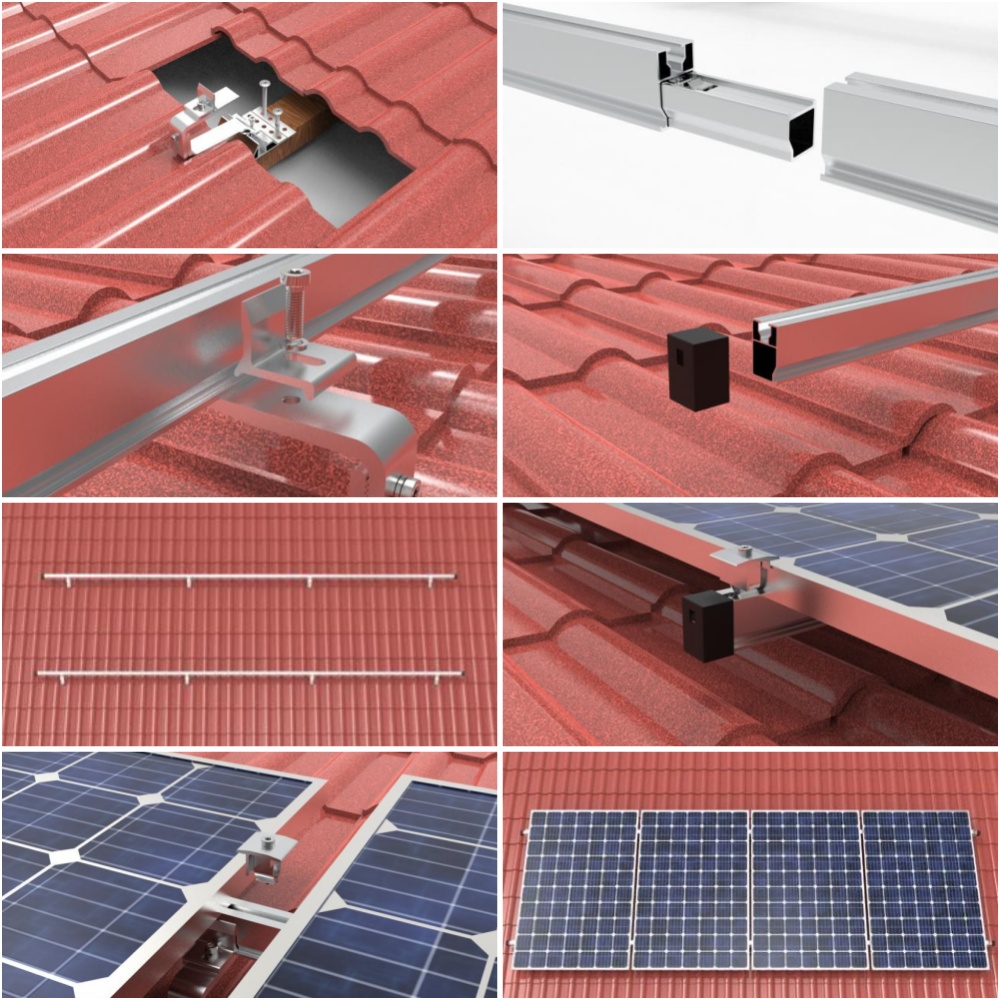

The general installation process includes the following steps:
Check the roof structure, tile condition and installation area before mounting the PV system.
Position the premium aluminum roof hooks at the required locations and fasten them securely to the roof structure.
Connect the mounting rails to the roof hooks and adjust their position according to the PV module layout.
Use the quick rail connector to join mounting rails where additional rail length is required.
Position the PV modules on the rails and secure them using the R121 mid and end clamps.
Check all mechanical connections, module alignment and fasteners before completing the installation.
The Kseng R121 is designed for tiled-roof photovoltaic applications, including:
Residential rooftop solar systems
Commercial tiled-roof PV projects
European residential solar installations
Small and medium rooftop photovoltaic systems
New solar installations on existing tiled roofs
Fast Installation
The quick-connect rail design and simplified clamp structure help streamline rooftop PV installation.
Reliable Materials
The system uses AL6005-T5 aluminum and SUS304 stainless steel components for outdoor solar mounting applications.
Tile Roof Compatibility
The dedicated roof hook provides a mounting interface specifically designed for tiled roof applications.
Flexible Module Compatibility
The R121 supports PV modules with a thickness of 30–38 mm and module width of up to 1134 mm.
European Project Experience
The product has been used in solar projects in Europe and is supported by CE and ETN certification documentation.

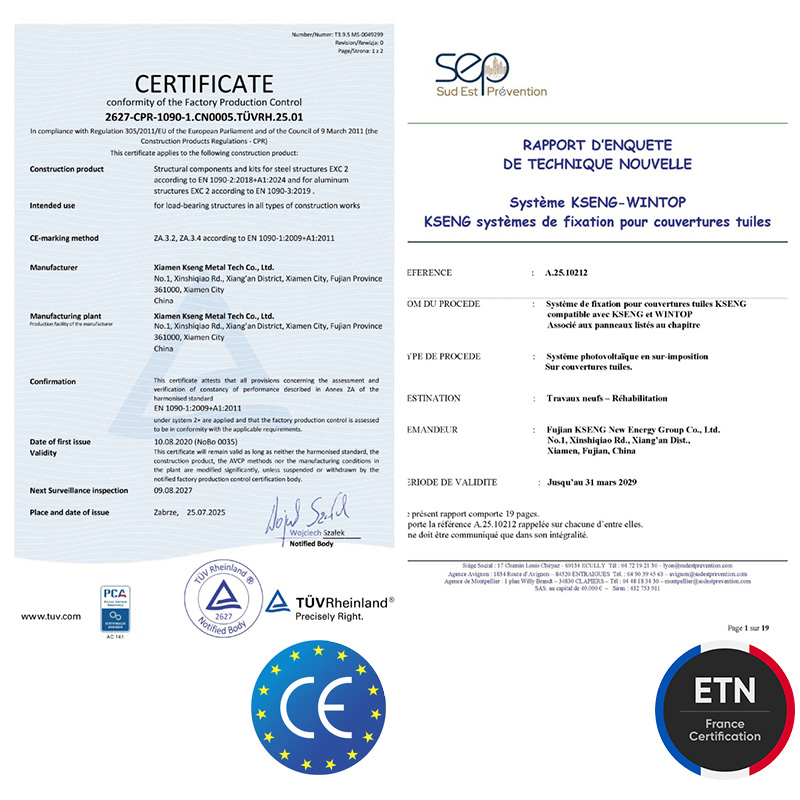

The Kseng R121 tile roof solar mounting system is supported by certification documentation shown in the product materials, including:
CE
ETN Certification
Certification and compliance requirements may vary by market and project. Please contact Kseng for the latest certification documents applicable to your project.
Xiamen Kseng Metal Tech. Co., Ltd. specializes in solar mounting systems and PV mounting solutions for different installation environments.
The R121 is part of Kseng's rooftop solar mounting product portfolio and is designed to provide an efficient mounting solution for tiled-roof photovoltaic projects.
The Kseng R121 is a solar mounting system designed for installing photovoltaic modules on tiled roofs. It uses aluminum roof hooks, mounting rails, mid and end clamps, rail connectors and stainless steel fasteners.
The R121 is specifically designed for tiled roof solar installations. The final mounting configuration should be selected according to the specific tile type and roof structure.
The R121 supports solar modules with a module thickness of 30–38 mm and a module width of up to 1134 mm, according to the product specifications.
The main materials specified for the R121 are AL6005-T5 aluminum and SUS304 stainless steel.
The specified design wind speed is 30 m/s. Actual project design should consider local wind conditions, roof structure, mounting layout and engineering requirements.
The specified design snow load is 0.70 kN/m². Project-specific structural calculations should be performed according to local conditions and applicable standards.
Yes. The R121 features a quick-connect rail system and dual mid/end clamps, which are designed to simplify component connection and PV module installation.
Yes. The product has been used in solar projects in Europe, and the product materials show CE and ETN certification documentation. Project-specific compliance should be confirmed with Kseng before installation.
