Kseng

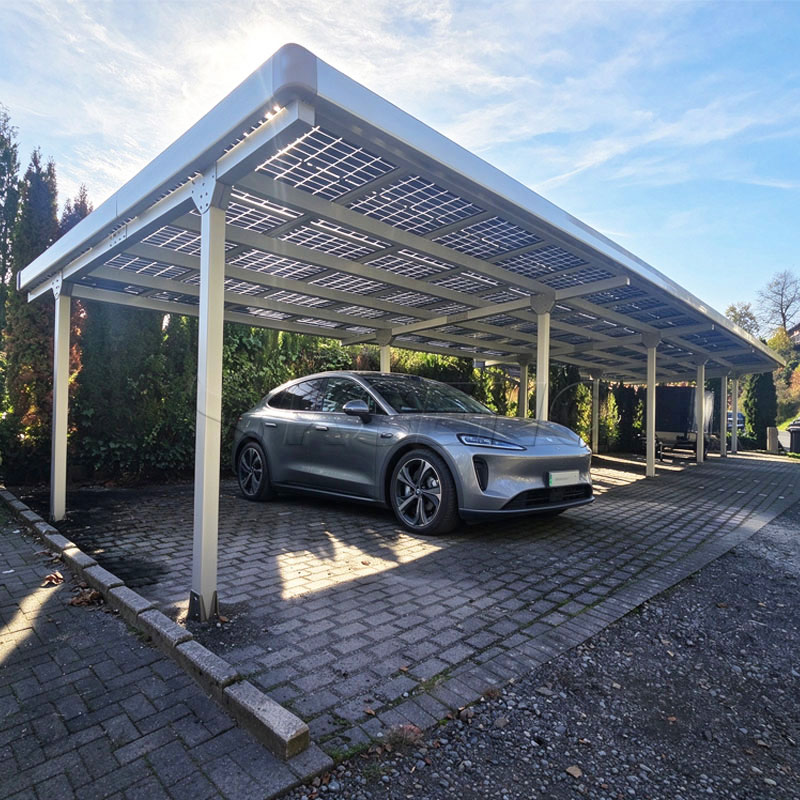

The Kseng Commercial & Industrial Solar Carport Mounting System is an aluminum mounting structure designed to support photovoltaic modules over parking areas. It combines vehicle shelter with an elevated platform for solar panel installation, helping businesses make productive use of existing parking space.
Designed for commercial and industrial applications, this solar carport mounting system can be configured for different parking layouts and project scales. Its modular structural concept allows project-specific adjustments to dimensions, column positions, mounting rails, and foundation arrangements.
Kseng supplies the solar carport mounting structure and related mounting components. Photovoltaic modules and electrical equipment are outside the standard supply scope.

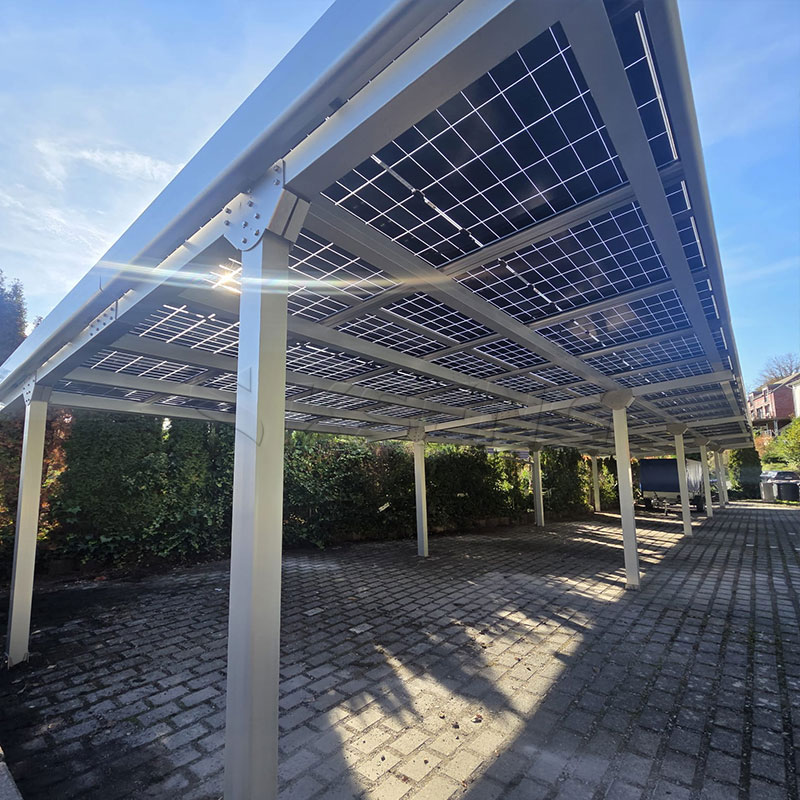

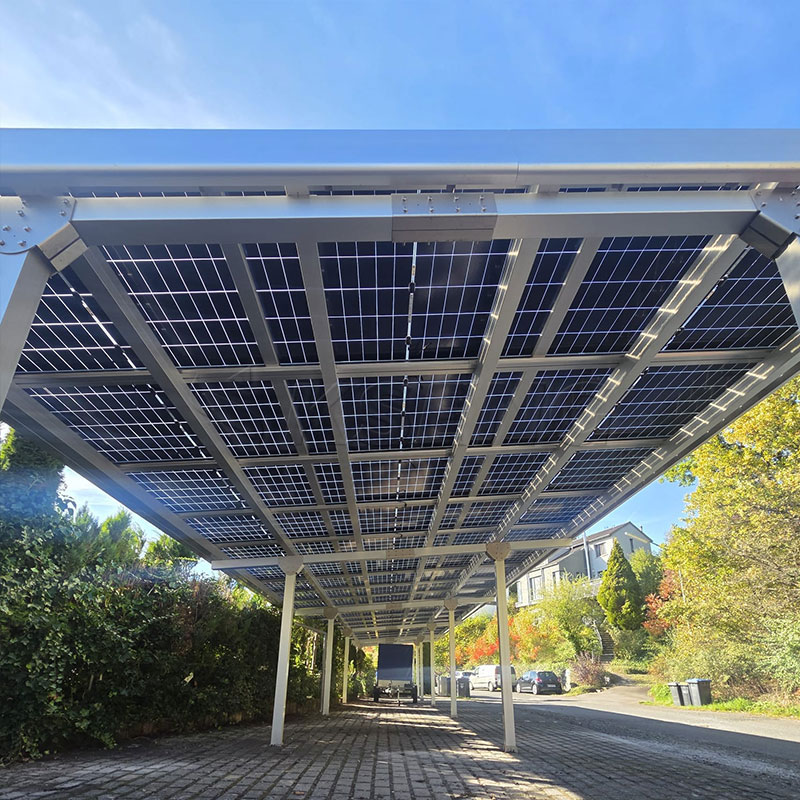

The referenced Kseng aluminum solar carport series uses AL6005-T5 aluminum alloy for the main structure and SUS304 stainless steel fasteners. The combination offers a practical balance of structural strength, weight, and corrosion resistance for outdoor solar mounting applications.
Commercial parking areas vary in size, layout, vehicle clearance, and ground conditions. Kseng can customize the mounting structure according to project dimensions, photovoltaic module specifications, parking arrangements, and engineering requirements.
The column layout, beam dimensions, connections, foundation configuration, and structural loading requirements should be evaluated for each project. Wind speed, snow load, soil conditions, and local building codes are important inputs for the final structural design.
Mounting components can be prepared and arranged to support efficient on-site assembly. Installation drawings, assembly instructions, and technical documentation can help contractors plan installation work and coordinate the mounting structure with the rest of the photovoltaic project.
Aluminum profiles and suitable stainless steel fasteners help resist outdoor corrosion. The final material grade, surface treatment, fastener specification, and maintenance requirements should be confirmed against the selected product configuration and site environment.

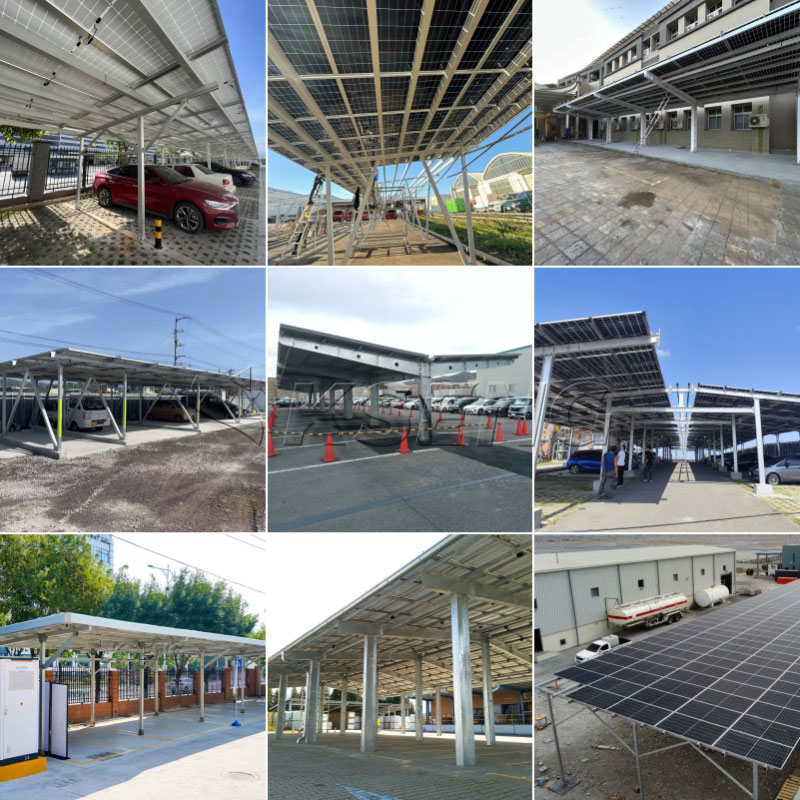

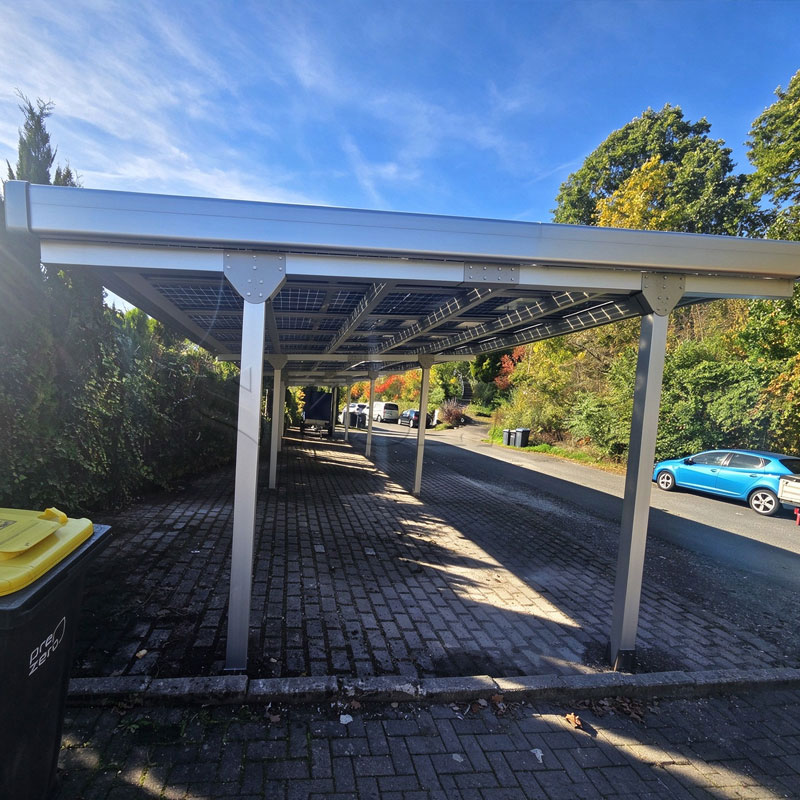

Suitable for retail centers, office buildings, hotels, business parks, and commercial properties seeking to install photovoltaic modules above parking spaces.
Suitable for factories, warehouses, logistics centers, and industrial campuses with existing parking areas and on-site solar project requirements.
Modular configurations can be evaluated for multi-row and multi-bay parking layouts. The final structural arrangement depends on parking geometry, vehicle access, site dimensions, and engineering calculations.
Potential applications include campuses, public facilities, and other institutional parking sites where solar mounting structures must be coordinated with access routes and site infrastructure.
Kseng provides project-oriented customization for commercial and industrial solar carport structures.
Customization can include:
Overall structure dimensions and parking layout
Column spacing and vehicle clearance
Beam, rail, and connection configurations
Compatibility with specified photovoltaic module dimensions
Module orientation and mounting arrangement
Foundation configuration according to site conditions
Structural design based on local wind and snow loads
Waterproof or non-waterproof configurations, where available
To prepare a suitable design, customers should provide the project location, site layout, parking dimensions, solar module datasheet, required vehicle clearance, local design loads, and preferred foundation type.
Final dimensions, structural member sizes, load capacities, and foundation details are subject to engineering review and project-specific approval.
The following information describes the referenced Kseng aluminum solar carport series. Project-specific specifications must be confirmed before ordering.
| Parameter | Description |
|---|---|
| Product Type | Commercial & Industrial Solar Carport Mounting System |
| Main Structural Material | AL6005-T5 aluminum alloy |
| Fastener Material | SUS304 stainless steel |
| Surface Treatment | Anodized aluminum |
| Structural Configuration | Customized according to project layout |
| Solar Module Compatibility | Confirmed according to module dimensions and mounting requirements |
| Foundation | Various foundation options include precast concrete, bored pier and ground screw |
| Wind and Snow Loads | Calculated according to project location and applicable codes |
| Warranty | 10-year |
| Service Life | 25 years |
| Supply Scope | Mounting structure and agreed mounting components only |
For the referenced product series, Kseng lists a 10-year warranty and a designed service life of up to 25 years. Please confirm the applicable warranty, service-life conditions, and technical specifications for your selected commercial carport configuration.

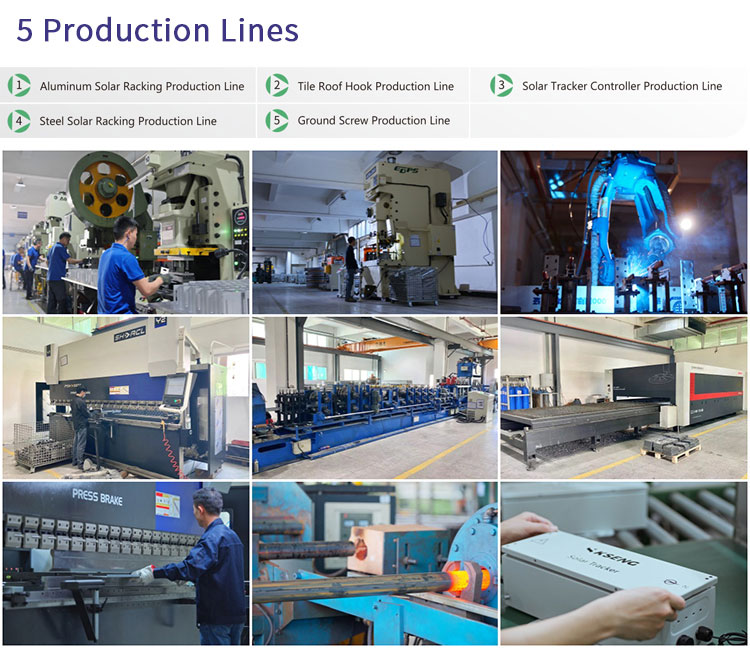

Kseng specializes in solar mounting and tracking systems for residential, commercial, industrial, and utility-scale solar applications.
Kseng focuses on solar mounting structures and related engineering requirements, supporting customers who need mounting products for different photovoltaic project types.
Project-specific structural layouts help customers coordinate the mounting system with parking space, photovoltaic modules, site conditions, and installation requirements.
Depending on the project and agreed scope, support may include structural drawings, installation instructions, component documentation, and engineering coordination.
Kseng works with distributors, installers, EPC contractors, and project developers seeking solar mounting products for projects in different markets.
This product is a solar carport mounting system, not a complete photovoltaic power generation package.
Included: The agreed solar carport structural framework and mounting components.
Not included by default: Solar panels, inverters, batteries, EV charging stations, electrical cables, and other electrical equipment.
To help Kseng evaluate your project, please provide the following information:
Project country and installation location
Parking lot layout, dimensions, and available site drawings
Required parking spaces and vehicle clearance
Solar module dimensions and datasheet
Local wind speed, snow load, and applicable design standards
Preferred foundation type and ground conditions
Waterproofing requirements, if applicable
Estimated order quantity and expected delivery schedule
Based on the information provided, Kseng can evaluate the appropriate mounting configuration and confirm the technical details, quotation, and delivery arrangements.
Contact Kseng for a Customized Solar Carport Mounting Solution
Looking for an aluminum solar carport mounting system for a commercial or industrial parking project? Contact Kseng with your project drawings and technical requirements to discuss a suitable mounting structure.
