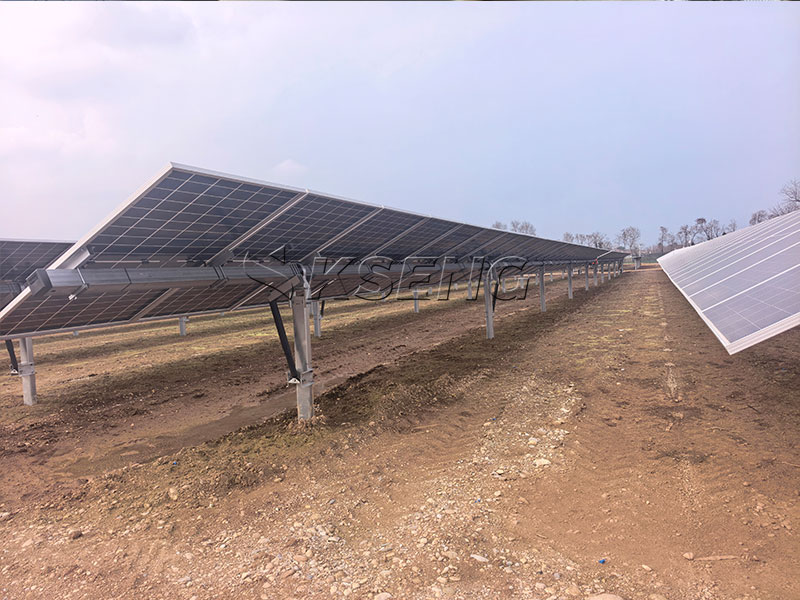

A Single Axis Solar Tracker is an intelligent solar mounting system that automatically rotates photovoltaic (PV) modules from east to west throughout the day, allowing the panels to follow the sun's movement. Compared with fixed-tilt mounting systems, a single-axis tracker significantly increases solar energy capture and improves the overall performance of photovoltaic power plants.
As global demand for renewable energy continues to grow, utility-scale solar projects increasingly adopt horizontal single-axis trackers to maximize electricity generation while reducing the Levelized Cost of Energy (LCOE).
The working principle of a single-axis solar tracker is based on continuously adjusting the orientation of solar panels to maintain the optimal angle toward sunlight.
Kseng Energy's tracker combines an astronomical algorithm with AI-based closed-loop control, enabling the system to calculate the sun's position in real time and automatically drive the tracker to the most efficient angle.
The system mainly consists of:
Solar PV modules
Torque tube
Drive motor
Slewing drive
Controller
Sensors
Communication system
During sunrise, the tracker begins rotating from the east. Throughout the day, the controller continuously adjusts the panel position according to the sun's trajectory. At sunset, the tracker automatically returns to its initial position, preparing for the next day.
This intelligent tracking process maximizes daily solar irradiation and minimizes energy loss caused by suboptimal panel angles.
According to the Kseng Energy technical specifications, the Single Axis Solar Tracker provides outstanding performance for utility-scale solar farms.
| Specification | Details |
|---|---|
| System Type | One Portrait Horizontal Single-Axis Tracker |
| PV Module Quantity per Row | 1P × 90 |
| Tracking Range | ±60° (Customized according to project requirements) |
| Tracking Accuracy | ±1° |
| Motor Quantity | 1 Drive Unit |
| Specification | Details |
|---|---|
| Tracking Method | Astronomical Algorithm + AI Closed-loop Control |
| Signal Transmission | RS485 or Wireless LoRa |
| Drive Method | 24V DC Motor + Slewing Drive |
| Power Supply | AC Powered or Self-powered |
| Backtracking Function | Yes |
| Specification | Details |
|---|---|
| Operating Temperature | -30°C to +60°C |
| Wind Protection | ≥18 m/s |
| Rotate to Horizontal Time | 5-6 Minutes |
| Slope Adaptability | North-South 10%-20%; East-West No Limitation |
| Design Standards | GB, ASCE, BS, EN, AS |
The advanced astronomical algorithm combined with AI closed-loop feedback continuously optimizes the tracking angle, improving system stability and maximizing solar energy collection.
With a tracking accuracy of ±1°, the system minimizes angle deviation and ensures optimal sunlight capture throughout the day.
The tracker supports a ±60° rotation range, making it suitable for different geographical locations and maximizing annual energy production.
The controller supports both RS485 wired communication and LoRa wireless communication, allowing easy integration into large-scale photovoltaic power stations.
Designed for harsh outdoor environments, the tracker operates reliably between -30°C and +60°C and provides strong wind protection.
One of the most important innovations of Kseng Energy's Single Axis Solar Tracker is its optimized rotating center of gravity.
Compared with conventional tracking structures, this design offers several advantages:
Eliminates angle errors at both ends of the mounting structure
Increases power generation by approximately 1%–2%
Reduces torsional stress on the torque tube by 5%–10%
Lowers bracket deformation by 4°–7°
Reduces motor operating load
Extends motor service life
Improves overall system stability
These structural improvements contribute to lower maintenance costs and higher long-term reliability.
Installing a horizontal single-axis solar tracker provides numerous benefits for utility-scale PV projects:
Solar panels maintain an optimal angle to the sun throughout the day, generating significantly more electricity than fixed-tilt systems.
Higher energy output spreads project costs over more electricity production, reducing the Levelized Cost of Energy.
Automatic tracking eliminates manual adjustment while improving operational efficiency.
High-quality structural design, intelligent control systems, and durable components ensure stable long-term operation.
The system supports customized configurations for different module sizes, terrain conditions, and project requirements.
Kseng Energy Single Axis Solar Trackers are widely used in:
Utility-scale solar power plants
Large ground-mounted photovoltaic projects
Desert solar farms
Agricultural photovoltaic (Agri-PV) projects
Industrial renewable energy projects
Government clean energy infrastructure
Kseng Energy is committed to delivering reliable and intelligent solar mounting solutions for global renewable energy projects.
Our Single Axis Solar Tracker combines:
AI intelligent tracking technology
High-precision positioning
Durable structural design
Excellent environmental adaptability
Easy installation and maintenance
Lower operation and maintenance costs
Increased annual energy production
Whether for large utility-scale PV plants or customized ground-mounted projects, Kseng Energy provides professional solar tracking solutions that maximize return on investment.
As photovoltaic technology continues to evolve, Single Axis Solar Trackers have become an essential solution for improving power generation efficiency and reducing project costs. By intelligently following the sun throughout the day, these systems significantly increase energy yield while enhancing the long-term performance of solar power plants.
Kseng Energy's advanced Single Axis Solar Tracker combines AI-based control, precise tracking, durable construction, and innovative structural design to help developers achieve higher efficiency, greater reliability, and lower LCOE in utility-scale solar projects.
FAQ
A Single Axis Solar Tracker is a solar mounting system that automatically rotates photovoltaic (PV) panels along one axis, typically from east to west, following the sun's daily movement. Compared with fixed-tilt systems, single-axis trackers can significantly increase energy production by keeping solar modules at an optimal angle throughout the day.
A Single Axis Solar Tracker works by using an intelligent controller, drive motor, and astronomical tracking algorithm to continuously adjust the position of solar panels. Kseng Energy's tracker combines an astronomical algorithm with AI-based closed-loop control to calculate the sun's position in real time, ensuring accurate tracking and maximizing solar energy capture.
Compared with fixed-tilt solar mounting systems, a Single Axis Solar Tracker can typically increase annual energy production by 15% to 25%, depending on project location, climate conditions, and solar irradiance. Kseng Energy's optimized rotating center of gravity design can further improve power generation by an additional 1%–2%.
The main advantages include:
Higher solar energy yield
Improved return on investment (ROI)
Lower Levelized Cost of Energy (LCOE)
Intelligent automatic tracking
Reduced maintenance requirements
High tracking accuracy (±1°)
Reliable operation under harsh environmental conditions
These benefits make single-axis trackers an ideal solution for utility-scale solar power plants.
Kseng Energy's Single Axis Solar Tracker provides a ±60° tracking range, which can also be customized according to project requirements. This wide rotation angle enables solar panels to capture more sunlight throughout the day.
Kseng Energy's tracking system supports both RS485 wired communication and LoRa wireless communication, providing flexible monitoring and easy integration into utility-scale photovoltaic power plants.
Yes. Kseng Energy's Single Axis Solar Tracker is designed for demanding outdoor environments. It operates within a temperature range of -30°C to +60°C, offers wind protection of 18 m/s or higher, and complies with international design standards including GB, ASCE, BS, and EN.
Backtracking is an intelligent function that automatically adjusts the angle of solar panels during early morning and late afternoon to reduce row-to-row shading. This helps maximize overall power generation while preventing energy losses caused by module shading.
Single Axis Solar Trackers are widely used in:
Utility-scale solar power plants
Ground-mounted PV projects
Large commercial solar farms
Agricultural photovoltaic (Agri-PV) systems
Desert solar installations
Industrial renewable energy projects
They are especially suitable for projects requiring maximum energy output and lower LCOE.
Kseng Energy's Single Axis Solar Tracker combines advanced AI control technology with durable mechanical design to deliver superior performance.
Key advantages include:
AI-based closed-loop tracking control
High tracking accuracy (±1°)
Innovative rotating center of gravity design
Reduced torque tube stress
Lower motor operating power
Higher energy yield
Easy installation and maintenance
Long-term reliability for utility-scale solar projects
