Flat roofs provide valuable space for commercial, industrial, and residential solar installations. However, designing a reliable flat roof PV mounting structure requires more than simply placing solar panels on a roof. The mounting layout, roof condition, wind exposure, snow load, ballast weight, module orientation, and structural connections all need to be considered before installation.
A properly engineered flat roof solar mounting system can improve installation safety, protect the roof, optimize available space, and provide long-term structural stability. Kseng offers a range of flat roof mounting solutions, including ballasted and adjustable mounting structures designed for different project requirements.
This guide explains the key principles of flat roof PV mounting structure layout and load design, helping solar developers, EPC contractors, installers, and building owners understand the most important factors when planning a rooftop PV project.

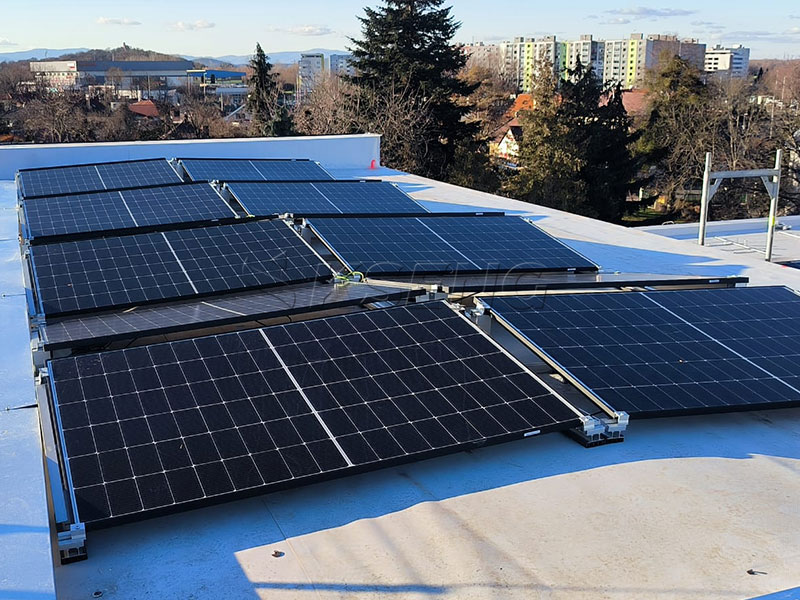

A flat roof PV mounting structure is the support framework used to secure photovoltaic modules on a roof with little or no natural slope. Unlike pitched-roof solar installations, flat roof systems usually require the mounting structure to create an appropriate module tilt angle while transferring structural loads safely to the roof.
A typical flat roof mounting system may include:
Front and rear support legs
Aluminum or steel mounting rails
Module mid clamps and end clamps
Ballast trays or ballast plates
Connectors and fasteners
Reinforcing beams where required
Protective pads between the mounting structure and roof surface
For non-penetrating installations, ballast can provide the required resistance against wind uplift without drilling through the roof membrane. Kseng's flat roof ballast solutions use aluminum and stainless-steel components and can be configured for different module orientations and project conditions.
Before developing the PV layout, the existing roof should be evaluated.
The assessment should consider:
Roof construction and structural system
Existing dead loads
Allowable additional roof load
Roof membrane and waterproofing condition
Existing equipment and obstacles
Drainage routes
Parapets and roof edges
Local wind conditions
Local snow loads
Maintenance access requirements
This step is particularly important for ballasted systems because the ballast required to resist wind uplift adds additional dead load to the roof.
A structural engineer should verify that the roof can safely support the proposed PV system under applicable local building codes and project-specific loading conditions.
An efficient flat roof solar mounting structure layout should balance energy generation, structural performance, maintenance access, and available roof area.
Common layout decisions include:
Solar panels can generally be installed in portrait or landscape orientation, depending on the mounting system and project requirements.
The selected orientation affects:
Rail positioning
Support spacing
Wind exposure
Panel density
Walkway requirements
Available roof area
Kseng's flat roof mounting solutions can support both framed and frameless modules, with different configurations available for project-specific applications.
Flat roofs normally require a mounting angle to improve solar exposure and facilitate the desired array configuration.
The optimum angle depends on:
Project latitude
Annual energy production objectives
Roof area
Wind conditions
Row-to-row shading
Local regulations
Module dimensions
A higher tilt angle can improve solar incidence in some locations, but it may also increase wind exposure and row spacing requirements. Therefore, tilt angle should be considered together with structural and aerodynamic design.
Row spacing must prevent excessive inter-row shading while maintaining efficient use of roof space.
Designers should evaluate:
Solar altitude
Module dimensions
Tilt angle
Site latitude
Seasonal shading
Required maintenance paths
For commercial rooftop systems, maximizing the number of modules is not always the best approach. A balanced layout can provide better long-term accessibility and reduce maintenance difficulties.
Wind is one of the most important considerations in flat roof solar mounting design.
A rooftop PV array can experience both downward wind pressure and upward wind uplift. Edge and corner zones of a roof can be particularly exposed to increased wind effects.
A proper solar mounting wind load calculation should consider:
Basic wind speed
Building height
Roof geometry
Roof exposure
Roof edge and corner zones
Module tilt angle
Module dimensions
Array configuration
Mounting system geometry
Ballast weight
Connection strength
Wind loads should be calculated according to the applicable local structural standard rather than relying on a generic ballast value.
For example, Kseng lists AS/NZS 1170 for certain flat roof mounting systems and provides product configurations rated for wind loads up to 60 m/s, depending on the specific system. These figures should not be treated as universal project design values; the final design must be verified against the actual site conditions and applicable standards.
Snow load is another critical factor for rooftop PV systems in cold climates.
The design should consider:
Ground snow load
Roof snow load
Module tilt
Snow accumulation
Drifting near parapets
Local roof geometry
Structural capacity of the roof
Additional ballast and mounting weight
A PV structure must be capable of transferring snow loads from the modules through the rails and supports and ultimately into the building structure.
Kseng's published flat roof mounting products specify snow load capacities such as 1.4 kN/m² for particular configurations. Actual design values must always be determined according to the project location, applicable building code, roof structure, and selected mounting configuration.
One of the most important design decisions is whether to use a ballasted or mechanically attached mounting system.

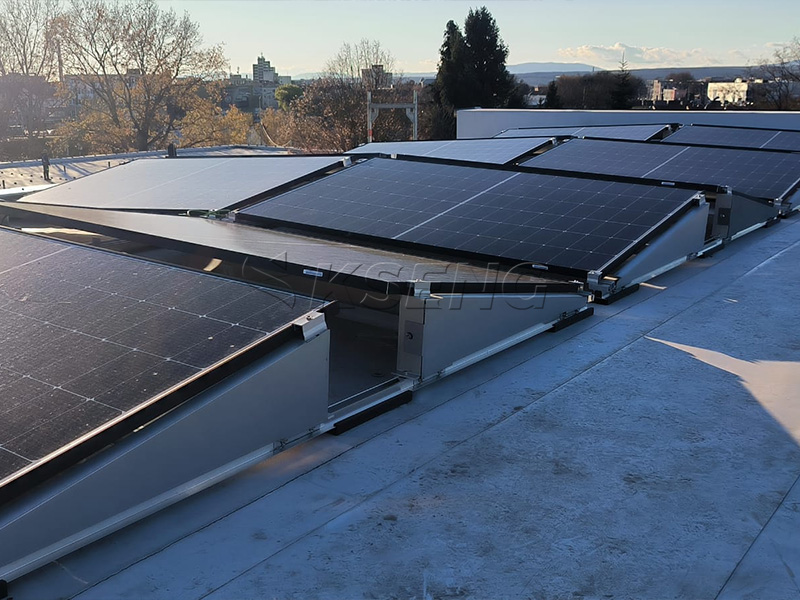

A ballasted solar mounting system uses ballast, such as concrete blocks or ballast plates, to resist wind movement without penetrating the roof membrane.
Main advantages include:
No roof penetration in suitable applications
Reduced risk of membrane penetration
Faster installation
Modular system configuration
Easy adjustment of array layout
Compatibility with many flat roof applications
However, ballast increases the dead load imposed on the roof, so structural verification is essential.
Mechanically attached systems use anchors or other fasteners to connect the PV structure to the building structure.
They can be suitable where:
Wind loads are high
Roof structure permits attachment
Ballast weight would be excessive
Local regulations require mechanical fixing
Penetrating systems require careful waterproofing and flashing details to maintain roof integrity.
A well-designed PV mounting structure creates a continuous load path.
The typical load path is:
Solar Module → Module Clamp → Rail → Beam/Support → Ballast or Roof Attachment → Building Structure
Each component must be designed to transfer the expected forces without excessive deformation or failure.
Key structural components include:
Rails directly support the modules and transfer loads to the supporting structure. Aluminum alloy rails are commonly used because of their combination of low weight, corrosion resistance, and structural performance.
The support legs establish the module tilt angle and transfer vertical and horizontal forces to the roof or ballast system.
Ballast plates distribute ballast and help transfer stabilizing forces into the mounting structure.
Mid clamps, end clamps, bolts, connectors, and other fasteners form critical structural connections. Even small connection components must be selected according to the required loads and material compatibility.
Kseng uses aluminum alloy and stainless-steel components across its mounting solutions, with corrosion-resistant surface treatments intended for long-term outdoor applications.
Material selection directly affects the durability and structural performance of a solar mounting system.
Common materials include:
Aluminum Alloy
Lightweight
Corrosion resistant
Easy to process
Suitable for many rooftop applications
High strength-to-weight ratio
Stainless Steel
High corrosion resistance
Suitable for fasteners and connectors
Useful in demanding outdoor environments
Galvanized or Coated Steel
High structural strength
Suitable for heavy-duty applications
Often used where higher load capacity is required
Material compatibility should also be considered to reduce the risk of galvanic corrosion between dissimilar metals.
The roof perimeter requires special attention during layout and load design.
PV modules positioned close to roof edges can experience greater wind effects than modules located in the central roof zone.
Designers may therefore need to consider:
Increased ballast
Additional fixing points
Reduced module spacing
Reinforced mounting components
Appropriate setbacks from roof edges
Parapet geometry
The exact requirements depend on local wind standards and building characteristics.
Solar mounting structures should never obstruct the roof's drainage system.
During layout design, installers should identify:
Roof drains
Drainage channels
Scuppers
Expansion joints
Roof penetrations
HVAC equipment
Maintenance access routes
For non-penetrating systems, protective pads may also be used between mounting components and the roof membrane where required by the roof manufacturer or system design.
Protecting the waterproofing layer is particularly important because a rooftop solar system is expected to operate for decades.
A good PV layout should provide sufficient access for installation, inspection, cleaning, and maintenance.
Designers should avoid creating inaccessible areas around:
Roof drains
HVAC equipment
Electrical equipment
Fire access routes
Expansion joints
Roof access points
Maintenance pathways should be considered during the initial design rather than added after the panels have been installed.
A flat roof solar system should not be designed only from module dimensions.
A professional design should combine:
Roof structural assessment
Module layout
Mounting system selection
Wind load calculation
Snow load calculation
Ballast calculation
Connection verification
Roof waterproofing requirements
Drainage and access planning
Applicable local standards
This integrated approach helps prevent common problems such as excessive ballast, insufficient wind resistance, overloaded roof areas, poor drainage, difficult maintenance access, and structural deformation.
Kseng states that its R&D team provides structural design and load calculation support and that its mounting products are developed for residential, commercial, and utility-scale solar applications.
Before finalizing a project, the following items should be reviewed:
Roof structural capacity
Module dimensions and weight
Module orientation
Tilt angle
Row spacing
Wind speed
Wind uplift
Snow load
Ballast requirements
Roof edge zones
Drainage
Waterproofing
Material compatibility
Fastener strength
Maintenance access
Local building codes
Project-specific engineering requirements
A reliable flat roof PV mounting structure is the foundation of a safe and durable rooftop solar installation. Successful design requires more than selecting a mounting bracket—it requires an integrated assessment of roof capacity, module layout, wind load, snow load, ballast, connections, drainage, and installation requirements.
Ballasted mounting systems can provide an efficient non-penetrating solution for many flat roof applications, while mechanically attached systems may be appropriate for projects with higher wind loads or specific structural requirements.
By combining an optimized flat roof solar mounting system with project-specific structural calculations and professional installation, solar developers can make better use of available rooftop space while maintaining long-term system stability and roof protection.
For project-specific requirements, Kseng Energy's flat roof mounting solutions include adjustable, ballasted, and other flat roof PV mounting configurations for different solar applications.
