2.0

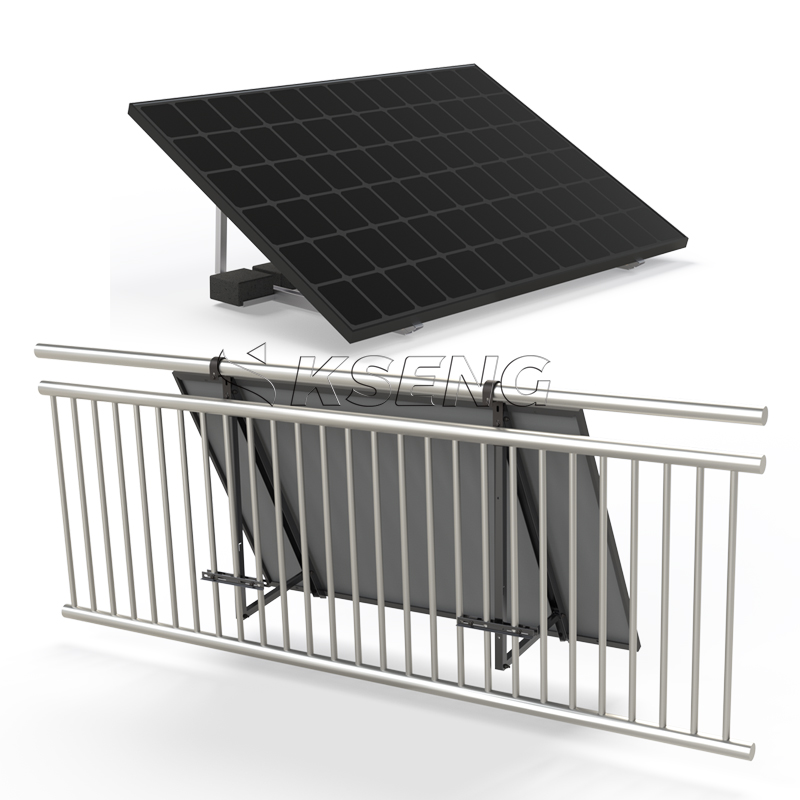

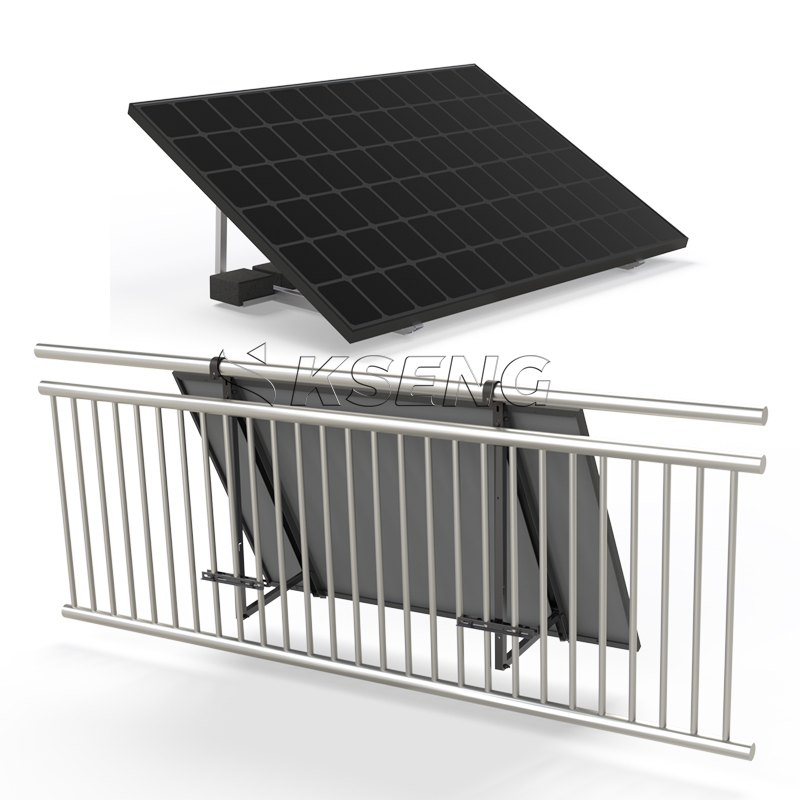

As a premier manufacturer and global supplier of renewable energy support structures, we present the Universal Easy Solar Panel Kit. Engineered for volume deployment and rapid project turnaround, this premium flat-roof and balcony mounting system transforms unused spaces into high-yield energy hubs. Packaged efficiently for large-scale distribution, it ensures seamless integration for extensive commercial portfolios and residential installations alike, offering exceptional reliability and streamlined logistics.
Fits all framed modules ≤1134 mm in width
20°-35° adjustable tilt for seasonal optimization
Tool-free, rapid installation in under 30 minutes
EU-stocked inventory for immediate regional dispatch
Turn wasted space into clean energy with the Universal Easy Solar Panel Kit—the premium flat-roof and balcony mounting system that ships in one compact box and installs in under 30 minutes. Crafted from cool, sleek 6005-T5 aluminum, the structure feels exceptionally robust to the touch, reflecting a meticulous manufacturing process designed for uncompromising stability. When you secure the clamps, the satisfying mechanical click confirms a flawless, secure fit, eliminating the guesswork from your assembly process. This is not just a simple bracket; it is a meticulously engineered foundation that protects valuable solar investments while maximizing their energy output through precise angle positioning.
By integrating seamlessly into urban environments, this mounting framework elevates the aesthetic of any flat roof, garden, or balcony. The thoughtfully built-in wiring channels hide unsightly cables, leaving a clean, polished look that property owners and facility managers demand. Every component is precision-machined, offering a smooth, anodized finish that repels moisture and resists the harsh elements of nature. Whether outfitting a sprawling commercial flat roof or deploying across multiple residential complexes, this solar structure delivers an unparalleled combination of elegance, structural integrity, and rapid deployment, significantly reducing labor time on-site.
| Specification | Details |
|---|---|
| Product Name | Universal Easy Solar Panel Kit Flat Roof Garden Balcony Mounting System |
| Application Scenarios | Flat-roof, Balcony, Garden |
| Panel Width Compatibility | Fits all framed modules ≤1134 mm |

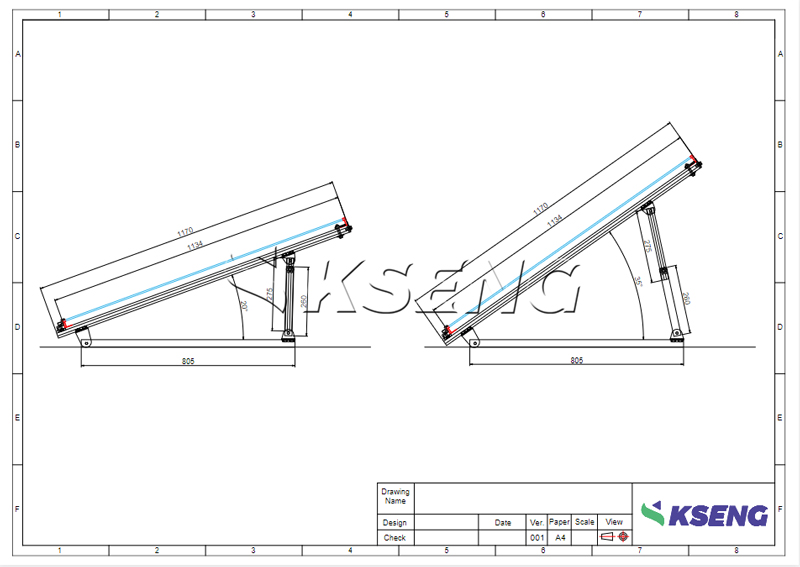

| Tilt Angle Range | 20°-35° adjustable (for winter/summer optimization) |
| Wind Load Resistance | Certified 40 m/s |
| Snow Load Resistance | 1 kN/m² |
| Main Materials | 6005-T5 aluminum + SUS304 stainless steel |
| Installation Time | Under 30 minutes |
| Installation Method | Tool-free installation, Ballast feet (no roof penetration) |
| Cable Management | Built-in wiring channels in rails |
| Scalability | Modular rail length (allows adding extra panels without new parts) |
| Logistics & Packaging | EU Stock, Ships in one box |
| Certifications | CE, TÜV Rheinland, ISO 9001 |
| Product Warranty | 10-year product warranty |
| Performance Guarantee | 25-year linear performance support |
Designed to address the most pressing challenges of modern photovoltaic deployments, this mounting structure combines intuitive engineering with heavy-duty performance. It is tailored to optimize both the installation experience and the long-term energy generation capabilities of the solar array.
Intelligent Cable Routing: Internal pathways protect wiring from UV degradation while maintaining a pristine exterior appearance.
Adaptive Footing: Specialized ballast feet provide immense friction and stability on delicate membranes without requiring destructive drilling.
Precision Adjustability: Smooth gliding tracks allow for exact degree modifications, ensuring peak solar capture regardless of geographic latitude.
Compact Transport: Engineered to fit entirely within a single, easily manageable package, streamlining site logistics and reducing freight footprints.
Protecting infrastructure investments requires uncompromising material quality. This solar mounting structure is forged from premium-grade 6005-T5 aluminum and reinforced with SUS304 stainless steel fasteners. The tactile solidity of the metal conveys its superior manufacturing standards, offering a flawless, anodized surface that repels moisture and resists severe environmental degradation.
Exceptional Salt Mist Resistance: The deeply anodized aluminum frame withstands coastal climates and industrial pollution, preventing oxidation and maintaining structural integrity.
Heavy-Duty Fasteners: SUS304 stainless steel components ensure that critical connection points remain permanently tight and rust-free, eliminating the risk of mechanical failure.
Extended Lifecycle Assurance: Engineered specifically for a 25-year operational lifespan, this system significantly reduces replacement cycles and long-term maintenance expenditures.
Thermal Stability: The premium alloys maintain their rigid form even under extreme temperature fluctuations, preventing warping, expansion stress, or micro-fractures.
In regions where manual labor significantly impacts project budgets, rapid deployment is essential. This kit redefines site execution with its highly pre-assembled components and intuitive, tool-free locking mechanisms. Installers will experience the seamless glide of rails snapping into ballast feet, accompanied by a distinct mechanical click that guarantees a secure lock without the need for heavy power tools.

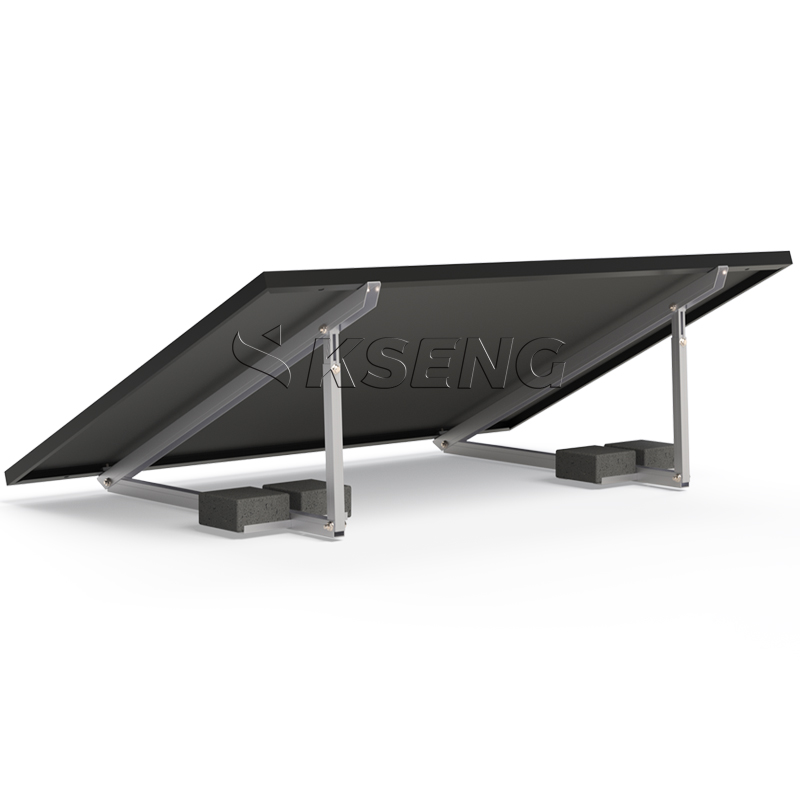

Zero Roof Penetration: The intelligent ballast foot design utilizes weighted blocks, completely preserving the integrity of delicate roof membranes, tiles, and waterproofing layers.
Under 30-Minute Execution: Highly pre-assembled parts allow a single technician to complete the mechanical installation in a fraction of the traditional time.
Tool-Free Assembly: Snap-and-lock rails eliminate the need for complex torque calibrations, reducing on-site errors and the need for specialized equipment.
Streamlined Workforce Allocation: By cutting installation time drastically, procurement and project managers can deploy teams across multiple sites in a single day, optimizing labor resources.
When deploying energy assets in unpredictable climates, structural resilience is non-negotiable. This mounting framework has undergone rigorous aerodynamic and load-bearing testing to ensure absolute stability during severe weather events. The heavy-duty ballast configuration anchors the system firmly to the ground, providing an unshakeable foundation that protects delicate photovoltaic modules from micro-cracks induced by wind vibrations.
Certified Wind Endurance: Rigorously tested and certified to withstand gale-force winds up to 40 m/s, ensuring panels remain securely fastened during severe storms.
Superior Snow Load Capacity: Engineered to support heavy winter accumulations with a certified snow pressure resistance of 1 kN/m².
TÜV Rheinland Validation: Independent laboratory testing guarantees that the mechanical design meets the highest global safety and structural standards.
Vibration Dampening: The robust contact points absorb wind-induced vibrations, safeguarding the delicate internal solar cells from mechanical stress and degradation.
Maximizing energy capture requires precise alignment and universal adaptability. This system is meticulously designed to accommodate the industry's most popular wide-format modules, ensuring seamless integration regardless of the panel manufacturer. The smooth, friction-free tilt adjustment mechanism allows operators to easily modify the angle, capturing the optimal solar trajectory as the seasons change.
Universal Module Fit: The adjustable clamping system securely grips any framed solar panel with a width of up to 1134 mm, standardizing your inventory requirements.

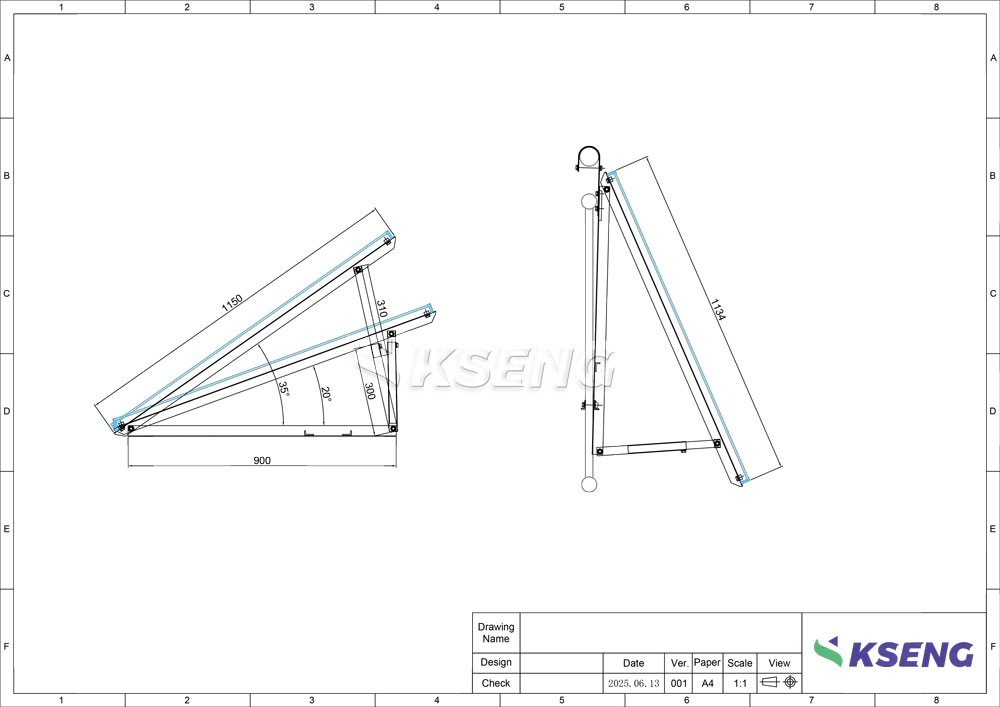

Seasonal Tilt Adjustment: A highly responsive 20°-35° variable tilt range empowers users to optimize sunlight absorption for both low winter sun and high summer peaks.
Enhanced Energy Yield: By maintaining the perfect perpendicular angle to the sun, the system significantly boosts the overall kilowatt-hour output of the array.
Frictionless Angle Locking: The precision-machined pivot points allow for smooth, effortless angle transitions without compromising the structural lock once set.
Urban environments demand flexible, space-efficient energy solutions. This mounting architecture features a highly adaptable modular rail system that grows alongside expanding energy requirements. The sleek, low-profile design integrates harmoniously into residential gardens, commercial flat roofs, and compact apartment balconies, ensuring that valuable real estate is utilized efficiently without creating visual clutter.
Seamless Expansion: The interlocking modular rail length permits the addition of extra solar panels at a later date without the need to purchase an entirely new base structure.
Integrated Cable Management: Specially designed wiring channels run seamlessly through the core of the rails, protecting cables from UV exposure and maintaining a pristine appearance.
Multi-Terrain Adaptability: The versatile ballast feet conform securely to various flat surfaces, including concrete, membrane roofs, and garden tiles.
Aesthetic Integration: The minimalist, industrial-chic design complements modern architecture, making it an attractive addition to highly visible urban spaces.
Procurement reliability is just as critical as product performance. By maintaining localized inventory, this solution guarantees uninterrupted project timelines and drastically reduced transit risks. Every unit is backed by a comprehensive suite of international quality certifications, providing absolute confidence in the manufacturing consistency and long-term viability of the product.
European Stock Availability: Strategically warehoused within the EU to ensure rapid dispatch, eliminating long international lead times and customs delays.
Optimized Packaging: The entire system ships in one intelligently organized box, minimizing freight volumes and simplifying on-site material handling.
Global Quality Standards: Manufactured under strict ISO 9001 quality control protocols, ensuring every batch meets exact dimensional tolerances.
Comprehensive Warranty Support: Backed by a solid 10-year product warranty and a 25-year linear performance guarantee, securing your investment for decades.
Partnering with a premier manufacturer means gaining access to unparalleled engineering expertise and supply chain reliability. We prioritize meticulous craftsmanship, utilizing advanced robotic welding and precision extrusion techniques to deliver flawless mounting structures. Our commitment to operational excellence ensures that every component shipped meets the rigorous demands of large-scale energy deployments and stringent local building codes.
Direct-from-Manufacturer Value: Eliminating intermediaries to provide premium-grade structures with highly competitive economics for volume procurement.
Rigorous Quality Assurance: Every batch of aluminum undergoes strict metallurgical testing to verify tensile strength and corrosion resistance before leaving the facility.
Dedicated Technical Support: Our team of structural engineers provides comprehensive guidance, from initial load calculations to on-site implementation strategies.
Sustainable Manufacturing: We employ eco-conscious production methods, minimizing waste and utilizing highly recyclable aluminum alloys to support green initiatives.
The system utilizes aerodynamically optimized ballast trays that hold standard concrete blocks or paving stones. This added weight, combined with high-friction rubber pads on the base, anchors the structure firmly against wind uplift and lateral sliding, entirely eliminating the need to drill into the roof membrane.
Yes, the structural design features easily accessible adjustment nodes. By simply loosening the tension on the telescopic support arms, technicians can smoothly transition the panel angle between 20° and 35° to match seasonal solar trajectories, then securely lock it back into place.
Thanks to the deep anodization of the aluminum and the inherent rust resistance of the SUS304 stainless steel, the system is virtually maintenance-free. We recommend a simple annual visual inspection to ensure all tool-free snap locks remain fully engaged and that the built-in wiring channels are clear of debris.
The rails are designed with standardized interlocking profiles. If you need to increase your energy output, you can simply slide and lock additional rail extension segments into the existing framework, allowing you to mount extra panels seamlessly without replacing any original parts.
Absolutely. The integrated wiring channels are engineered to accommodate standard PV cables, micro-inverter trunk cables, and necessary grounding wires. They keep the cables neatly organized, preventing them from resting in standing water and shielding them from direct UV degradation.
Turn wasted space into clean energy with the Universal Easy Solar Panel Kit—the flat-roof & balcony mounting system that ships in one box and installs in under 30 minutes.
Key specs
Panel width: fits all framed modules ≤1134 mm
Tilt range: 20°-35° adjustment for winter/summer optimization
Structural load: certified 40 m/s wind speed & 1 kN/m² snow pressure
Materials: 6005-T5 aluminum + SUS304
Tool-free install
Lay the ballast feet on your membrane or tiles—no roof penetration.
Snap rails into the feet until they click.
Slide your solar panel into the clamps, set the desired angle, tighten.
Done. Wiring channels are built into every rail for a clean look.
Built for cities
The modular rail length lets you add extra panels later without new parts.
Certifications & warranty
CE, TÜV Rheinland, ISO 9001. 10-year product warranty, 25-year linear performance support.
