Product Overview
Source premium renewable energy mounting solutions directly from a leading manufacturer and supplier. The Easy Install Solar Panel Universal Bracket Kit is engineered specifically for high-volume procurement and rapid deployment across diverse project sites, ensuring maximum structural reliability.
- Constructed from high-grade, lightweight aluminium for superior handling.
- Engineered for rapid, modular installation to reduce labor hours.

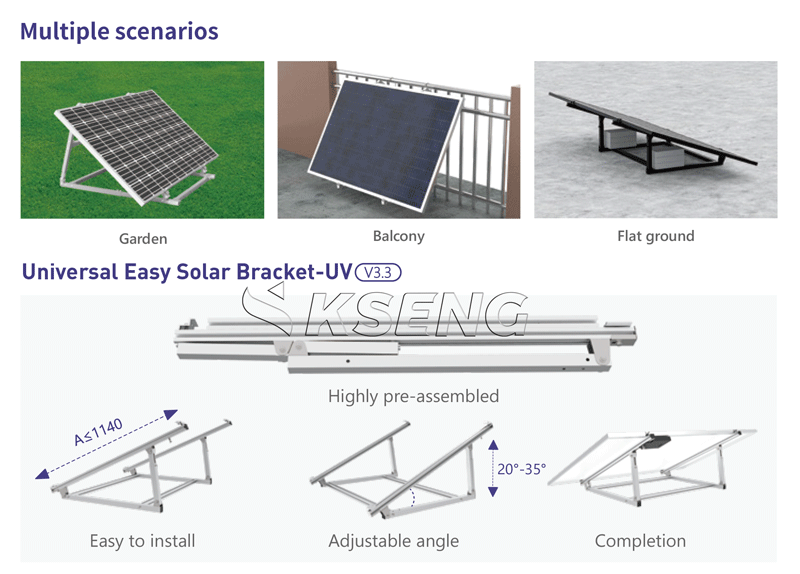

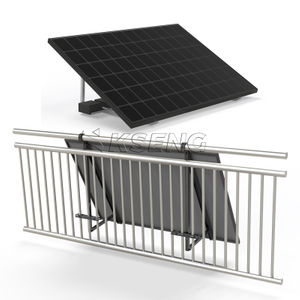

- Adaptable to diverse environments including walls, railings, and open spaces.
Product Description
The Easy Install Solar Panel Universal Bracket Kit represents the pinnacle of structural engineering for renewable energy infrastructure. Crafted from premium-grade aluminium, the metallic finish is not only visually sleek but also tactilely robust, offering a solid, unyielding foundation that feels virtually indestructible to the touch. When handled on-site, the lightweight nature of the metal contrasts perfectly with its structural rigidity, ensuring that installation crews can maneuver the components smoothly without experiencing physical fatigue. This meticulous craftsmanship translates directly into reduced labor hours and accelerated project timelines, providing a seamless operational flow for large-scale energy deployments.
Beyond its physical construction, this mounting solution is designed to resolve the most pressing challenges faced during outdoor energy installations. The precision-engineered joints and smooth, corrosion-resistant surfaces prevent the typical wear and tear associated with harsh environmental exposure. By integrating this kit into your energy portfolio, you are investing in a system that mitigates long-term maintenance costs and eliminates the unpredictability of structural degradation. It empowers project managers to deliver flawless, enduring solar arrays that consistently perform at peak efficiency, regardless of the geographical or meteorological challenges they might encounter in the field.
Product Specifications
| Material | Aluminium |
| Wind Resistance | Up to 40m/s |
| Snow Resistance | 1Kn/m |
| Load Capacity | 200kg |
| Adjustable Tilt Angle | 20° - 35° |
| Compatible PV Module Width | Up to 1180mm |
| Compatible PV Module Thickness | 28-45mm |
| Package Size | 1195*330*70mm |
| Installation Scenarios | Balconies, walls, railings, open spaces |
| Certification | TUV Certified |
Key Features & Highlights
Engineered to elevate the standard of solar infrastructure, this universal bracket kit combines architectural flexibility with uncompromising strength. Every component is tailored to streamline the deployment process while ensuring maximum energy yield.
- Exceptional Structural Integrity: Forged from premium aluminium, the framework resists mechanical stress, ensuring your solar arrays remain firmly anchored even under severe environmental pressures.
- Streamlined Modular Assembly: The intuitive design minimizes the need for specialized tooling, allowing field technicians to execute rapid, error-free installations that keep projects strictly on schedule.
- Unobtrusive Aesthetic Profile: The sleek, metallic finish integrates seamlessly into various architectural styles, maintaining the visual appeal of residential and commercial properties without compromising on industrial-grade performance.
- Optimized Thermal Management: The elevated mounting structure facilitates superior airflow beneath the photovoltaic modules, naturally cooling the system and preventing heat-induced efficiency losses.
- Universal Component Compatibility: Designed with versatile clamping mechanisms, it effortlessly secures a wide spectrum of panel dimensions, eliminating the need to source proprietary fittings for different project requirements.
Comprehensive Application & Performance Dimensions
To meet the rigorous demands of large-scale procurement and complex engineering projects, this mounting system is evaluated across six critical dimensions. Each aspect is meticulously optimized to deliver tangible operational and financial benefits to your supply chain.
- Advanced Material & Weather Endurance: Utilizing high-strength, lightweight aluminium alloy, this system is built to conquer extreme climates. With a tested wind resistance of up to 40m/s and a snow load capacity of 1Kn/m, the highly corrosion-resistant surface guarantees long-term outdoor safety and reliability, drastically reducing replacement cycles.
- Unmatched Adaptability & Compatibility: Sourcing managers require versatile solutions to match diverse inventory. This kit boasts extensive compatibility, supporting photovoltaic modules up to 1180mm in width and 28-45mm in thickness. Its dynamic design allows for flawless integration across balconies, concrete walls, metal railings, and open ground spaces.
- Minimized Installation & Maintenance Costs: Labor expenditure is a critical metric for any project. The highly modular architecture and user-friendly installation guide significantly lower the technical barrier and construction time. Furthermore, the robust aluminium framework demands virtually zero maintenance, optimizing the total cost of ownership over the product's lifecycle.
- Certified Safety & Performance: Compliance and quality assurance are non-negotiable. Backed by authoritative TUV certification and rigorously tested to sustain a 200kg load capacity, this bracket system provides an irrefutable quality endorsement, ensuring every installation meets stringent international engineering standards.
- Optimized Energy Yield via Angle Adjustment: Maximizing the return on investment relies heavily on solar capture efficiency. Featuring a flexible tilt angle adjustment ranging from 20° to 35°, this system empowers end-users to precisely calibrate their arrays according to local latitudinal sunlight variations, ensuring peak energy generation year-round.
- Strategic Packaging & Logistics Efficiency: For high-volume international trade, freight optimization is paramount. The ultra-compact single package dimensions of 1195*330*70mm dramatically enhance container loading rates. This strategic footprint slashes warehousing space requirements and significantly drives down cross-border transportation costs.
Why Choose Us
Partnering with a dedicated manufacturer means securing a supply chain that prioritizes precision, scale, and reliability. We empower your operations with infrastructure solutions that drive profitability and project success.
- Integrated Manufacturing Excellence: From raw material extrusion to final quality inspection, our vertically integrated production lines ensure absolute control over every structural detail and material specification.
- Scalable Production Capacity: Equipped to handle massive volume requirements, our facilities guarantee uninterrupted supply, ensuring your large-scale deployments are never delayed by inventory shortages.
- Stringent Quality Assurance: Every batch undergoes rigorous mechanical and environmental stress testing, ensuring that the products delivered to your sites perform flawlessly under real-world conditions.
- Dedicated Technical Support: Our engineering teams provide comprehensive guidance, from initial structural calculations to on-site implementation strategies, ensuring seamless project execution.
Frequently Asked Questions
Review these critical technical insights to understand how our mounting solutions integrate into your broader energy infrastructure projects.
How does the aluminium construction impact the overall structural load of the installation site?
The high-strength aluminium alloy provides an exceptional strength-to-weight ratio. It minimizes the dead load on existing structures like balconies or roofs while maintaining the rigidity required to support up to 200kg, ensuring structural integrity without requiring costly reinforcements.
Can the tilt angle be adjusted post-installation to accommodate seasonal solar shifts?
Yes, the system features a dynamic adjustment mechanism that allows technicians to modify the tilt angle between 20° and 35°. This flexibility is crucial for optimizing solar capture efficiency as the sun's trajectory changes throughout the year.
What specific measures ensure the system's resilience in high-wind environments?
The bracket kit is aerodynamically profiled and mechanically fastened to withstand wind speeds up to 40m/s. The precision-engineered locking joints prevent micro-vibrations, ensuring the modules remain secure during severe meteorological events.
How does the compact packaging design benefit large-scale procurement?
With package dimensions strictly controlled at 1195*330*70mm, the volumetric efficiency is maximized. This allows for higher density packing in standard shipping containers, directly reducing per-unit freight costs and optimizing warehouse storage density.
Is the system compatible with bifacial photovoltaic modules?
Absolutely. The clamping mechanism accommodates module thicknesses from 28-45mm and widths up to 1180mm. The elevated and unobstructed rear profile of the bracket ensures that bifacial panels can effectively capture albedo light from the mounting surface without structural interference.
