Introduction

The structural strength of a solar panel mounting system directly affects the safety, durability, and long-term performance of a photovoltaic (PV) installation. Solar mounting structures must support PV modules while withstanding wind, snow, rain, temperature changes, and other environmental loads.

A strong mounting system is not simply a matter of using more material. Proper material selection, structural design, reliable connections, and suitable foundations are all important for achieving the required strength without unnecessary cost.

1. Select Suitable Structural Materials

Material selection is one of the first factors affecting mounting system strength.

Aluminum, galvanized steel, and Zn-Al-Mg coated steel are commonly used in solar mounting applications. Steel generally provides high structural strength, while aluminum offers a favorable strength-to-weight ratio and corrosion resistance.

The material should be selected according to the project's load requirements, environmental conditions, and installation type.

2. Optimize Structural Design

A properly engineered solar mounting structure distributes loads efficiently across the entire system.

Important design considerations include:

PV module dimensions and weight

Support spacing

Structural span

Panel orientation

Mounting height

Connection configuration

Foundation conditions

Optimized design can improve structural performance while avoiding unnecessary material usage.

3. Account for Wind Loads

Wind is one of the most important environmental loads for solar mounting systems.

Strong winds can create pressure and uplift forces on PV panels and supporting structures. These forces can be transferred to rails, brackets, connections, and foundations.

The mounting system should therefore be designed according to local wind speed, terrain, panel configuration, and applicable structural standards.

4. Consider Snow Loads

For projects in snowy regions, accumulated snow can create significant downward loads.

Rails, brackets, support structures, fasteners, and foundations should have sufficient capacity for the expected snow load.

Panel tilt and array configuration can also influence snow accumulation and should be considered during system design.

5. Strengthen Structural Connections

Even strong structural profiles can perform poorly if their connections are inadequate.

Clamps, bolts, brackets, connectors, and fasteners should be properly matched and designed to transfer loads effectively.

Reliable connections can reduce movement, deformation, and loosening during long-term outdoor operation.

6. Improve Foundation Stability

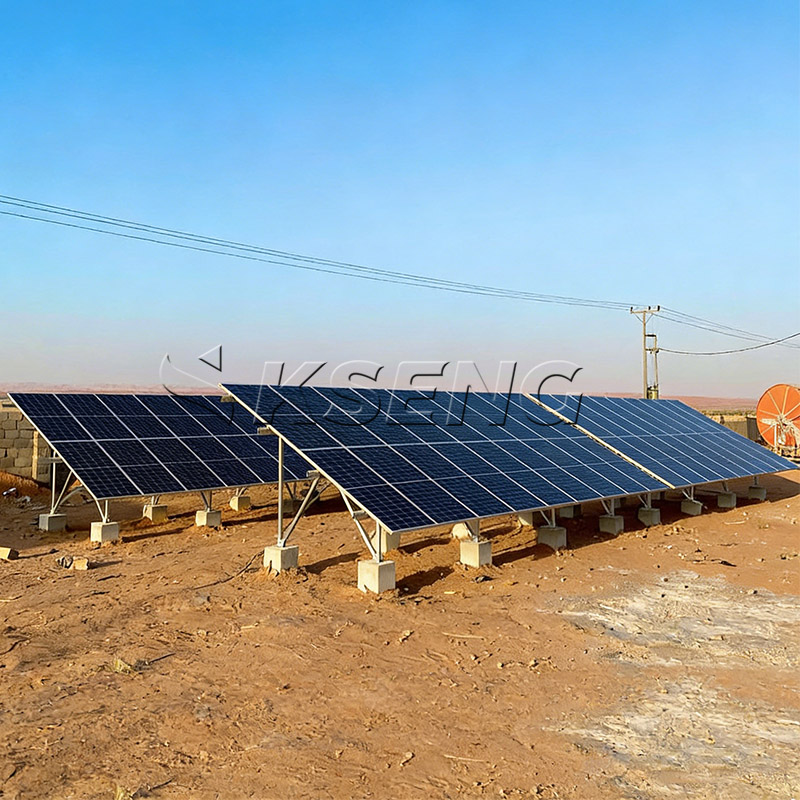

For ground-mounted solar systems, the foundation plays a critical role in structural strength.

A suitable foundation must transfer loads into the ground and resist wind uplift and other forces.

Soil type, terrain, groundwater conditions, foundation depth, and local construction requirements should be considered before selecting the foundation method.

7. Use Appropriate Support Spacing

Support spacing directly affects the load distribution of rails and structural profiles.

Excessive spacing can increase bending stress, while unnecessarily close spacing may increase material and installation costs.

Structural calculations can help determine an appropriate support arrangement based on panel size, load requirements, and material properties.

8. Consider Thermal Expansion

Solar mounting structures are exposed to repeated temperature changes.

Metal components expand and contract as temperatures fluctuate. Long rails and large PV arrays require suitable connection details to accommodate normal thermal movement.

Proper installation practices can help prevent excessive stress on rails, fasteners, and other components.

9. Improve Corrosion Protection

Corrosion can gradually reduce the effective strength of metal components.

Outdoor solar mounting systems should therefore use suitable corrosion-resistant materials and protective coatings. Aluminum, galvanized steel, and Zn-Al-Mg coated steel can provide different levels of protection depending on environmental conditions.

Coastal and humid projects require particular attention to corrosion resistance.

10. Ensure Proper Installation

A well-designed solar mounting system can still lose structural performance if installed incorrectly.

Installers should follow specified procedures for component positioning, bolt tightening, rail connections, clamps, and foundations.

Proper installation helps ensure that loads are transferred as intended and that the mounting structure performs according to its design.

How to Evaluate Solar Mounting System Strength

Before selecting a mounting system, buyers should check:

Material Specifications: Confirm material grade, thickness, and protective treatment.

Load Capacity: Verify wind, snow, and other applicable structural loads.

Connection Design: Evaluate clamps, brackets, fasteners, and rail connections.

Support Arrangement: Check whether spacing is suitable for the expected loads.

Foundation: Confirm compatibility with local soil and site conditions.

Engineering: Ensure the system is properly designed for the specific project.

Conclusion

Improving the structural strength of a solar panel mounting system requires more than simply increasing material thickness. A reliable solution combines suitable materials, optimized structural design, strong connections, appropriate support spacing, stable foundations, corrosion protection, and proper installation.

Wind loads, snow loads, thermal expansion, and local environmental conditions should all be considered during the design process.

By selecting a properly engineered solar mounting structure, PV developers and installers can improve system stability, reduce structural risks, and support reliable long-term solar energy generation.

FAQs

1. What determines the strength of a solar mounting system?

Material properties, structural design, support spacing, connection strength, foundation stability, and environmental loads all affect system strength.

2. How do wind loads affect solar mounting structures?

Wind can create pressure and uplift forces that place additional stress on PV panels, rails, connections, and foundations.

3. Why are connections important for mounting system strength?

Connections transfer loads between structural components. Reliable connections help prevent movement, loosening, and deformation.

4. Can stronger mounting systems reduce maintenance?

A properly engineered and durable structure can help reduce structural problems, premature component replacement, and corrective maintenance over the system's service life.
