Consistency with PV Module Lifecycle: Most crystalline silicon PV modules come with a 25-year linear power output warranty, retaining at least 80% of initial performance after 25 years. The mounting structure must match this lifespan to avoid premature replacement and ensure system integrity.
Project Investment & Financial Requirements: Solar power plants are large-scale capital-intensive projects. Banks and investors typically base loan terms and return expectations on a 25-year operational cycle. A reliable 25-year mounting system ensures project viability and return on investment.
Industry Standards & Certification: International standards such as IEC 62817 and Chinese standard T/CI 1083-2025 clearly stipulate that solar mounting structures (including fixed and tracking types) must have a design service life of 25 years. Compliance with these standards is mandatory for market access and project approval.
Harsh Environmental Challenges: Solar mounting systems operate outdoors for years, enduring wind, snow, extreme temperatures (-40°C to +85°C), UV radiation, sandstorms, and corrosive conditions (coastal salt spray, industrial acid rain). These factors continuously degrade material and structural performance, making 25-year durability a severe technical challenge.
Hot-Dip Galvanized Steel: For steel structures, we use high-strength Q355/Q235 structural steel. The hot-dip galvanizing process follows GB/T 13912-2002, with a minimum coating thickness of 85μm for sections ≥6mm and 65μm for thinner parts. This provides excellent cathodic protection and can resist corrosion for 25+ years in most environments.

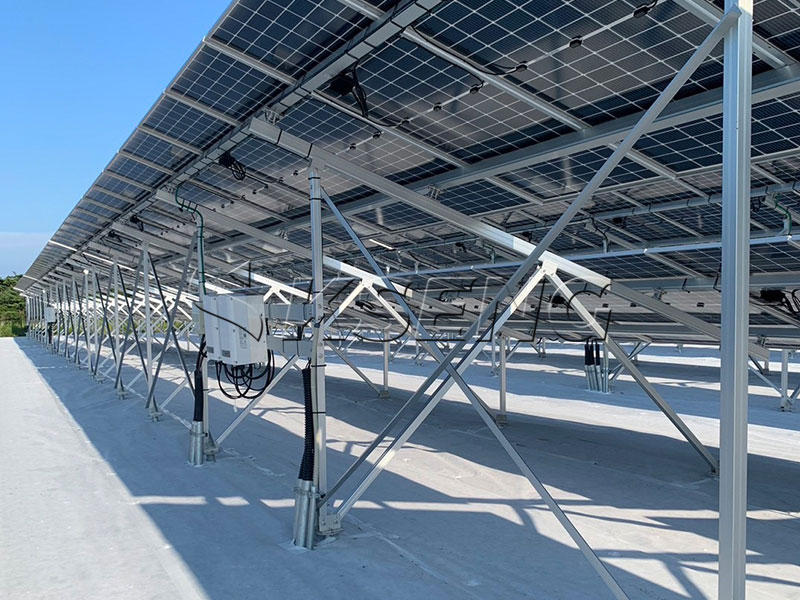

High-Strength Aluminum Alloy: Aluminum 6063-T6/6005A-T6 is used for lightweight, high-corrosion-resistance scenarios. It offers natural anti-corrosion properties, a strength retention rate >80% after 25 years, and is ideal for coastal and high-humidity areas.
Stainless Steel Fasteners: All connecting bolts and nuts use A4-80 (316) stainless steel, which resists salt spray and chemical corrosion far better than carbon steel, preventing loose connections from rust-induced failure.
Engineering Polymers: Non-metal components (bushings, caps) use UV-stabilized, glass-fiber-reinforced PA66, maintaining elasticity and strength across extreme temperatures for 25 years.
Enhanced Hot-Dip Galvanizing + Passivation: Our galvanizing process adopts alloyed zinc coating (100–120μm) with a zinc-iron alloy layer for stronger adhesion. Post-galvanizing nano-silane passivation replaces toxic chromium, boosting corrosion resistance by 30% and meeting EU RoHS.
Fluorocarbon/Polyurethane Powder Coating: For aluminum and high-end steel, we apply weather-resistant powder coatings (≥60μm) or fluorocarbon coatings (≥40μm) that resist UV, acid rain, and sand abrasion. Salt spray test performance exceeds 3000–5000 hours.
Localized Protection: Welds, cut edges, and drill holes receive touch-up zinc-rich paint or hot-dip spray zinc to eliminate corrosion-prone weak points.
Wind & Snow Load Optimization: Using CFD and finite element analysis (FEA), we simulate typhoons (up to 55m/s), blizzards, and seismic loads. Components are sized to retain >1.5x safety factor after 25 years of material aging.
Fatigue Resistance for Tracking Systems: Trackers undergo 9,125–18,250 motion cycles over 25 years. We use precision bearings, reinforced welds, and low-fatigue designs to avoid cracks from cyclic stress.
Modular & Redundant Design: Key connections use dual-bolt (10.9-grade) fastening. If one bolt fails, the other maintains 60% load capacity. Pre-installed adjustment mechanisms accommodate thermal expansion and foundation settlement.
Automated Precision Production: CNC cutting, robotic welding, and automatic galvanizing lines ensure dimensional accuracy and consistent coating quality.
Multi-Stage Testing:
Raw material tensile, yield, and coating thickness tests
Welding tension, bending, and ultrasonic inspection
Salt spray, UV aging, and temperature cycle tests
Wind tunnel and mechanical fatigue simulation (per IEC 62817)
Full Traceability: Each component has a unique code tracking material, production, and testing data for 25 years.
Installation Guidance: Professional training ensures correct torque, alignment, and waterproofing—critical for long-term stability.
Regular Inspection Checklist:
Annual: Bolt torque, coating integrity, structural deformation
5-Year: Fastener replacement, corrosion depth measurement
10-Year+: Comprehensive load testing and fatigue assessment
Digital Monitoring: Optional IoT sensors track vibration, tilt, and corrosion, enabling predictive maintenance.
Coastal Areas (Southeast Asia): Aluminum + fluorocarbon coating systems resist salt spray; 12-year operation shows no visible corrosion.
High-Altitude Cold Regions (Qinghai-Tibet): Galvanized steel structures withstand -40°C temperatures and strong UV; 10-year performance matches factory specs.
Typhoon Zones (S. China & Japan): Wind-optimized fixed/tracking mounts survived 17-typhoon winds with zero damage.
Large Utility Farms (Middle East): Tracking systems completed 100,000+ cycles with <0.1% failure rate.
Verify Standards Compliance: Ensure IEC 62817, local wind/snow code, and 25-year design life certification.
Check Material & Coating Specs: Confirm steel grade, galvanizing thickness, and alloy type.
Assess Design & Test Reports: Review FEA, wind tunnel, and fatigue test data.
Evaluate Manufacturer Capability: Choose experienced suppliers with in-house production and QC.
Confirm Warranty & O&M Support: Prefer 25-year material/structure warranties and global service.
