JL V2.1
Kseng

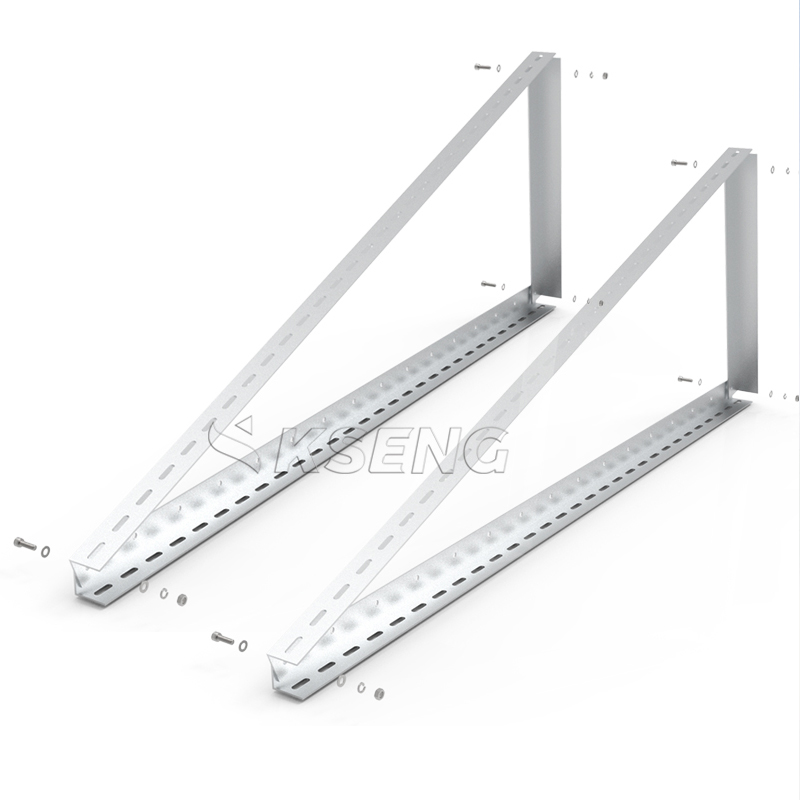

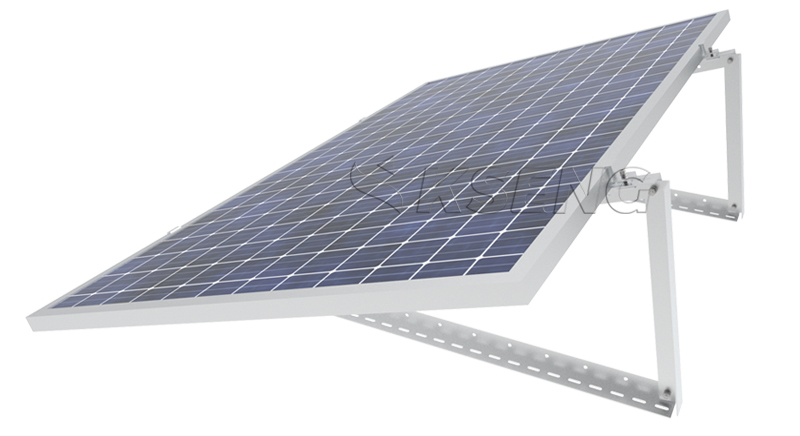

15°–30° Multi-Gear Angle Adjustment
Four adjustable hole positions correspond to 15°, 20°, 25°, 30° tilt angles respectively. Users can quickly switch the inclination by changing bolt fixing holes without extra cutting or modification, perfectly matching local sun altitude to boost solar output.

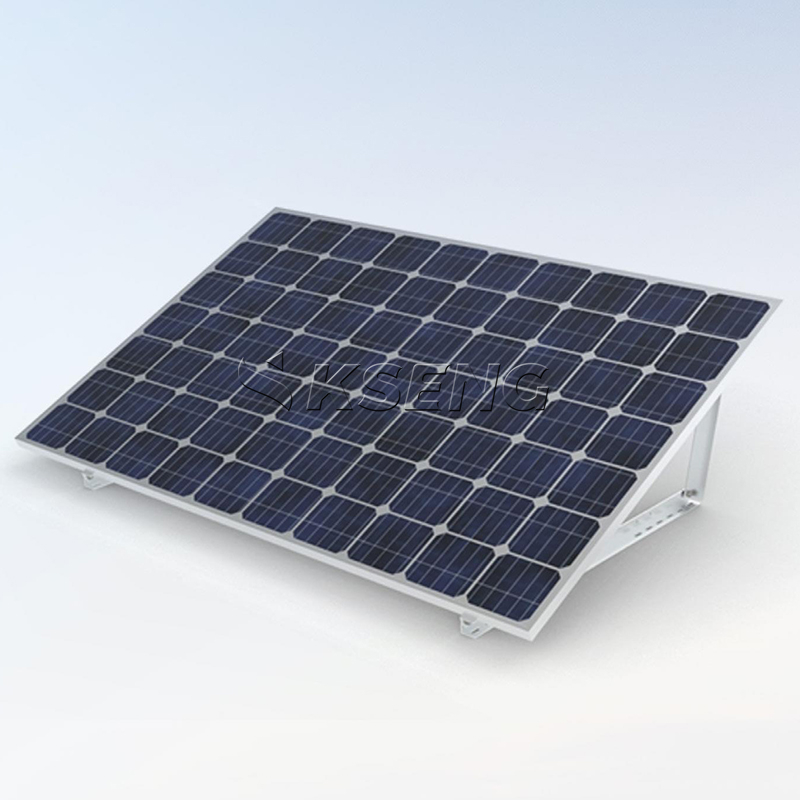

High-Strength AL6005-T5 Angle Aluminum Frame
Main bracket adopts AL6005-T5 tempered aluminum alloy with anodized surface treatment, lightweight but high load-bearing, excellent anti-rust and anti-corrosion performance for long-term outdoor use.

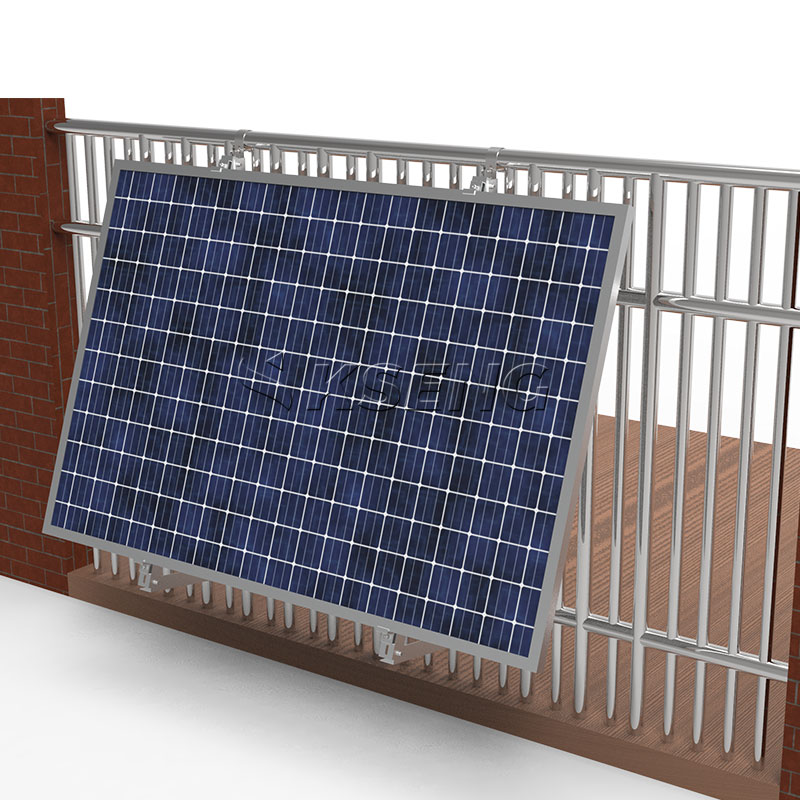

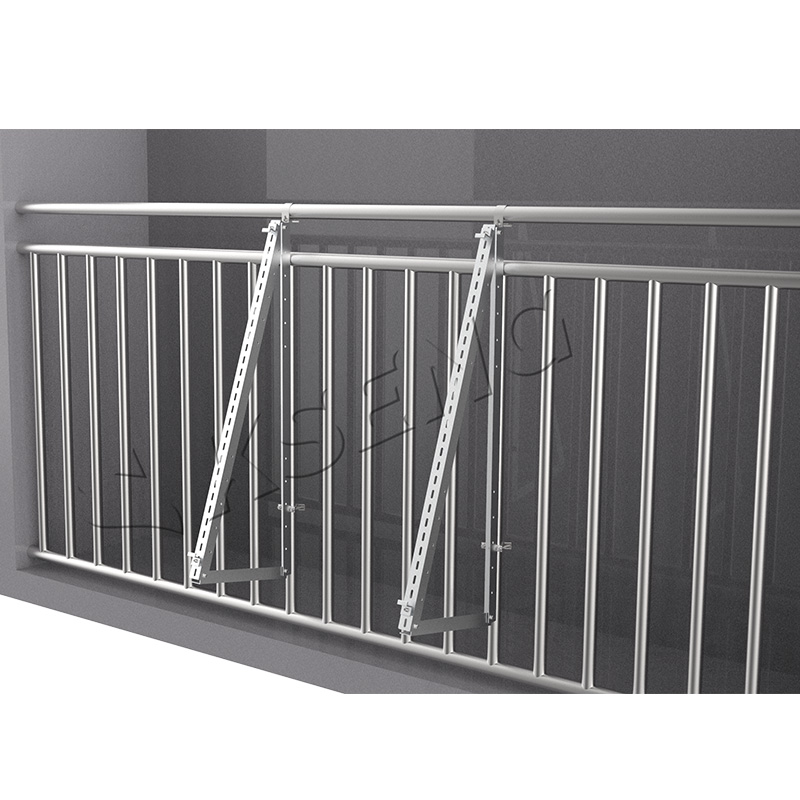

Dual Installation Modes: Ground & Balcony Railing
Two installation solutions available: unfolded tripod placed on flat ground; matched with balcony hook accessories to hang and fix on metal balcony railings, no destructive drilling required for buildings

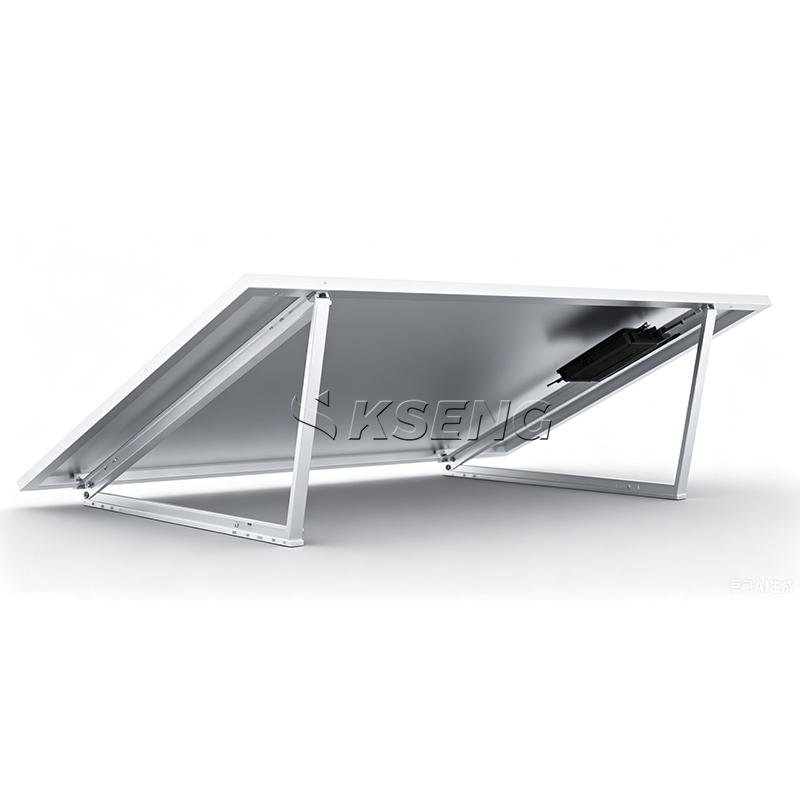

Integrated Design for Panels & Micro Inverters
Reserved fixing positions for solar panels and micro inverters on angle aluminum. Users can fasten PV modules and inverters on the same bracket for neat wiring and compact layout.
Foldable Structure for Convenient Transportation & Storage
The tripod can be folded flat before shipment, greatly saving packaging space and logistics cost, easy to carry for temporary off-grid solar equipment
| Item | Parameter |
|---|---|
| Main Material | AL6005-T5 Anodized Aluminum Angle |

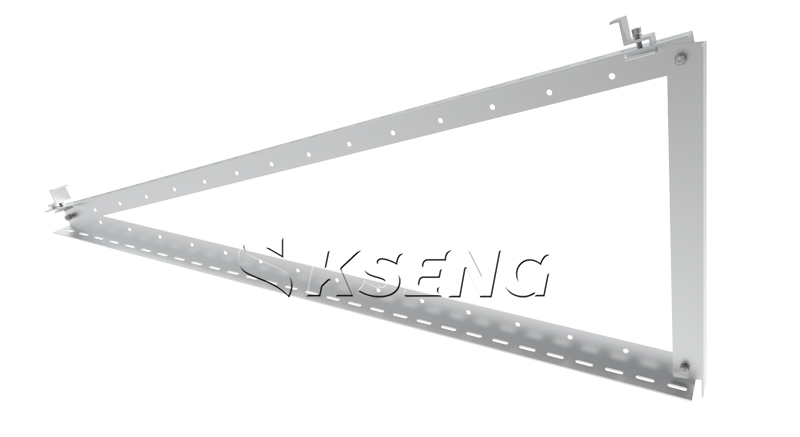

| Fastener Material | SUS304 Stainless Steel |
| Adjustable Tilt Range | 15°, 20°, 25°, 30° |

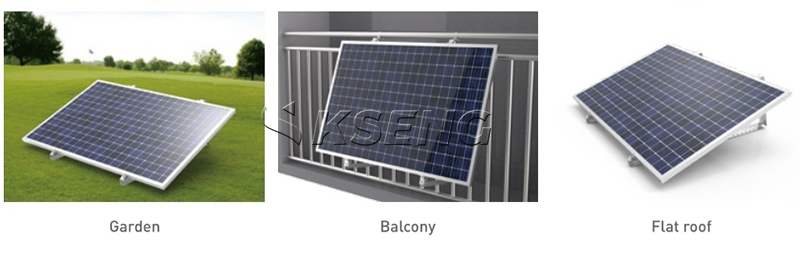

| Installation Scenarios | Flat ground, balcony metal railing, terrace |
| Surface Treatment | Hard anodizing, anti-corrosion |
Balcony small off-grid solar power stations
Terrace, garden flat ground solar panel installation
Temporary mobile PV systems for villas and small commercial spaces
Rental building balcony solar projects (non-penetrating mounting)
Q1: What tilt angles can this adjustable triangle solar bracket support?
A: Our KSENG JL V2.1 solar triangle bracket features multi-position pre-drilled holes to adjust tilt angles from 15° to 30°, including 15°, 20°, 25°, 30° options. You can easily switch angles to match local sunlight for higher power generation.
Q2: What material is the solar triangle bracket made of? Is it anti-corrosion for outdoor use?
A: The main frame adopts AL6005-T5 anodized aluminum alloy, all fasteners are SUS304 stainless steel. The anodized surface delivers excellent rust and corrosion resistance, suitable for long-term outdoor use in garden, balcony and flat roof environments.
Q3: Which installation scenarios are compatible with this solar adjustable tripod bracket?
A: It supports 3 mainstream application scenarios: flat garden ground, balcony metal railing and terrace flat roof. No destructive drilling is required for balcony installation, friendly for rented buildings and small PV systems.
Q4: Is the triangle solar bracket easy to assemble? Do you supply all matching accessories?
A: Yes, pre-drilled precise holes simplify assembly greatly. The full kit contains all SUS304 bolts, fixing hooks and connecting plates. Only simple hand tools are needed, no extra cutting or processing required.
Q5: Can this adjustable solar tripod be folded to save transport and storage space?
A: Absolutely. The bracket adopts foldable triangular structure. It can be disassembled and folded flat before delivery, effectively reducing packaging volume, lowering logistics cost and convenient for storage when not in use.
