Product Overview

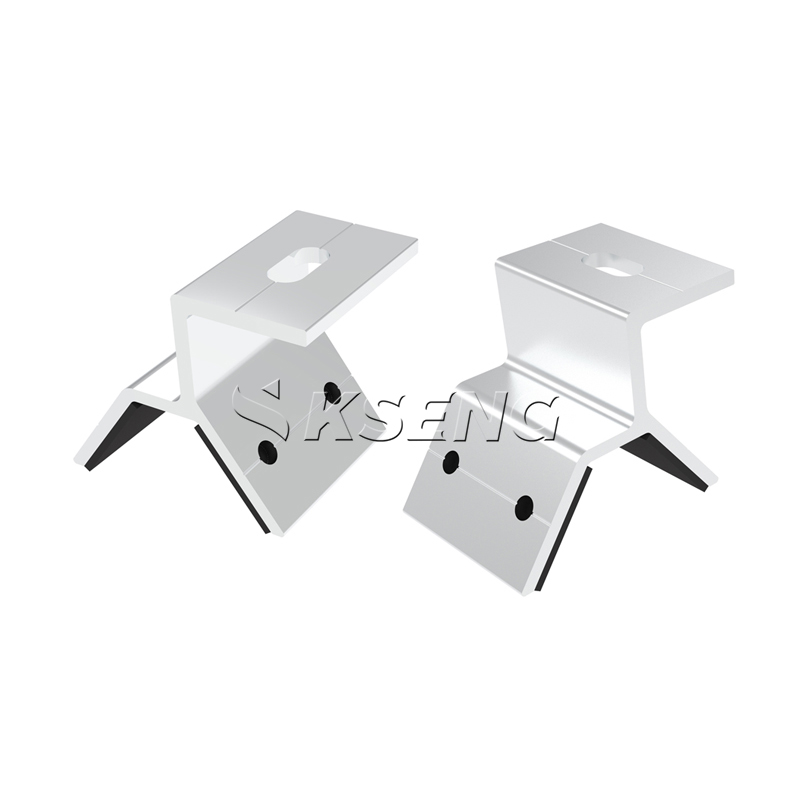

Kseng drill type trapezoidal metal roof solar clamp is a reliable bolt-down mounting accessory designed for solar panel installation on trapezoidal corrugated metal roofs. Different from non-penetration clips, this fixture requires drilling on metal roof sheets and fastens with SUS304 bolts for ultra-stable fixation, ideal for areas with strong wind or heavy snow load. The main body is anodized AL6005-T5 aluminum alloy, all matching fasteners and waterproof gaskets are SUS304 stainless steel, adapting to coastal salt fog, high temperature and rainy outdoor environments with a 25+ year service life.
Material Advantages
Main Bracket: AL6005-T5 extruded aluminum alloy, high tensile strength, lightweight, anodized anti-oxidation treatment, durable for long-term outdoor use.
Fasteners & Washers: SUS304 stainless steel, rust-proof, acid & alkali resistant, no corrosion under harsh climate.
EPDM Waterproof Rubber Pad: Attached at the drilling contact point, fills gaps between clamp and roof sheet, completely prevents rainwater seepage from drill holes.
Core Product Features

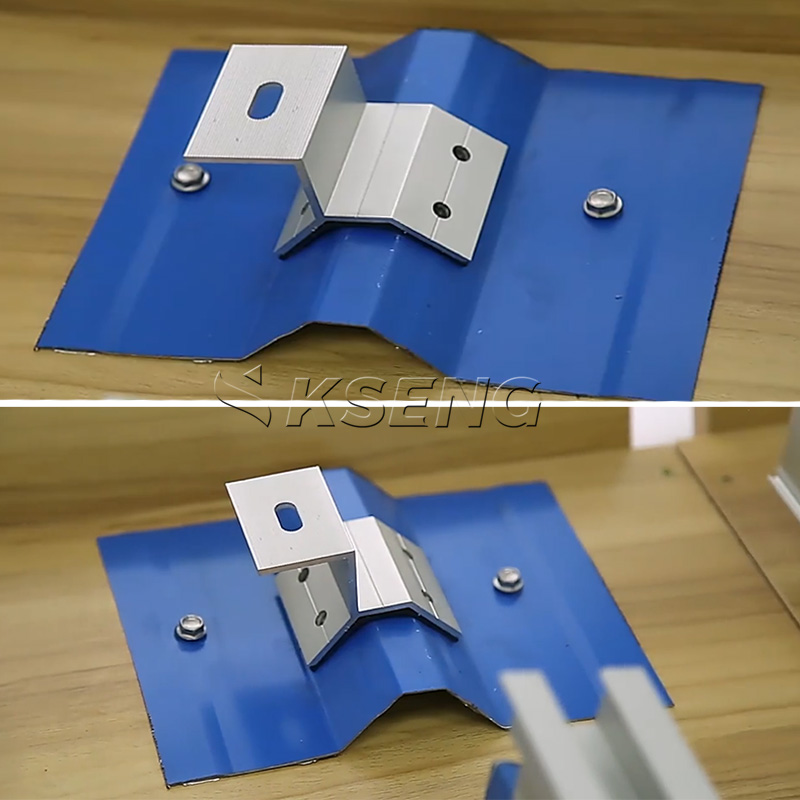

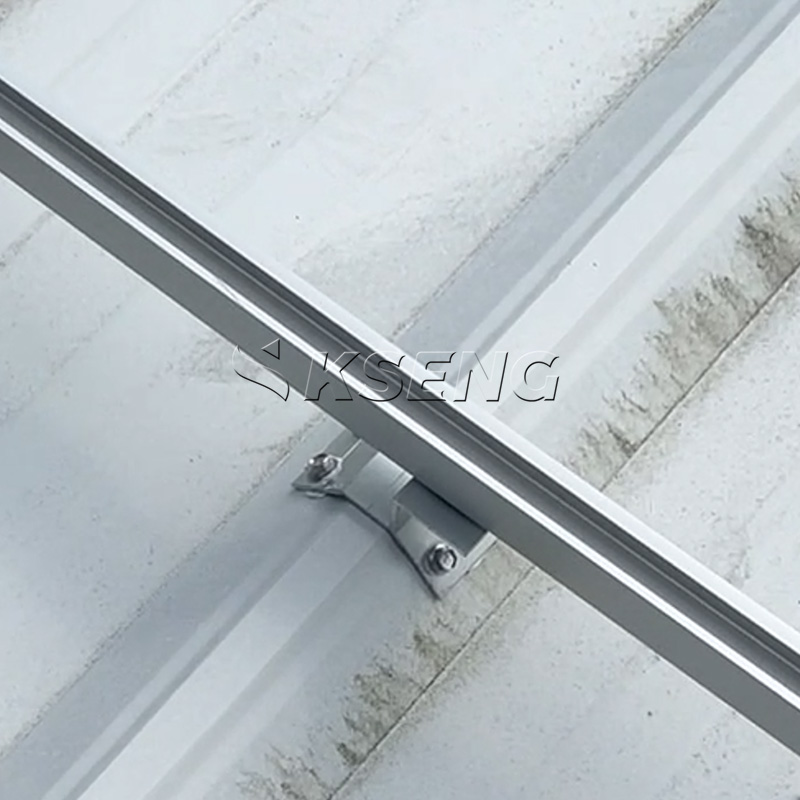

Bolt-down drilling installation: Drill holes directly on trapezoidal metal roof panels and lock the clamp with stainless steel bolts, ultra-firm fixation, superior wind and snow load capacity.
Built-in waterproof protection: EPDM sealing gaskets eliminate leakage risks at drilling positions, solve the hidden danger of water seepage for drilled roof solar mounts.
Adjustable oval slotted design: Long waist hole on the top bracket allows free horizontal adjustment of PV rails, flexible alignment for all framed solar panels.
Wide roof compatibility: Fits most mainstream trapezoidal rib metal roof profiles, widely applicable to factory workshops, logistics warehouses, large agricultural sheds and commercial buildings.

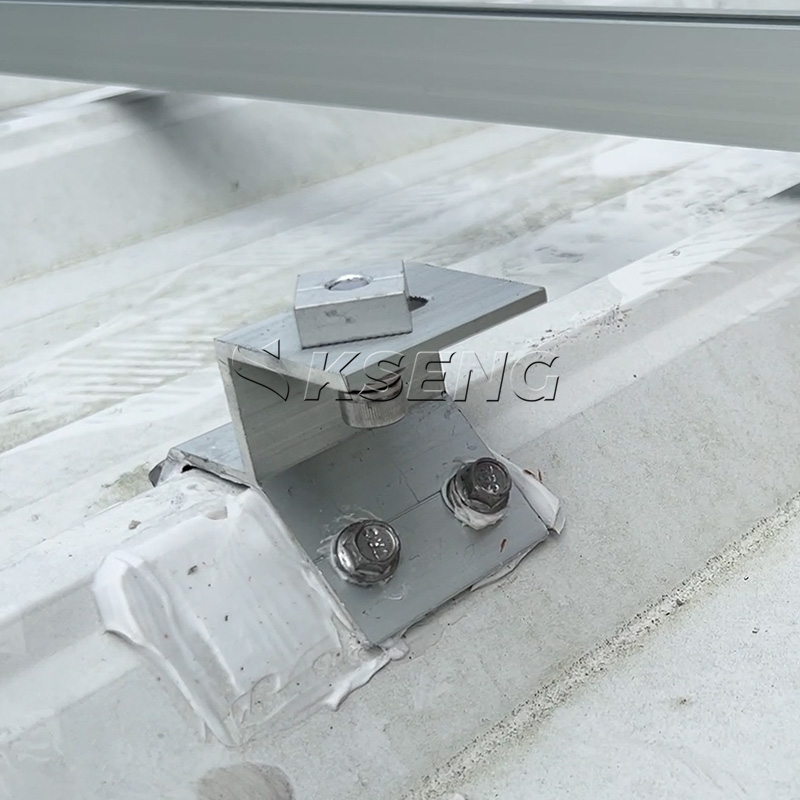

Simple assembly structure: Optimized folded aluminum structure, lightweight yet high strength, easy to install with standard hand tools, saves construction labor time.
Customization available: Kseng supports OEM & ODM service, custom clamp dimensions, surface treatment, laser logo and personalized packaging for global EPC distributors and importers.
Application Scenarios

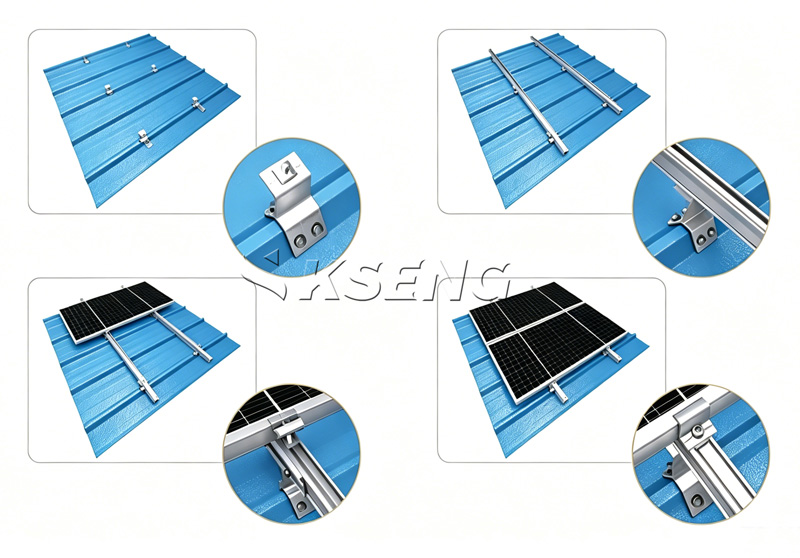

This drill type trapezoidal metal roof solar clamp is widely used for distributed solar power stations on trapezoidal corrugated metal rooftops, especially industrial factories, storage warehouses and large commercial buildings with strict wind load requirements. Compatible with all standard aluminum PV mounting rails and mainstream framed solar modules.
Kseng Factory Strength
Kseng is a professional one-stop solar mounting system manufacturer with full aluminum extrusion, CNC stamping and assembly production lines. All drill type trapezoidal roof solar clamps pass strict mechanical load and anti-corrosion testing before shipment, complete test reports provided. We offer flexible bulk order delivery and competitive factory wholesale prices for global solar contractors.
FAQ
Q1: What materials are used for this drill type trapezoidal roof solar clamp?
A: The main clamp body is extruded AL6005-T5 aluminum alloy with anodized finish; all bolts, nuts and sealing washers are SUS304 stainless steel, matched with EPDM waterproof rubber pads.
Q2: Does this solar roof clamp need drilling on the metal roof sheet?
A: Yes, it is a drill type bolt-down solar fixture. You need to drill holes on trapezoidal metal roof panels and fasten the clamp with stainless steel bolts for stable installation.
Q3: Will drilling cause roof water leakage when using this solar mount clamp?

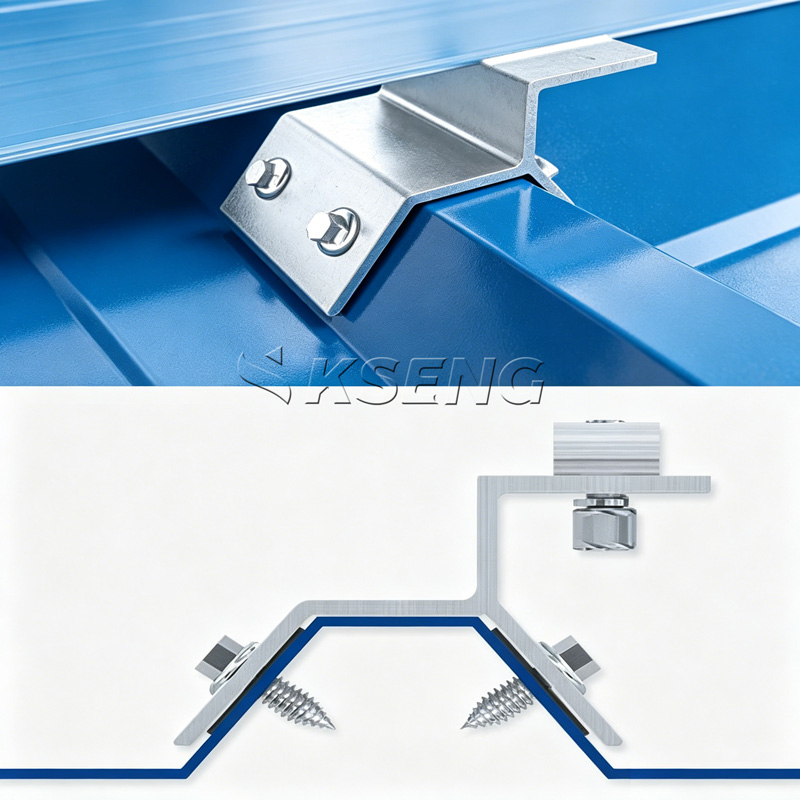

A: No leakage risk. The clamp is equipped with thick EPDM waterproof gaskets at the drilling contact position, which tightly seal the drill holes and isolate rainwater infiltration.
Q4: What kinds of rooftops is this drilled solar clamp suitable for?
A: It fits most standard trapezoidal corrugated metal roofs, perfect for industrial factories, logistics warehouses, agricultural sheds and commercial metal sheet rooftops with high wind load demands.
Q5: Can I adjust the position of solar PV rails with this trapezoidal roof drill clamp?
A: Absolutely. The top plate of the clamp reserves an elongated oval adjustment slot, which supports free horizontal movement of solar rails to align solar panels flexibly.
