Clamp Series
Kseng
As a premier manufacturer and direct supplier of advanced solar mounting components, we engineer the Quick Installation Aluminum Solar Panel Mid Clamp specifically for large-scale commercial energy projects. Designed to streamline your procurement logistics and accelerate site deployment, this precision-crafted component ensures robust module securement across diverse environments.

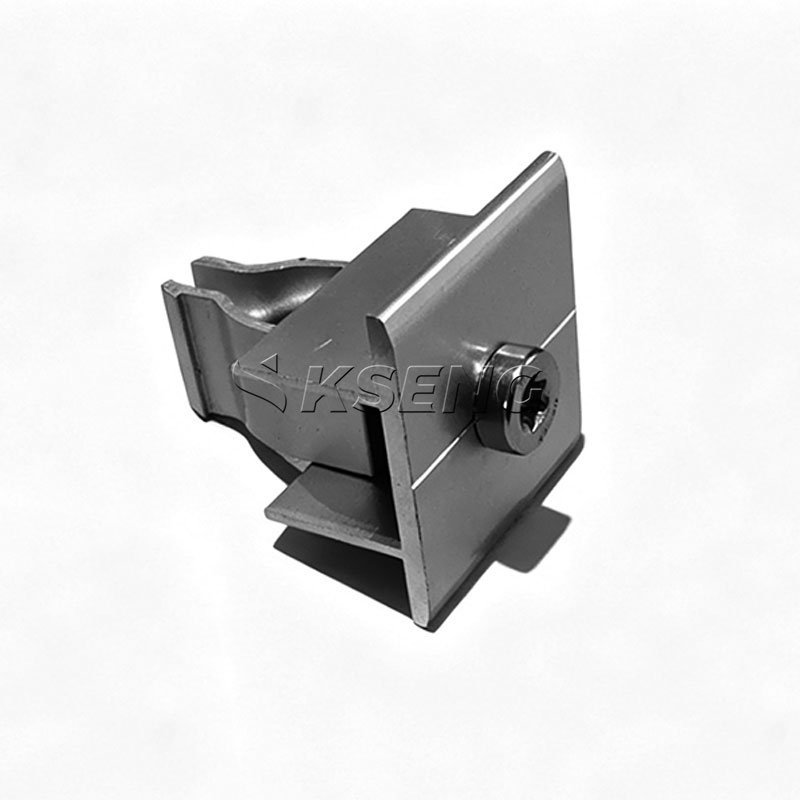

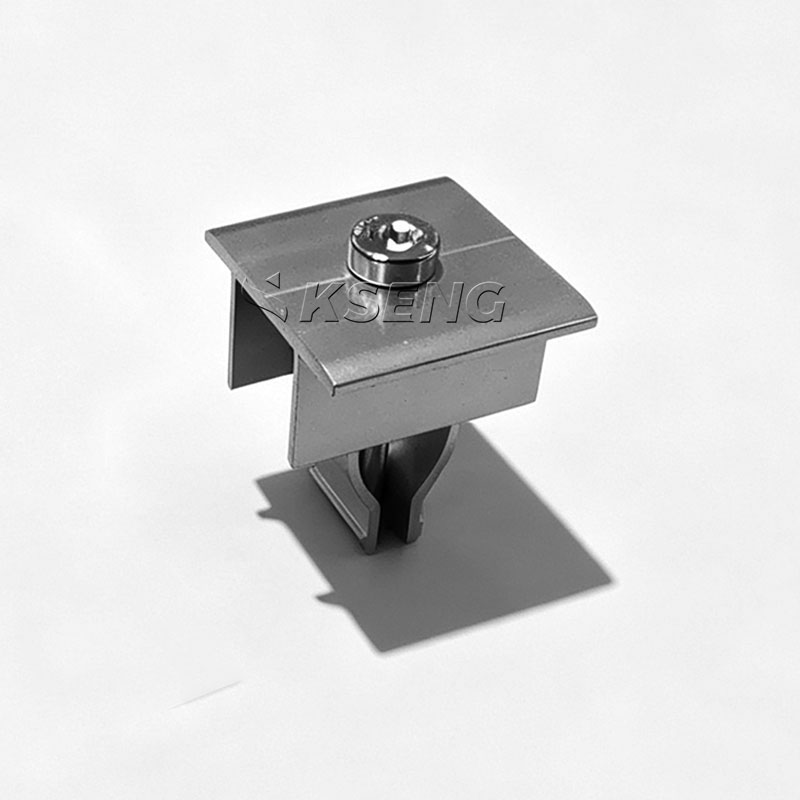

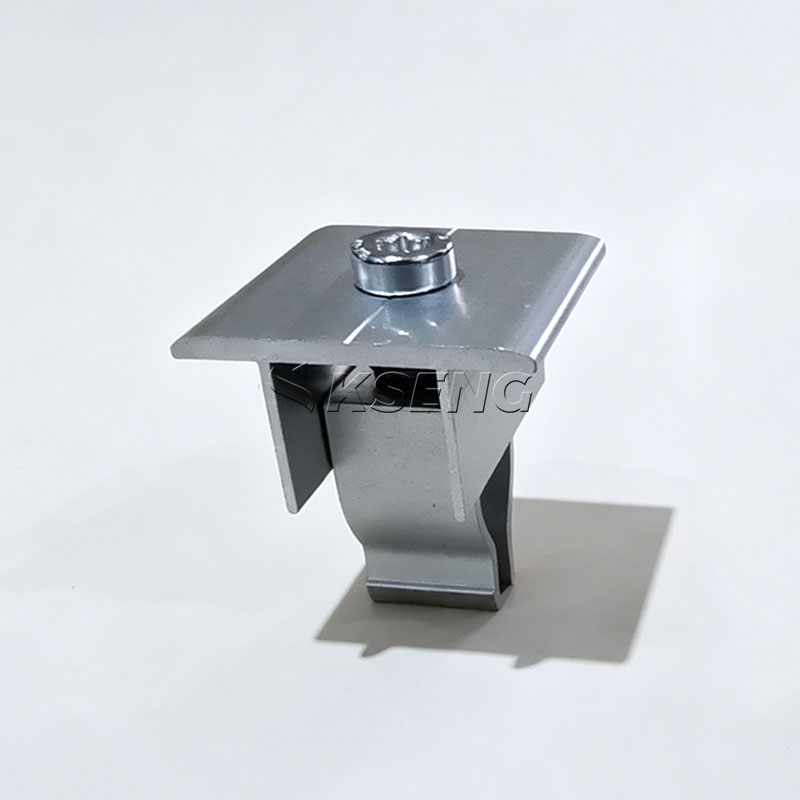

The Quick Installation Aluminum Solar Panel Mid Clamp represents the pinnacle of structural engineering for modern photovoltaic arrays. When handling this component, site engineers immediately notice the substantial, cold-forged feel of the high-strength aluminum alloy, which speaks directly to its exceptional load-bearing capabilities. The surface features a flawless, anodized finish—available in both sleek silver and deep black—that not only provides a premium visual aesthetic to match various module frames but serves as an impenetrable shield against harsh environmental oxidation and galvanic corrosion. Every contour and threaded channel has been meticulously machined to eliminate sharp edges, ensuring safe handling during fast-paced field deployments.
By integrating this meticulously crafted mid clamp into your solar mounting structures, you eliminate the common frustrations associated with misaligned panels and tedious hardware adjustments. The precision-machined threading ensures a remarkably smooth engagement with the accompanying SUS304 stainless steel fasteners, allowing for a seamless, tactile lock-in that installation crews can physically feel and trust. This translates into a highly secure, vibration-resistant hold that protects delicate photovoltaic modules from micro-cracking during extreme weather events. Designed specifically for the rigorous demands of large-scale solar farms and commercial rooftop installations, this mid clamp transforms complex grid deployments into an efficient, predictable, and highly secure operation, ultimately safeguarding your entire renewable energy investment.
| Parameter | Specification |
|---|---|
| Product Name | Quick Installation Aluminum Solar Panel Mid Clamp |
| Material | High-strength Aluminum Alloy (AL6005-T5) & SUS304 Fasteners |
| Surface Treatment | Anodized (Silver / Black) |
| Applicable Module Thickness | 30mm, 32mm, 35mm, 40mm (Adjustable options available) / 5mm-10mm for Frameless Modules |
| Application | Roof and Ground Solar Panel Mounting Systems |
| Max Wind Load | Up to 60 m/s |
| Max Snow Load | Up to 1.4 KN/m² |
| Certifications | ISO9001, CE, TUV, AS/NZS 1170 |
| Warranty | 10-12 Years |
| Service Life | 20-25 Years |
Elevate your solar infrastructure with a mid clamp engineered to deliver uncompromising performance and exceptional installation efficiency. Every aspect of this component has been refined to address the most demanding field challenges encountered by site engineers, procurement managers, and project developers.
Understanding the technical superiority of your mounting hardware is crucial for ensuring the long-term viability of massive solar deployments. Our mid clamps are engineered across multiple critical dimensions to provide unparalleled value and reliability to your operations.

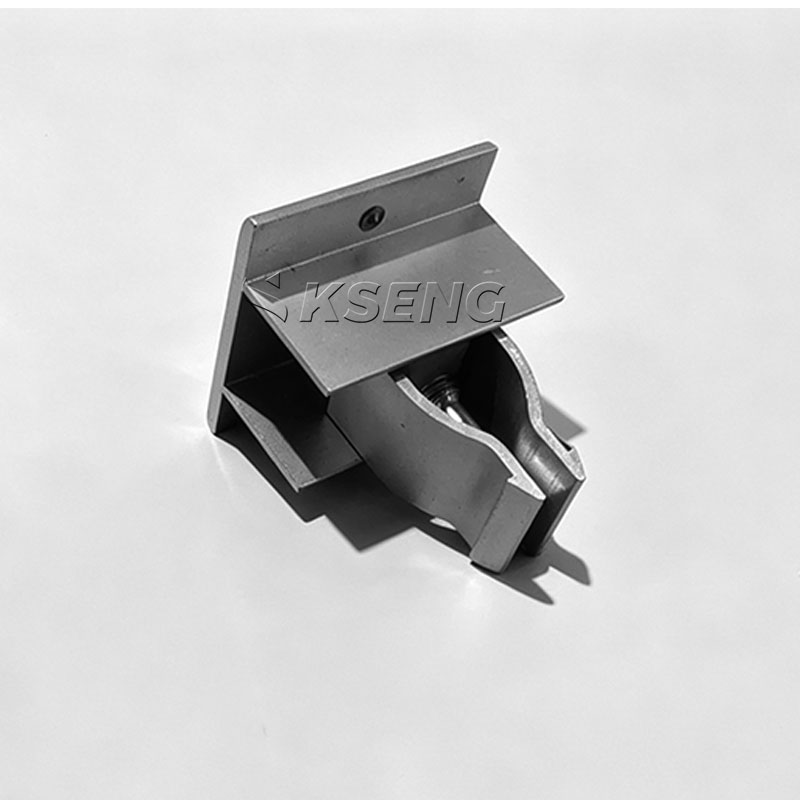

Constructed from high-yield AL6005-T5 aluminum alloy and paired with robust SUS304 stainless steel fasteners, this mid clamp is built to outlast the solar panels it secures. The surface undergoes a stringent anodizing process, available in both silver and black, creating a highly durable oxide layer. This premium treatment delivers outstanding resistance to ultraviolet radiation, moisture, and atmospheric corrosion, guaranteeing long-term, stable operation even in the most extreme outdoor environments, from coastal regions to arid deserts.
Time is a critical metric in large-scale commercial deployments. This clamp is masterfully designed for rapid installation, featuring innovative drop-in or twist-in mechanisms that allow direct insertion into the mounting rail. To further accelerate your project timelines, select models are available as pre-assembled units. This thoughtful engineering drastically reduces the number of steps required on-site, minimizes the need for specialized tooling, and can effectively lower your manual labor and time expenditures by up to 30%.

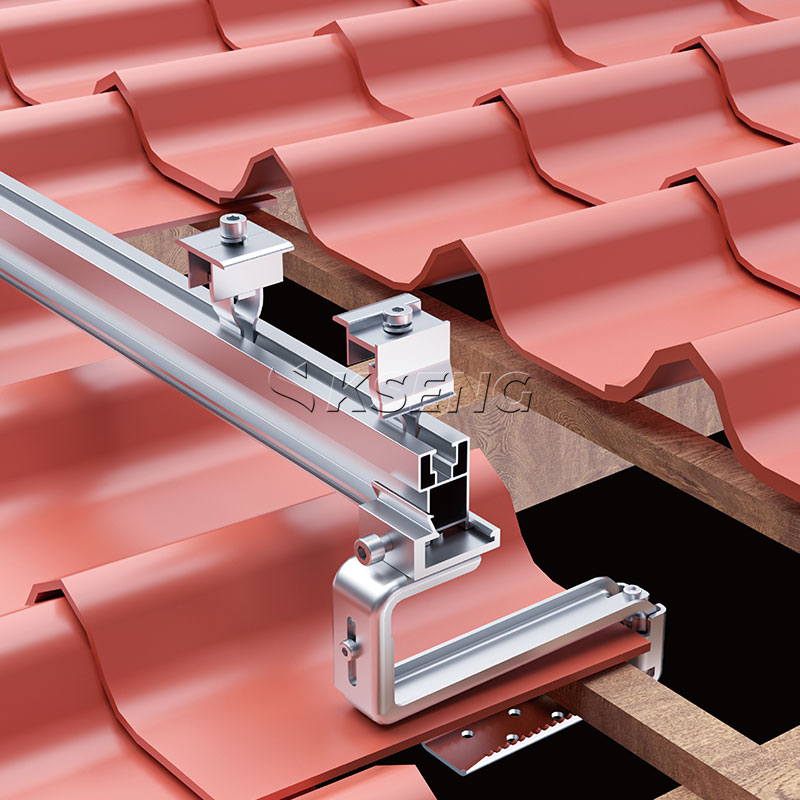

Managing inventory across diverse projects requires highly adaptable components. Our mid clamp offers exceptional versatility, featuring adjustable designs that perfectly accommodate standard framed solar panels ranging from 30mm to 40mm in thickness. Furthermore, specialized variants are available for frameless and dual-glass modules. This universal compatibility extends to the sub-structure as well, integrating flawlessly with C-steel and aluminum guide rails across flat roofs, pitched roofs, and expansive ground-mount photovoltaic systems.
Safeguarding your high-value solar modules against extreme weather is our top priority. The precision engineering behind this clamp ensures that clamping force is uniformly distributed along the panel frame, preventing the stress concentrations that frequently cause micro-cracks in solar cells. Subjected to rigorous third-party testing, the assembly can withstand devastating wind loads of up to 60 m/s and crushing snow loads of up to 1.4 KN/m². It fully complies with TUV, CE, ISO, and AS/NZS 1170 standards, providing total peace of mind for structural safety.
When dealing with delicate frameless or thin-film solar modules, standard metal clamps pose a significant risk of glass fracture. To counter this, our specialized mid clamps integrate premium EPDM rubber padding within the inner grip. This high-density rubber acts as a crucial buffer, eliminating direct metal-to-glass friction and preventing panel damage during aggressive installation or high-wind vibration. Additionally, the EPDM pad perfectly absorbs the micro-displacements caused by the natural thermal expansion and contraction of the system.
As a direct source manufacturer, we provide absolute transparency and control over the production process. Every product is backed by a solid 10 to 12-year warranty and boasts a design service life extending up to 25 years. We understand that commercial projects often require tailored solutions, which is why we offer comprehensive OEM and ODM customization services. From specific dimensions and color matching to customized T-bolts and sliding nuts, we are fully equipped to meet the diverse and exacting demands of global EPC contractors and large-scale procurement teams.
Selecting the right manufacturing partner is just as critical as selecting the right hardware. As a dedicated supplier to global EPC contractors and large-scale renewable energy developers, we understand that supply chain reliability, stringent quality control, and responsive engineering support are the cornerstones of your operational success.
To ensure optimal structural stability without damaging the solar module frames, we highly recommend applying a torque of 12-15 N.m for the SUS304 stainless steel fasteners. Adhering to this specific torque range guarantees that the clamping force is perfectly distributed, preventing both hardware loosening under high wind loads and potential micro-cracking of the photovoltaic cells due to over-tightening.
Yes, our product line is highly versatile. The standard adjustable mid clamp is meticulously engineered to secure framed modules with thicknesses ranging from 30mm to 40mm. For frameless, thin-film, or dual-glass modules, we manufacture a specialized version equipped with high-density EPDM rubber inserts. These inserts accommodate thicknesses of 5mm to 10mm, providing a secure, cushioned grip that prevents glass fracture and accommodates thermal expansion.
The high-standard anodization process creates a robust aluminum oxide layer on the surface of the AL6005-T5 alloy. This layer acts as an exceptional barrier against environmental degradation, significantly enhancing the metal's resistance to ultraviolet radiation, moisture, and corrosive atmospheric elements. This ensures the clamp will not rust, degrade, or lose its structural integrity over its 25-year service life, even in harsh coastal or industrial environments.
Absolutely. We understand that minimizing on-site labor is a major priority for commercial project developers. We offer our mid clamps in pre-assembled configurations, complete with the aluminum body, SUS304 bolt, and corresponding sliding nut or T-block. This drop-in ready format eliminates the need for workers to assemble small parts on the roof, reducing installation time and labor costs by up to 30%.
Yes, as a direct manufacturer, we provide comprehensive OEM and ODM services tailored to your specific project requirements. Whether you need the clamps anodized in a specific black hue to match premium architectural modules, or require custom lengths and specialized T-bolts to fit proprietary mounting rails, our engineering team will work closely with you to deliver a perfectly integrated solution for your high-volume orders.
