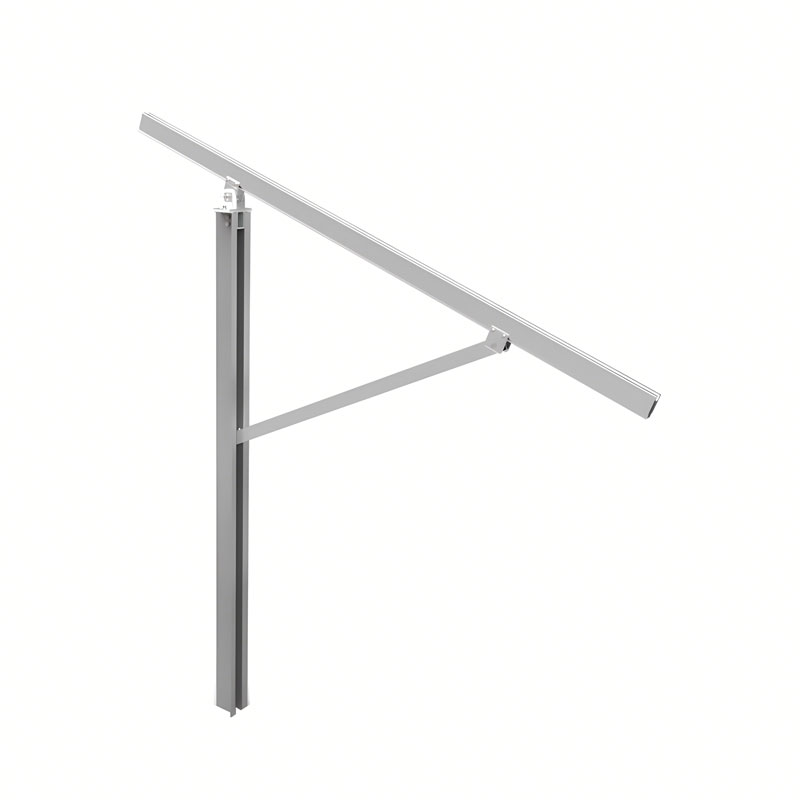

1. PV Mounting Columns: The Vertical Support Foundation

• Key Functions:

• Bear vertical loads from solar modules and upper structures.

• Determine the height and elevation of the solar array.

• Transfer loads safely to the foundation and ground.

• Common Materials:

• Hot‑dip galvanized steel: High strength, low cost, ideal for ground‑mounted systems in heavy snow/wind areas.

• Anodized aluminum: Lightweight (30% lighter than steel), corrosion‑resistant, perfect for coastal or humid regions.

• Alloy steel: High tensile strength, used for heavy‑duty or large‑span projects.

• Types: Front columns (adjust tilt angle), rear columns (maintain stability), and support columns (for large arrays).

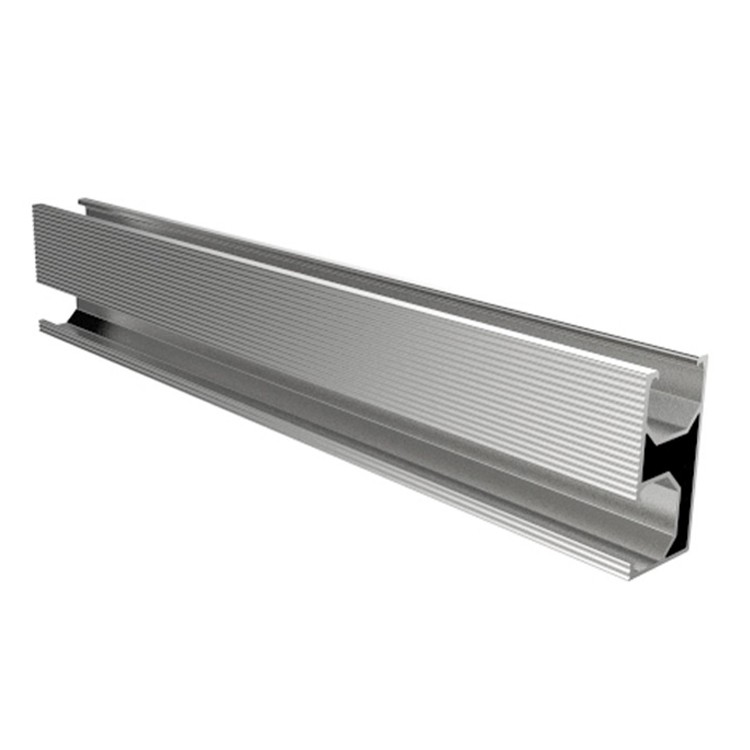

2. PV Mounting Beams: The Horizontal Load Distributor

• Key Functions:

• Connect columns to form a stable horizontal frame.

• Support rails and solar modules, transferring loads to columns.

• Maintain the spacing and alignment of the solar array.

• Common Materials & Profiles:

• C/Z‑shaped galvanized steel: High rigidity, cost‑effective, widely used in fixed PV brackets.

• Aluminum alloy (6063‑T5): Lightweight, easy to process, suitable for rooftop and residential systems.

• I‑beam/H‑beam: For large‑scale ground‑mounted power plants requiring high load capacity.

• Installation Tip: Beams are bolted (no welding) to columns for easy assembly and disassembly, reducing on‑site labor costs.



3. PV Mounting Rails: The Solar Panel Carrier

• Key Functions:

• Provide a flat, stable surface for solar panel installation.

• Secure panels with clamps (mid/end clamps) and resist wind vibration.

• Allow for precise adjustment of panel spacing and alignment.

• Common Materials & Features:

• Anodized aluminum alloy (6063‑T5): The standard material for PV rails—corrosion‑resistant, lightweight, and compatible with most solar panel clamps.

• Extruded profile design: T‑slot/C‑slot grooves for flexible clamp installation and easy on‑site adjustment.

• Length customization: Cut to project‑specific lengths (typically 2.4m–6m) to minimize waste.

• Types: Standard rails (for regular panels), heavy‑duty rails (for large/heavy modules), and mini rails (for small rooftop systems).



4. PV Mounting Connectors: The Structural “Joints”

• Key Functions:

• Connect columns to beams, beams to rails, and rails to panels.

• Resist shear and tension forces, maintaining structural integrity under dynamic loads (wind/earthquake).

• Enable tool‑free or quick bolted assembly, reducing installation time.

• Common Types & Materials:

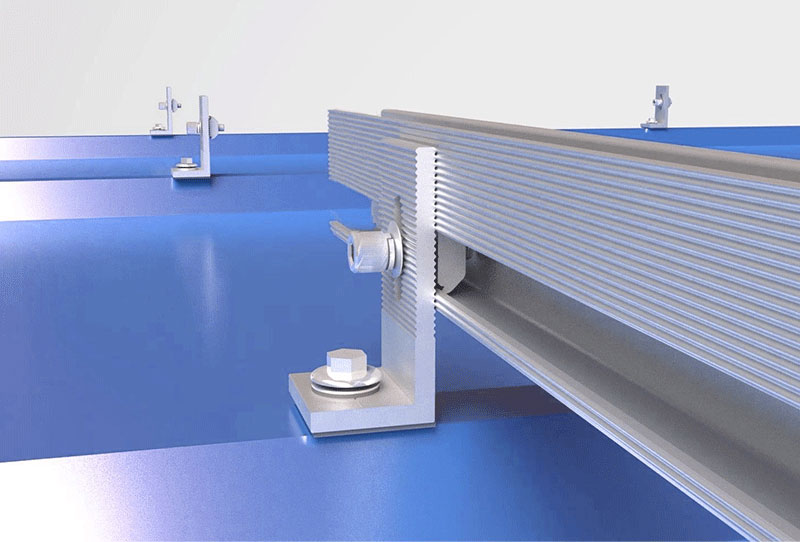

• L‑angles (right‑angle connectors): Connect vertical/horizontal components (columns‑beams, beams‑rails); aluminum or galvanized steel.

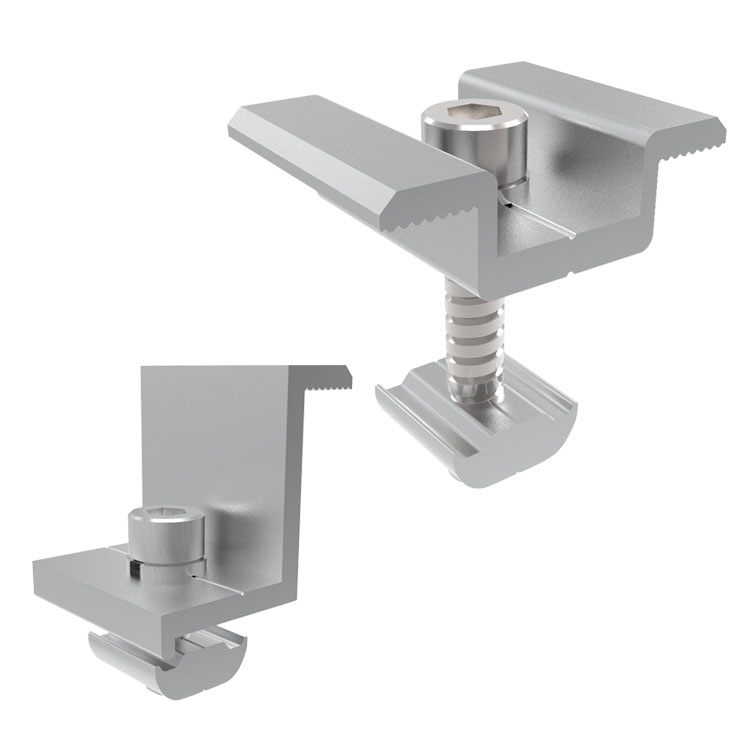

• Mid/end clamps: Secure solar panels to rails; anodized aluminum with stainless steel bolts.



• Bolts/nuts/washers: Core fasteners; stainless steel (304/316) for corrosion resistance, with anti‑loosening design.

• Triangle brackets: Enhance stability for column‑beam joints, especially in high‑wind areas.

• Critical Requirement: All connectors must match the material of main components (aluminum connectors for aluminum rails) to avoid galvanic corrosion.

Why Choose Kseng Energy’s PV Mounting Structures?

• Premium Materials: All columns, beams, rails, and connectors use corrosion‑resistant aluminum or galvanized steel, ensuring a 25‑year lifespan.

• Structural Stability: Engineered to withstand extreme weather (wind speed up to 60m/s, snow load up to 1.5kN/m²).

• Easy Installation: Modular, bolted design reduces on‑site time by 30% vs. welded systems.

• Custom Solutions: Tailored for rooftop, ground‑mounted, agricultural, and coastal solar projects.

• Global Certifications: TUV, CE, and ISO certifications ensure compliance with international standards.
