Product Overview
KSENG standing seam metal roof solar mounting system is a drill-free rail-based PV mounting solution exclusively designed for vertical standing seam metal roofs. Different from traditional punching roof brackets, this full-clamp mounting structure needs no perforation on metal roof panels, avoiding roof leakage risk, roof panel damage and voided factory roof warranty. As a professional solar bracket manufacturer, KSENG optimizes every connecting component to match global mainstream standing seam roof profiles, compatible with trapezoidal metal roof, vertical lock seam metal roof for worldwide solar installation projects.

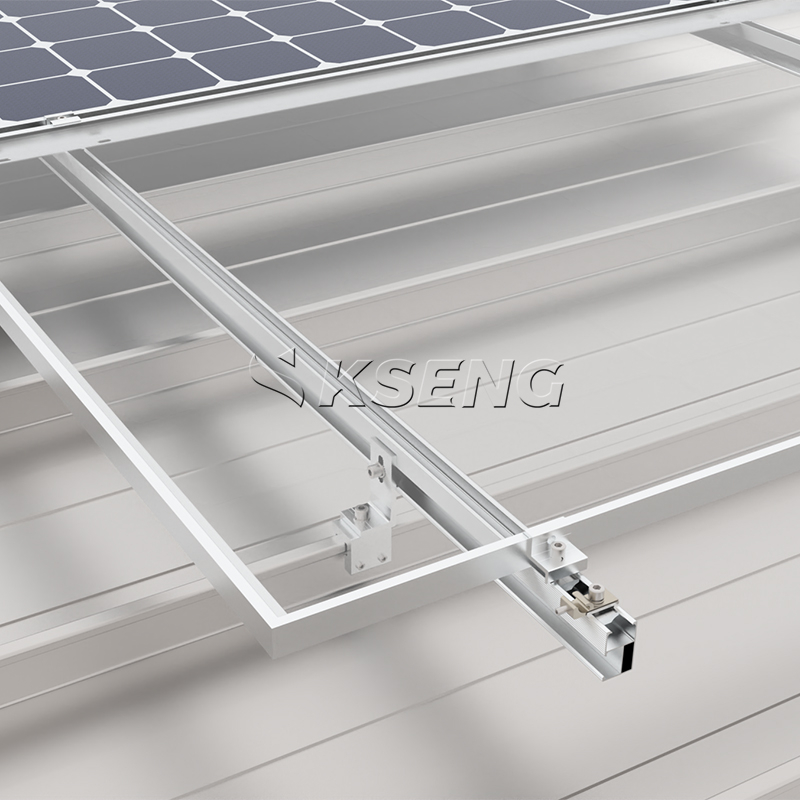

Complete Assembly Structure
Standard layered locking structure for stable solar panel load bearing, easy modular installation:

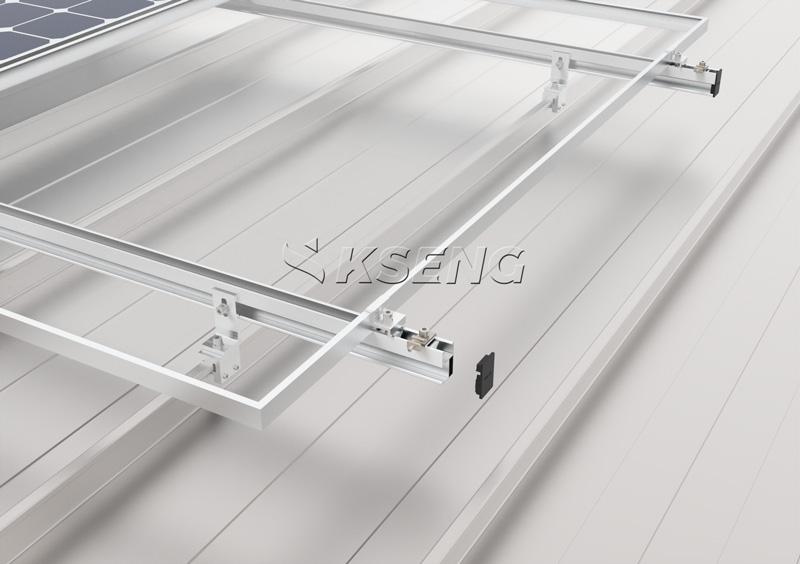

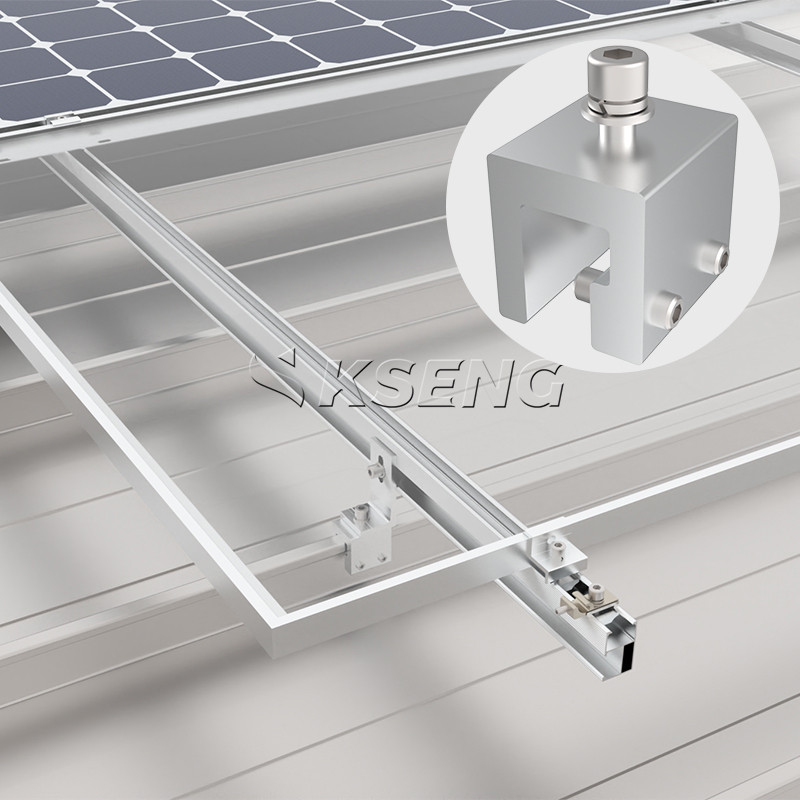

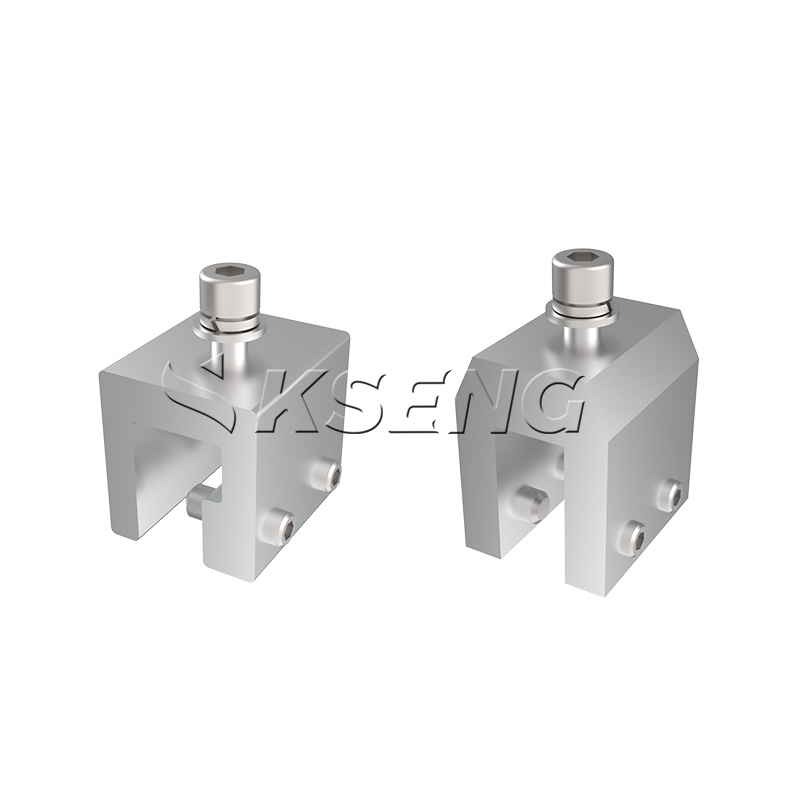

1. Roof Standing Seam Clamp: Directly clamped on metal roof standing seam, no drilling required;

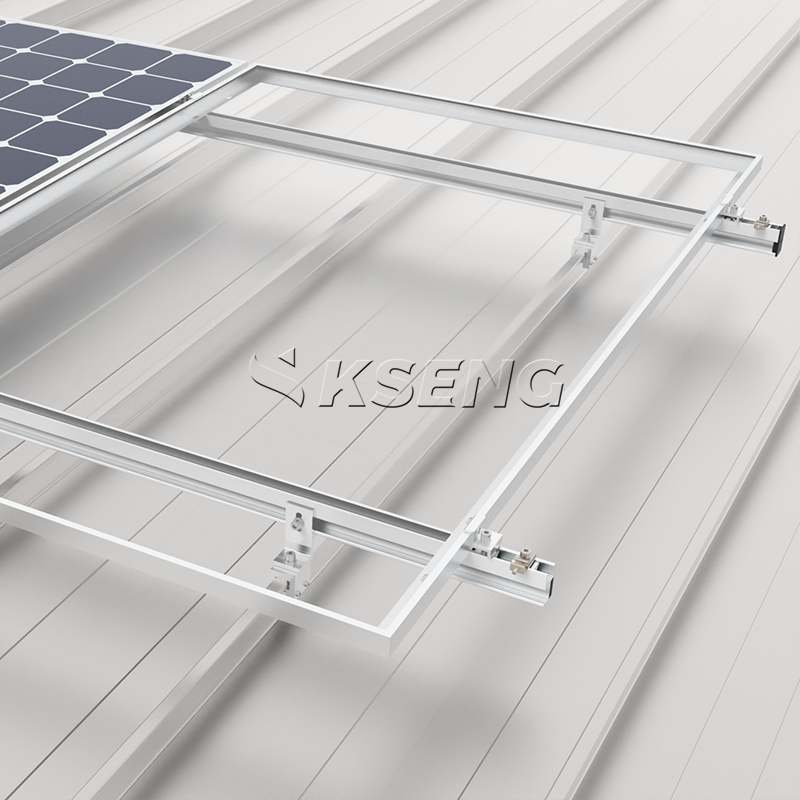

2. Locked L-Foot: Fixed and locked on top of roof clamp as transition connecting part;
3. Solar Mounting Rail: Fastened by L-foot to form integral load-bearing base;
4. Solar Mid Clamp & End Clamp: Installed on solar rail to clamp and fix solar modules tightly.
Premium Raw Material Configuration
All structural components adopt industry-certified anti-corrosion materials for 25+ years service life matching solar panel lifespan:
• Main Bracket Rail Material: Aluminum Alloy AL6005-T5, high tensile strength, anodized anti-oxidation, lightweight yet high load capacity;
• Fastener & Clamp Material: Stainless Steel SUS304, full rust-proof, acid and alkali resistant, suitable for coastal high-salt, rainy, high-temperature outdoor scenarios.
Core Product Advantages
✅ 100% Non-Penetrating Roof Design: Zero roof holes, zero water leakage hidden danger, complete roof warranty reservation
✅ Standard Modular Structure: Matches universal solar mid/end clamp, L-foot and rail accessories, convenient stock and quick on-site installation
✅ Ultra Anti-Corrosion Performance: AL6005-T5 + SUS304 full material combination, adapts global complex climate areas
✅ High Structural Stability: Scientific layered locking structure, certified wind load and snow load resistance for commercial large-scale PV projects
✅ Cost-Effective Installation: Reduce drilling tools, waterproof auxiliary materials and post-maintenance cost, shorten project construction period
✅ Customizable Size: Custom L-foot height, rail length and clamp size for different standing seam height and solar module sizes
FAQ
Q1: Does this solar roof mounting system need to punch holes on metal roof?
A: No. This is 100% non-penetrating standing seam solar mounting system. It adopts full clamp locking installation without any drilling or perforation on original metal roof panels, which protects roof waterproof performance and original roof manufacturer warranty.
Q2: What material are KSENG standing seam solar brackets made of?
A: The main rail and L-foot adopt high-strength anodized Aluminum AL6005-T5; all bolts, clamps and fasteners adopt anti-rust Stainless Steel SUS304, supporting 25 years outdoor service life.
Q3: What is the installation structure of this metal roof solar mount?
A: Standard assembly structure: roof seam clamp locks L-foot → L-foot fixes solar rail → rail installs solar mid clamp and end clamp to fix solar panels, integral layered locking structure for firm bearing.

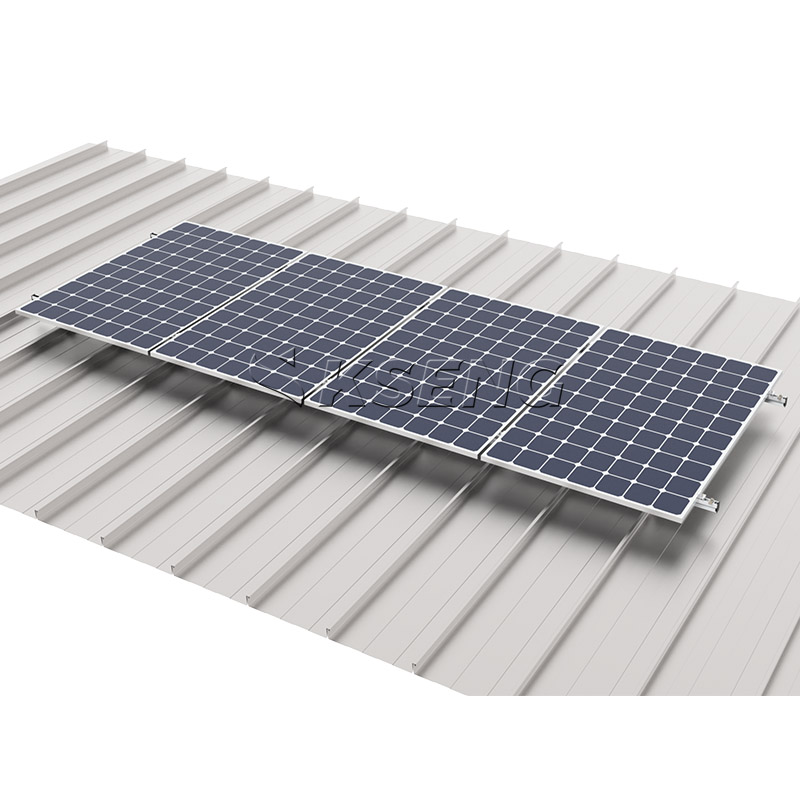

Q4: Is this mounting system suitable for commercial metal rooftop solar projects?
A: Yes. It fits residential household rooftop, factory industrial metal roof, commercial building standing seam roof, compatible with monofacial and bifacial solar modules for global distributed PV projects.
Q5: Can KSENG provide customized clamp size for different standing seam profiles?
A: Yes. KSENG supports customized seam clamp opening, L-foot height and rail length to fit different vertical standing seam width, height and local building wind/snow load standards.

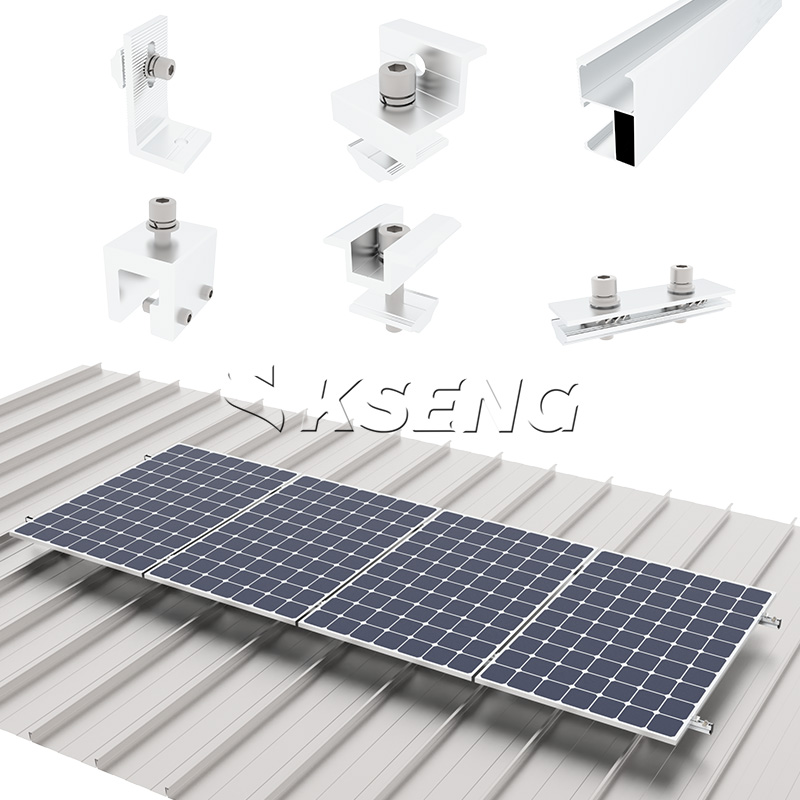

Q6: Does this system come with complete installation accessories?
A: Yes. Complete matched accessories including roof clamps, L-feet, solar rails, mid clamps, end clamps and SUS304 fastening bolts are supplied as one-stop kit.
