In the global transition to renewable energy, photovoltaic (PV) systems have become a cornerstone of clean energy adoption. However, many PV project owners and installers overlook a critical detail that directly impacts power generation efficiency: the solar bracket tilt angle. Research shows that a single miscalculation in the tilt angle can result in a 10% annual power generation loss—equivalent to throwing away thousands of kilowatt-hours of electricity and reducing the system’s return on investment (ROI) significantly. The question is, how to calculate the solar bracket tilt angle correctly, and why does this small angle make such a big difference in power generation?

This article breaks down the calculation methods, key influencing factors, and practical optimization strategies for solar bracket tilt angles, designed to help you avoid common mistakes and maximize your PV system’s performance. Whether you’re installing a residential rooftop PV system or a large-scale commercial ground-mounted array, understanding these principles will help you unlock the full potential of your solar investment.

What Is Solar Bracket Tilt Angle, and Why Does It Matter?

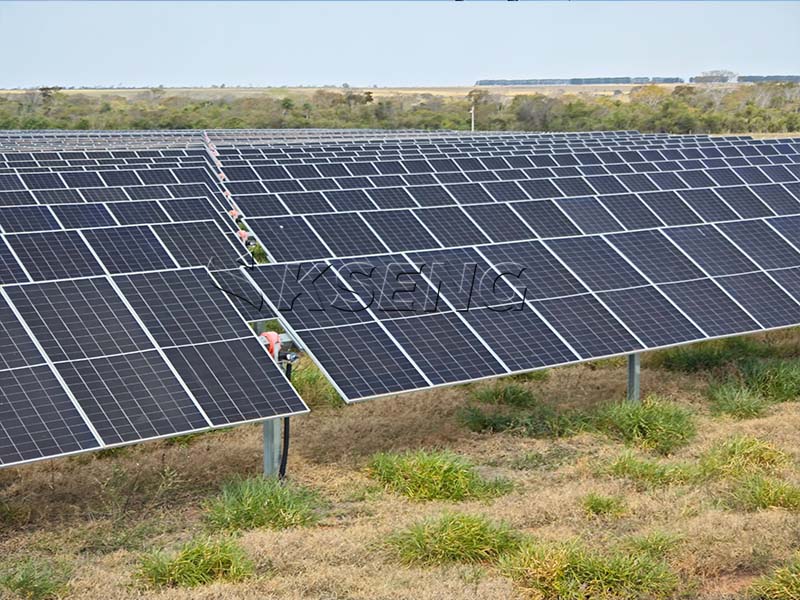

The solar bracket tilt angle refers to the acute angle between the solar panel surface and the horizontal ground, ranging from 0° (completely horizontal) to 90° (completely vertical). Its core purpose is to maximize the amount of solar radiation the panels receive—because the efficiency of PV panels depends directly on how much sunlight they can capture. When sunlight hits the panel surface perpendicularly, the energy loss is minimized; when the angle is deviated, sunlight is scattered or reflected, reducing the radiation absorbed by the panel and thus lowering power generation efficiency.

The 10% power generation difference is not an exaggeration. According to PV system simulation data, if the tilt angle deviates from the optimal value by ±10°, the annual power generation loss can reach 5% to 8%; for high-latitude regions, this loss can even exceed 10% when the deviation is larger. For a 10kW residential PV system with an annual power generation of 12,000 kWh, a 10% loss means 1,200 kWh of electricity wasted each year—enough to power a household for 2 to 3 months. For commercial projects, this loss translates to hundreds of thousands of dollars in lost revenue over the system’s 25-year lifespan.

3 Practical Methods to Calculate Solar Bracket Tilt Angle

Calculating the optimal solar bracket tilt angle does not require complex professional knowledge—you can choose the method that best suits your needs based on your project scale and available resources. Below are the three most widely used and reliable methods, optimized for clarity and practicality.

Method 1: Latitude-Based Basic Formula (Simplest for Fixed Brackets)

The most basic and widely used method is based on the geographic latitude of the installation site, as latitude directly determines the sun’s altitude angle throughout the year. This method is ideal for fixed solar brackets (the most common type for residential and small commercial systems) and requires only one key piece of data: the latitude of your location.

The core formula is:

Optimal Tilt Angle ≈ Local Latitude ± 5°

Specific adjustments depend on your priority (year-round power generation or seasonal optimization):

- For year-round balanced power generation: Set the tilt angle equal to the local latitude (e.g., if your location is at 35°N latitude, the optimal tilt angle is approximately 35°).

- To prioritize winter power generation (critical for regions with long winters or high heating demand): Add 5° to 15° to the local latitude (e.g., 35°N + 10° = 45° tilt angle), which helps capture more low-angle winter sunlight and facilitates snow shedding.

- To prioritize summer power generation (for regions with high summer cooling demand): Subtract 5° to 10° from the local latitude (e.g., 35°N - 5° = 30° tilt angle), which adapts to the higher sun altitude in summer.

Example: If you live in Los Angeles (latitude 34°N), the optimal tilt angle for year-round power generation is approximately 34°; for winter optimization, set it to 39° to 49°, and for summer optimization, set it to 24° to 29°.

Method 2: Seasonal Adjustment Method (Maximize Seasonal Efficiency)

Fixed tilt angles cannot fully adapt to seasonal changes in the sun’s position—summer sun is higher, winter sun is lower. The seasonal adjustment method solves this problem by adjusting the tilt angle 2 to 4 times a year, which can increase annual power generation by 3% to 5% compared to a fixed angle.

The specific adjustment rules are (for the Northern Hemisphere):

- Spring (March-May) and Autumn (September-November): Set the tilt angle equal to the local latitude (baseline angle).

- Summer (June-August): Set the tilt angle to local latitude - 15° (adapts to high sun altitude).

- Winter (December-February): Set the tilt angle to local latitude + 15° (captures more low-angle winter sunlight).

Note: This method requires adjustable solar brackets, which are slightly more expensive than fixed brackets but offer higher long-term returns—especially for regions with distinct seasons.

Method 3: Advanced Software Simulation (Most Accurate for Large-Scale Projects)

For commercial PV projects, ground-mounted arrays, or complex installation scenarios (e.g., shaded areas, bifacial panels), the basic formula and seasonal adjustment methods are not sufficient. Advanced software simulation tools can integrate local solar radiation data, climate conditions, panel specifications, and shading analysis to calculate the optimal tilt angle with an accuracy of over 95%.

Recommended tools (free and paid options):

- PVWatts (free): Developed by the U.S. National Renewable Energy Laboratory (NREL), it provides accurate tilt angle calculations based on global solar radiation data, and supports parameter input such as panel efficiency and system losses.

- PVsyst (paid): The industry standard for PV system simulation, it can simulate the impact of tilt angle, azimuth, and shading on power generation, and is suitable for large-scale commercial projects.

- Helioscope (free trial): User-friendly, with built-in global location data, it can quickly generate optimal tilt angle recommendations for residential and commercial systems.

Key Factors Affecting Tilt Angle Calculation (Don’t Ignore These!)

When calculating the solar bracket tilt angle, latitude is not the only factor—ignoring the following factors can lead to inaccurate calculations and unnecessary power loss.

1. Sun Azimuth Angle

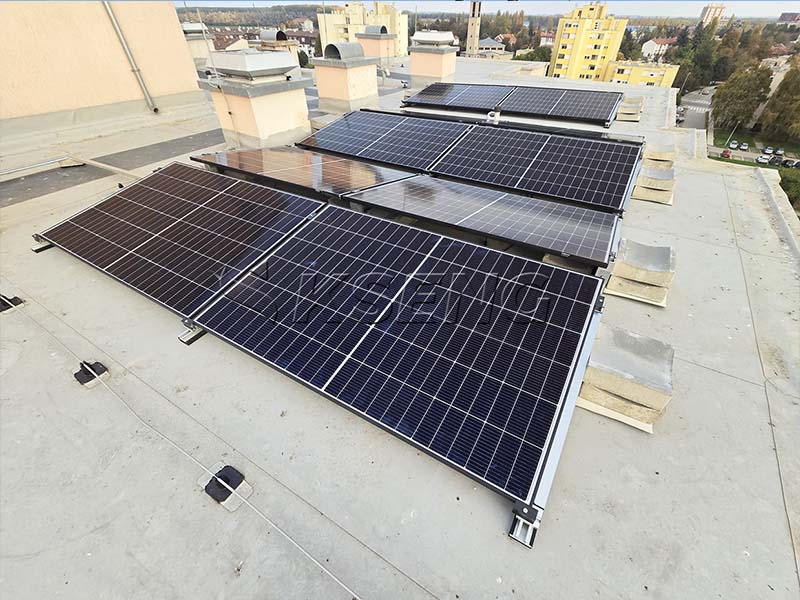

The tilt angle and azimuth angle (the angle between the panel’s projection and due south) work together to affect power generation. In the Northern Hemisphere, panels should ideally face due south (azimuth angle 0°) to maximize annual solar radiation; in the Southern Hemisphere, due north. If the azimuth angle deviates by ±15°, the power generation loss is small (less than 1%), but deviations of ±30° or more will compound the loss caused by incorrect tilt angles.

2. Local Climate Conditions

Regions with more cloudy days (e.g., coastal areas) have more diffuse solar radiation, so the tilt angle can be slightly reduced (by 5° to 10°) to capture more scattered light. In desert regions, increasing the tilt angle by 5° to 10° helps reduce dust accumulation (dust can reduce power generation by 5% to 10%) and allows rain to clean the panels naturally. In snowy regions, a steeper tilt angle (latitude + 10° to 15°) helps snow slide off, avoiding long-term shading of the panels.

3. Panel Type

Bifacial solar panels (which can absorb sunlight from both sides) require a slightly smaller tilt angle (5° to 10° less than monofacial panels) to capture more ground-reflected light. The optimal tilt angle for bifacial panels is usually 10° to 15° in low-latitude regions and 25° to 30° in mid-latitude regions.

4. Installation Scenario

Rooftop PV systems are limited by the roof pitch—if the roof pitch is close to the optimal tilt angle, flush mounting is recommended to reduce wind resistance and installation costs. If the roof pitch is far from the optimal angle, elevated racking can be used to adjust the tilt angle. For agricultural PV (agrivoltaic) systems, the tilt angle should not exceed 30° to avoid shading crops and ensure agricultural operations can proceed normally.

Common Mistakes in Tilt Angle Calculation (Avoid These to Prevent 10% Power Loss)

Even with the right methods, many installers make small mistakes that lead to significant power loss. Here are the most common errors and how to avoid them:

- Mistake 1: Using the same tilt angle for all regions. Solution: Always base the calculation on the local latitude and adjust for climate and seasonal needs.

- Mistake 2: Ignoring shading. Solution: Before calculating the tilt angle, survey the installation site to avoid shading from trees, buildings, or other obstacles—even partial shading can cause "hot spot effects" and reduce power generation by 30% or more.

- Mistake 3: Overlooking seasonal adjustments. Solution: For adjustable brackets, set a regular adjustment schedule (e.g., quarterly) to adapt to seasonal changes in the sun’s position.

- Mistake 4: Using outdated solar radiation data. Solution: Use the latest data from tools like PVWatts or local meteorological stations, as solar radiation patterns can change slightly over time.

Conclusion: Tilt Angle Is the "Low-Cost High-Return" Optimization Step

Calculating the solar bracket tilt angle is not a complex task, but it is a critical step in optimizing PV system efficiency. A small adjustment can avoid a 10% power generation loss, significantly improving the system’s ROI and shortening the payback period. Whether you’re a homeowner, installer, or project developer, using the methods outlined in this article—latitude-based formulas, seasonal adjustments, or advanced software simulation—will help you find the optimal tilt angle for your specific scenario.

To ensure your PV system performs at its best, remember: the optimal tilt angle is not a "one-size-fits-all" value—it depends on your location, climate, panel type, and installation scenario. By taking the time to calculate it correctly, you’ll maximize your solar energy production and make the most of your clean energy investment.
