Kseng
The modern energy landscape demands structural innovations that do more than simply hold panels in place; they must actively contribute to the spatial and operational efficiency of the entire site. Our vertical solar mounting set redefines perimeter boundaries by seamlessly integrating photovoltaic generation with physical security. When you handle the precision-extruded AL6005-T5 aluminum components, you immediately notice the substantial, rigid feel of the metal, finished with a smooth, anodized coating that repels moisture and resists the abrasive forces of wind-blown particulates. This tactile quality translates directly into structural confidence on the field, ensuring that the hardware can withstand the unpredictable nature of outdoor microclimates.

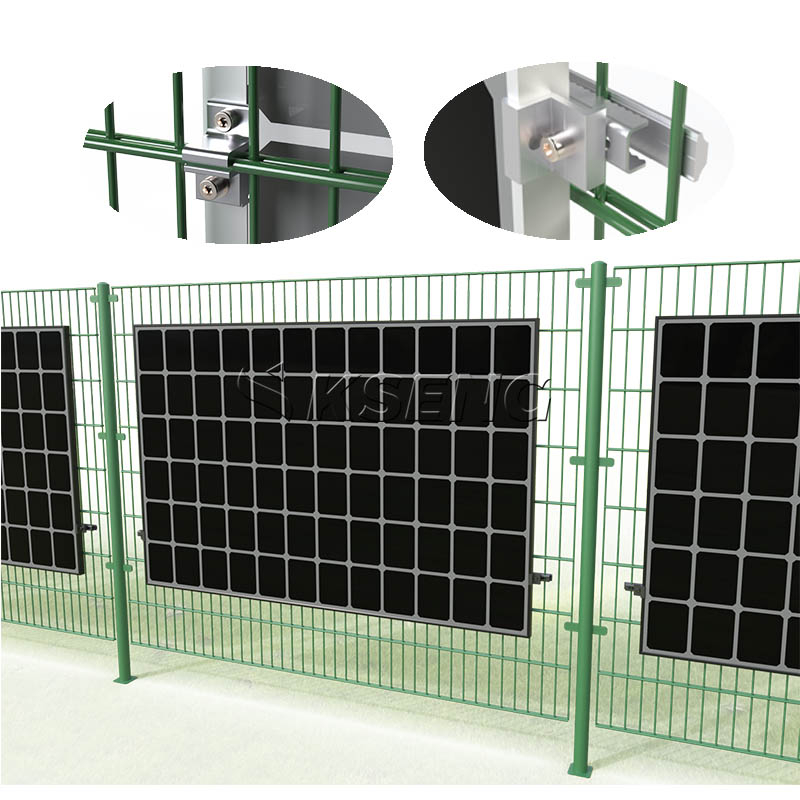

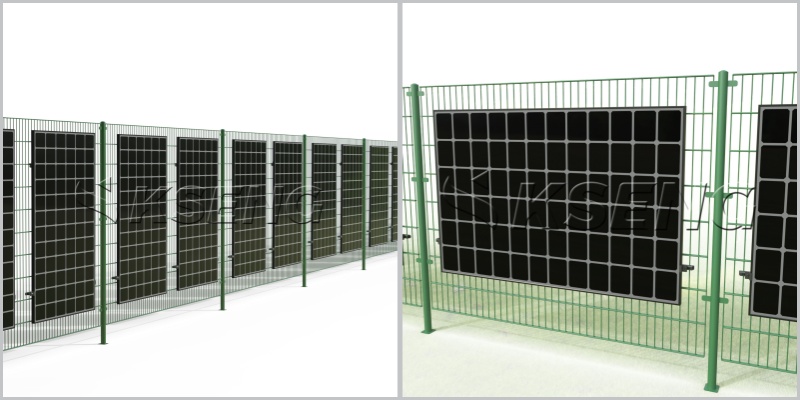

By mounting solar modules at a strict 90-degree angle along existing or newly constructed wire mesh fences, project developers can completely bypass the spatial limitations typically associated with traditional ground-mount arrays. The visual result is a sleek, continuous wall of dark glass and metallic framing that looks purposeful and architecturally refined. Rather than sprawling across valuable agricultural soil or taking up premium commercial real estate, the energy generation footprint is reduced to a mere boundary line. This intelligent physical design not only solves the immediate problem of land scarcity but also transforms a historically passive asset—the fence—into an active, revenue-generating infrastructure that performs reliably season after season.
| Product Name | Fence Solar Mounting Set for Vertical PV Modules |
|---|---|
| Material | Aluminum AL6005-T5 |
| Surface Treatment | Anodized |
| Fence Wire Compatibility | 656 mm / 868 mm |
| Panel Thickness Support | 30–35 mm |
| Installation Angle | 90° (Vertical Installation) |
| Module Layout Direction | Landscape or Portrait |
| Maximum Wind Load | 60 m/s |
| Maximum Snow Load | 1.4 kN/m² |
| Design Life | Over 20 years |
| Warranty Period | 10-12 years |
| Standards Compliance | Meets international structural and electrical safety standards |

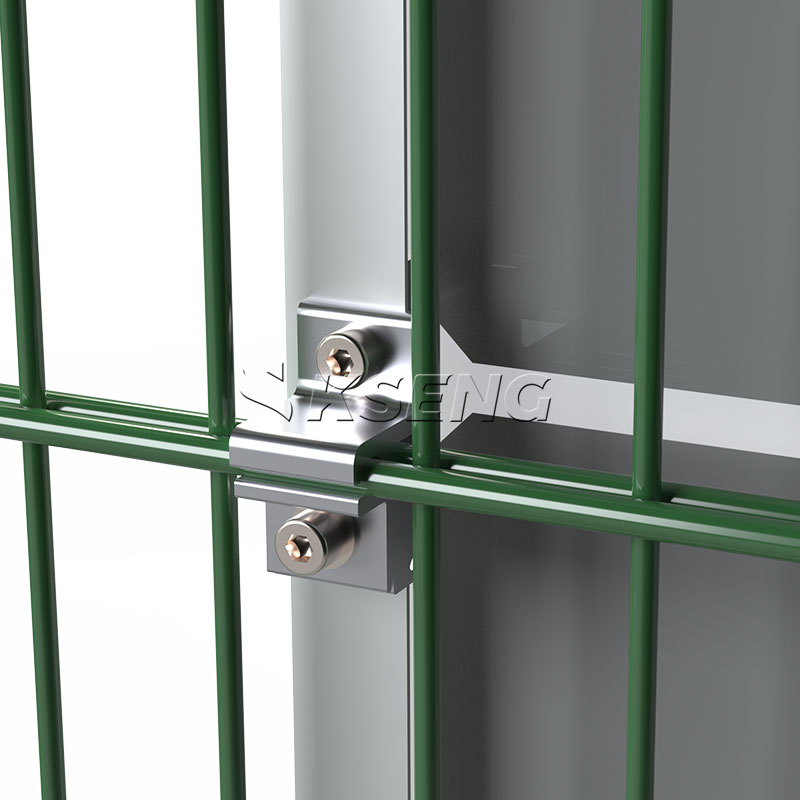

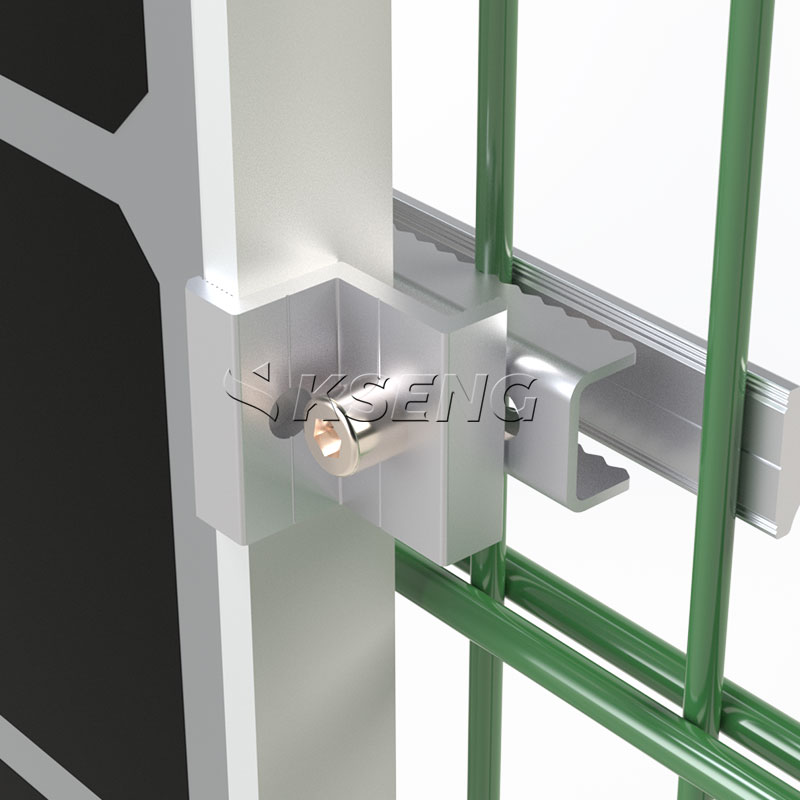

Transitioning to vertical solar integration requires mounting hardware that eliminates guesswork and accelerates deployment timelines. Our mounting set is engineered with a focus on tactile precision and structural harmony, ensuring that every connection point feels solid and secure during assembly. The meticulously crafted clamps grip the fence wire with satisfying rigidity, eliminating micro-vibrations that could otherwise compromise panel integrity over time. This system is built to deliver unyielding performance while drastically simplifying the physical installation process.
Land acquisition is often the most prohibitive factor in large-scale energy deployments. This vertical mounting architecture solves that bottleneck by perfectly merging the physical security of a perimeter boundary with high-yield photovoltaic generation. By utilizing the vertical plane, facility managers and agricultural operators can achieve true dual-use functionality, transforming passive wire fences into active clean energy generators without sacrificing a single square meter of usable ground space.
To extract the maximum financial return from a vertical setup, capturing both direct ambient and reflected light is paramount. This mounting set is explicitly designed with the necessary structural clearances and a minimalist profile to support high-efficiency bifacial solar modules. When oriented in an East-West configuration, the vertical array captures the low-angle sunlight of early mornings and late afternoons, creating a unique generation curve that perfectly fills the mid-day production valley typical of standard installations.
Outdoor infrastructure is subjected to relentless environmental punishment, from biting winter frosts to scorching summer humidity. We forge these mounting components from AL6005-T5 aluminum, a premium alloy renowned for its structural resilience and longevity. The surface undergoes a rigorous anodization process, resulting in a hardened, sleek finish that feels cool and smooth to the touch while acting as an impenetrable, long-lasting shield against the harshest elements.
Time spent on the field directly impacts the total cost of deployment. Recognizing this, our engineering team has prioritized a highly pre-assembled design that drastically reduces on-site labor and complex measuring. The tactile feedback of the wedge fittings and bolts sliding smoothly into their designated channels allows technicians to work rapidly and confidently. Whether retrofitting an aging boundary or erecting a brand-new perimeter, the system adapts intuitively to the physical environment.
The operational expenditure of cleaning massive solar arrays can quickly erode profit margins over the lifetime of a project. A 90-degree vertical installation offers a brilliant, natural defense against environmental fouling, utilizing gravity as your primary maintenance tool. Dust, sticky pollen, and heavy snow simply cannot accumulate on a sheer vertical surface, ensuring that the glass remains clear and the cells remain fully exposed to incoming light with virtually zero human intervention.
Industrial equipment does not have to look utilitarian and harsh. This mounting system replaces the clumsy, rugged appearance of traditional farm-style racking with a streamlined, modern architectural aesthetic. The clean lines of the anodized aluminum and the flush, tight fit of the clamps against the dark panels create a sophisticated, continuous visual boundary. It elevates the visual appeal of any property it surrounds, turning a basic fence into a statement of modern engineering.
Procurement decisions at scale require absolute certainty in product longevity and safety compliance. We subject every batch of our mounting hardware to rigorous stress testing to ensure it meets and exceeds international structural and electrical safety standards. You are not just acquiring metal brackets; you are securing a meticulously validated structural system backed by comprehensive guarantees that protect your financial investment long into the future.
Selecting the right manufacturing partner is just as critical as selecting the right hardware. We operate at the intersection of precision metallurgy and renewable energy innovation, delivering structural solutions that project developers can rely on blindly. Our production facilities utilize advanced extrusion and anodizing technologies, ensuring that every single clamp, bolt, and rail meets exacting dimensional tolerances. We understand that in large-scale deployments, consistency is the ultimate metric of quality.
While peak noon generation might be slightly lower than perfectly angled South-facing panels, vertical installations—especially when utilizing bifacial modules in an East-West orientation—capture highly valuable early morning and late afternoon sunlight. This creates a dual-peak generation curve that often aligns better with peak energy consumption hours, resulting in highly competitive overall financial yields and grid offset values.

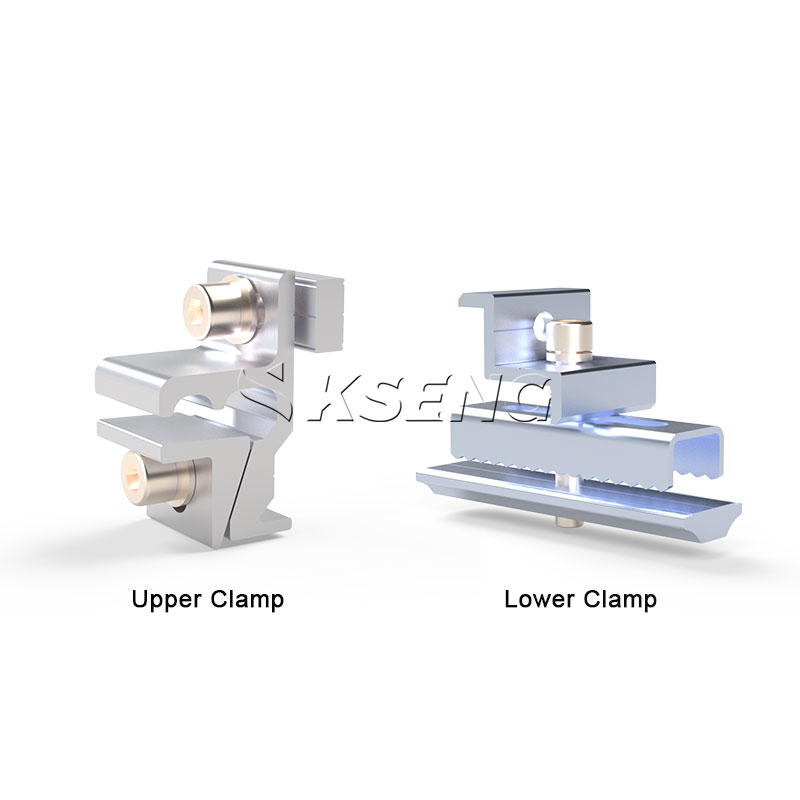

Yes. The upper and lower clamp assemblies are specifically engineered to attach directly to standard 656 mm and 868 mm wire mesh grids. As long as the existing fence posts and structural foundations are rated to handle the additional wind load of the solid panels, no major modifications to the primary fence framework are required, making it an ideal retrofit solution.
The system is designed for high-efficiency installation using standard, readily available hand tools. Technicians primarily need calibrated torque wrenches to secure the provided hex bolts and wedge fittings. All necessary fastening hardware is included in the set, and the precise torque specifications are detailed in the installation manual to ensure a slip-free grip without crushing the module frames.
The AL6005-T5 aluminum undergoes a premium anodization process that creates a thick, electrochemically bonded oxide layer on the surface. This finish is highly resistant to salt spray, high humidity, and industrial pollutants, actively preventing pitting and galvanic corrosion even in harsh coastal, industrial, or chemically intensive agricultural microclimates.
Absolutely. The versatile design of the mounting brackets accommodates both landscape and portrait layouts. The choice of orientation typically depends on the specific height of your existing fence, the dimensions of the chosen 30-35 mm thick PV modules, and the desired visual aesthetic of the continuous array along the boundary line.
