Commercial rooftop solar is one of the most cost‑effective renewable energy solutions for industrial and commercial buildings. The PV mounting system serves as the critical "skeleton" that supports solar panels, withstands wind and snow loads, and ensures long‑term stable operation. Different roof types (metal, concrete, color steel) have distinct structural characteristics, load‑bearing capacities, and waterproof requirements, making targeted mounting selection essential. This guide will analyze selection key points for each roof type, helping you choose the optimal solution.

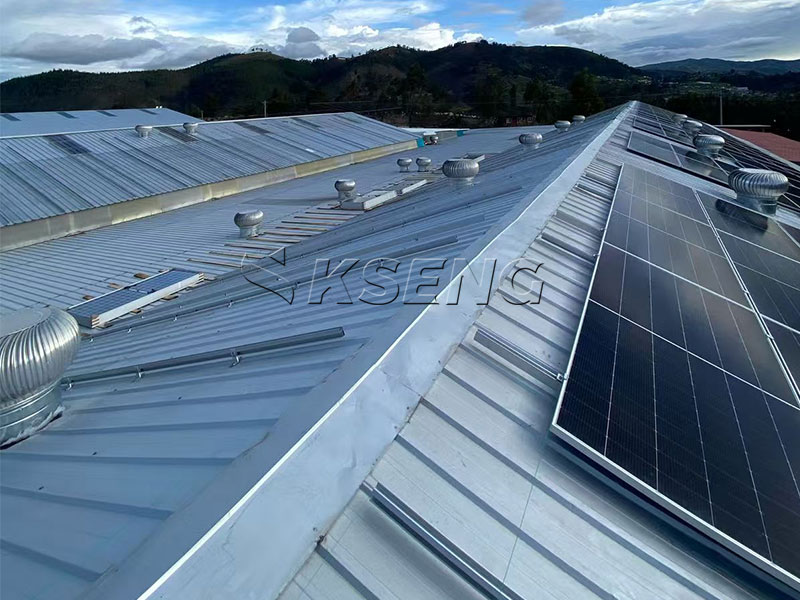

Fixing Method: Special aluminum/steel clamps directly grip the standing seam or corrugated ribs, no drilling or welding required.
Material: 6005‑T6 aluminum alloy (lightweight, high strength, corrosion‑resistant) or hot‑dip galvanized steel.
Key Advantages:
Waterproof Guarantee: No damage to the roof’s waterproof layer, eliminating leakage risks.
Easy Installation: Modular design, fast assembly, reducing labor costs by 30%+.
High Compatibility: Fits mainstream metal roof profiles (standing seam, angle lock, corrugated).
Clamp Strength: Must withstand wind loads ≥55 m/s (120 mph) and snow loads ≥0.8 kN/㎡.
Roof Load: Metal roofs typically bear 0.8–1.5 kN/㎡; choose lightweight brackets (≤10 kg/㎡).
Corrosion Resistance: Anodized aluminum (15+ years lifespan) or zinc‑magnesium‑aluminum coated steel for coastal/high‑humidity areas.

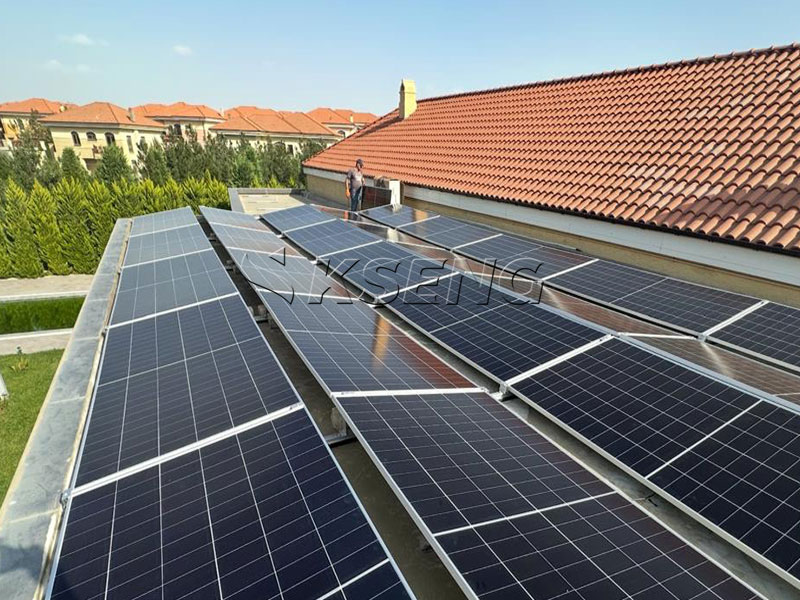

Fixing Method: Concrete blocks or steel weights press the bracket base, relying on gravity to resist wind uplift.
Structure: Hot‑dip galvanized steel (Q235) with adjustable tilt angles (10°–15°) for optimal sunlight absorption.
Advantages:
Roof Integrity: No drilling, protecting the waterproof layer; ideal for roofs with strict leakage prevention requirements.
Flexible Layout: Easily adjust array spacing and panel orientation.
Fixing Method: Chemical anchors or expansion bolts secure the bracket to the concrete slab.
Applicability: Regions with extreme weather (typhoons, heavy snow) requiring enhanced stability.
Key Note: Penetration points must be sealed with waterproof casing and sealant to prevent leakage.
Load Calculation: Design per local 50‑year wind/snow load standards; ballast weight calculated by wind uplift force.
Tilt Angle: 10°–20° (latitude‑dependent) to maximize annual power generation.
Drainage Reserve: Elevate brackets ≥10 cm to avoid ponding water and facilitate roof drainage.
Fixing Method: Special clamps lock onto color steel ribs (no drilling), with rubber gaskets to protect the coating and enhance friction.
Material: 6005‑T6 aluminum alloy (density 2.7 g/cm³, 1/3 weight of steel) to reduce roof load pressure.
Advantages:
Lightweight & Safe: Total system weight ≤8 kg/㎡, suitable for color steel roofs with low bearing capacity (0.8–1.2 kN/㎡).
Profile Compatibility: Fits common color steel specifications (760/820/900 mm rib spacing).
Corrosion Resistance: Anodized surface resists acid rain and UV aging, matching the roof’s 15–20 year lifespan.
Forbid Heavy Steel Brackets: Excess weight may cause roof deformation or collapse.
No Random Drilling: Penetration will damage the waterproof layer, leading to leakage and rust expansion.
Check Rib Spacing: Ensure clamp spacing ≤1.5 m to prevent local stress concentration.
Roof Structure: Prioritize clamp‑type for metal/color steel roofs; ballasted/anchored for concrete roofs.
Local Climate: High‑wind areas (≥55 m/s) choose reinforced structures; heavy‑snow regions use large‑span brackets to reduce snow accumulation.
Corrosion Environment: Coastal/high‑humidity areas select aluminum or zinc‑magnesium‑aluminum coatings; inland areas can use hot‑dip galvanized steel.
Cost‑Effectiveness: Aluminum brackets have higher upfront cost but lower maintenance; steel brackets are cheaper initially but require anti‑corrosion upkeep.
| Material | Weight | Corrosion Resistance | Cost | Lifespan | Best For |
|---|---|---|---|---|---|
| 6005‑T6 Aluminum | Light | Excellent (anodized) | Medium | 20–25 years | Metal/color steel roofs, coastal areas |
| Hot‑Dip Galvanized Steel | Heavy | Good (60–80 μm zinc) | Low | 15–20 years | Concrete roofs, inland areas |
| Zinc‑Magnesium‑Aluminum Steel | Medium | Superior (salt‑spray resistant) | Medium‑High | 25+ years | Harsh coastal/industrial areas |

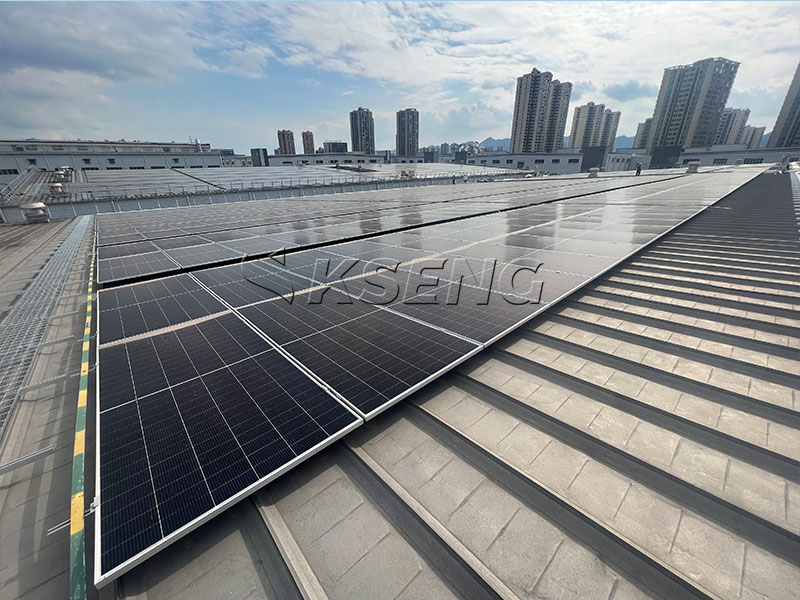

Full Compatibility: Custom clamps and brackets for metal, concrete, and color steel roofs, matching various profiles and load requirements.
High Quality Assurance: All products pass TÜV, UL, and ISO certifications, with strict quality control from raw materials to finished products.
Engineering Support: Professional team provides free load calculation, 3D design, and on‑site installation guidance to ensure project safety and efficiency.
Global Delivery: Fast production and logistics, supporting 5MW+ large‑scale commercial projects worldwide.
Selecting the right commercial rooftop PV mounting requires a comprehensive assessment of roof type, load‑bearing capacity, local climate, and budget. Metal roofs prioritize clamp‑type non‑penetration solutions; concrete roofs choose ballasted or anchored systems based on wind conditions; color steel roofs focus on lightweight aluminum clamps. As a trusted partner for global solar EPCs and investors, Kseng Energy delivers safe, durable, and cost‑effective mounting solutions to maximize your solar ROI.
