Asphalt shingle roof solar mounting system solar panel roof mounting bracket

Asphalt shingle roof solar racking system
Asphalt shingle roof solar racking system
Asphalt shingle roof solar racking system
Asphalt shingle roof solar racking system
Asphalt shingle roof solar racking system
Asphalt shingle roof solar racking system

Asphalt shingle roof solar mounting system solar panel roof mounting bracket

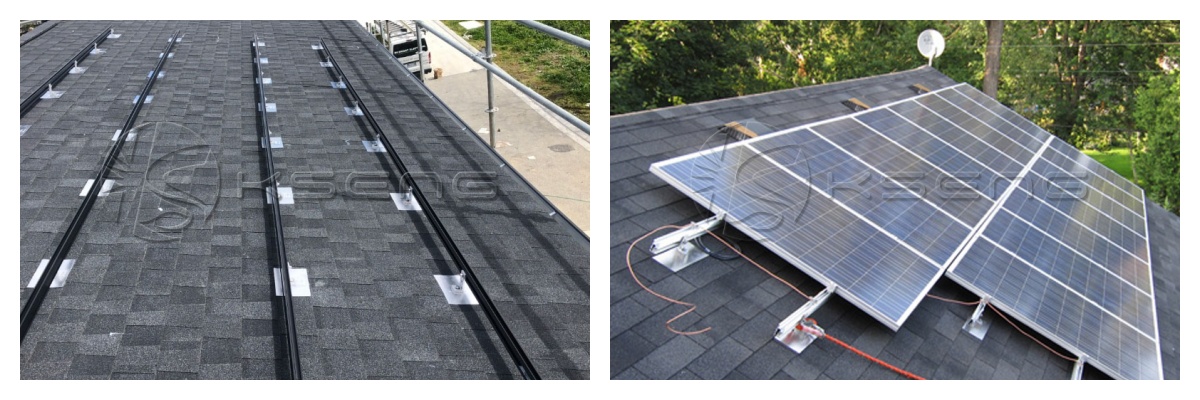

Asphalt shingle roof system is widely applied for commercial and residential roof project.The system is designed for asphalt shingle roof, which is very popular with customers.There are wide range of variety solar pv aceesories could be used to fasten framed or frame-less solar modules.Excellent quality made us more competitive in the markets.

  • Product name:

    Adjustable Roof Solar Mounting System

  • Brand:

    Kseng

  • Material:

    Aluminum 6005-T5 & SUS 304 Stainless Steel

  • Warranty:

    10 Years

  • Service Life:

    25 Years

  • Certification:

    ISO9001/CE

  • Standard:

    AS/NZS 1170

  • Wind Load:

    60M/S

  • Snow Load:

    1.4KN/M2
Inquire Now

Products Description

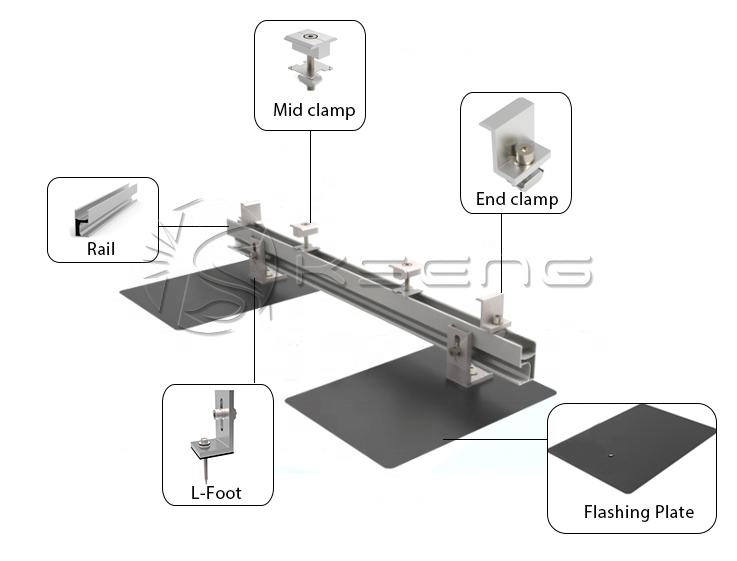

1.Asphalt tile roof solar mounting system flashing with L feet series.


The solar roof mounting system is designed for asphalt single roof, the flashing plate with raised tapered hole, together with rubber pad can perfectly cooperate with L feet, which has good waterproof function.

The solar roof mounting flashing with L feet series is equipped with wooden screw connection options to achieve maximum versatility and can be used with all common aluminum alloy rails.

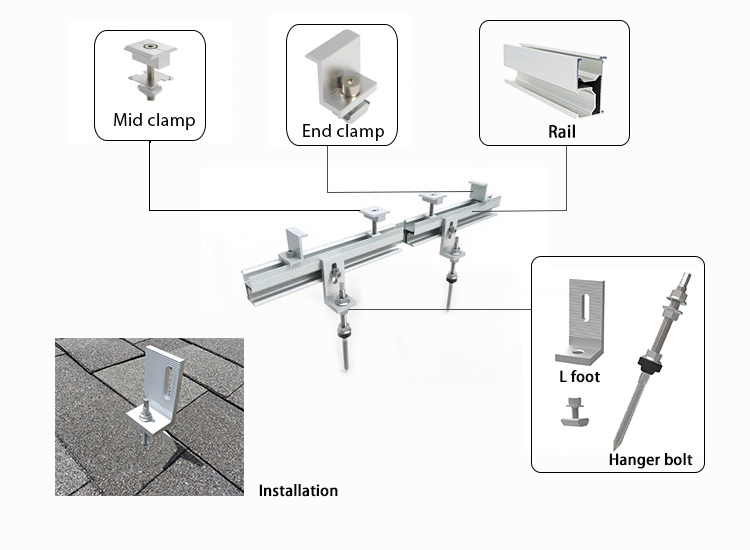

2.Asphalt tile roof solar mounting system L feet with hanger bolt series:
The series adopt L feet/ hanger bolt/EPDM/R006 solar rail/ mid clamp/ end clamp, which can realize ultra-fast single-step bolt installation, and has eficient and economical waterproof performance.
.High-grade anodized aluminum.
.It can be used flexibly with the L foot to withstand different wind and snow loads.
.Provide surface treatment, silver anodized or black anodized.
.Suitable for most rails.

Product Name
solar panel mounting bracket set grid mounting home power solar system for solar panel mounting system sloope roof
Brand Name
KSENG
Material
Aluminum & Stainless Steel
Standard
AS/NZS 1170
Wind Load
216 KM/H =60 M/S
Snow Load
1.4 KN/M²
Applicable Module
Framed or Frameless
Module Orientation
Portrait or Landscape
Surface Treatment
Anodized
Certificate
ISO9001 , CE,  etc
Application
Solar Panel Mounting System
Installation Site
Roof
Dimensions
Customized
Lengths
Customized
Warranty
10 Years Warranty, 20 Years Service Life
Work Time
24
Supply Ability
10000kw/month
Keywords
Roof Mounting System
